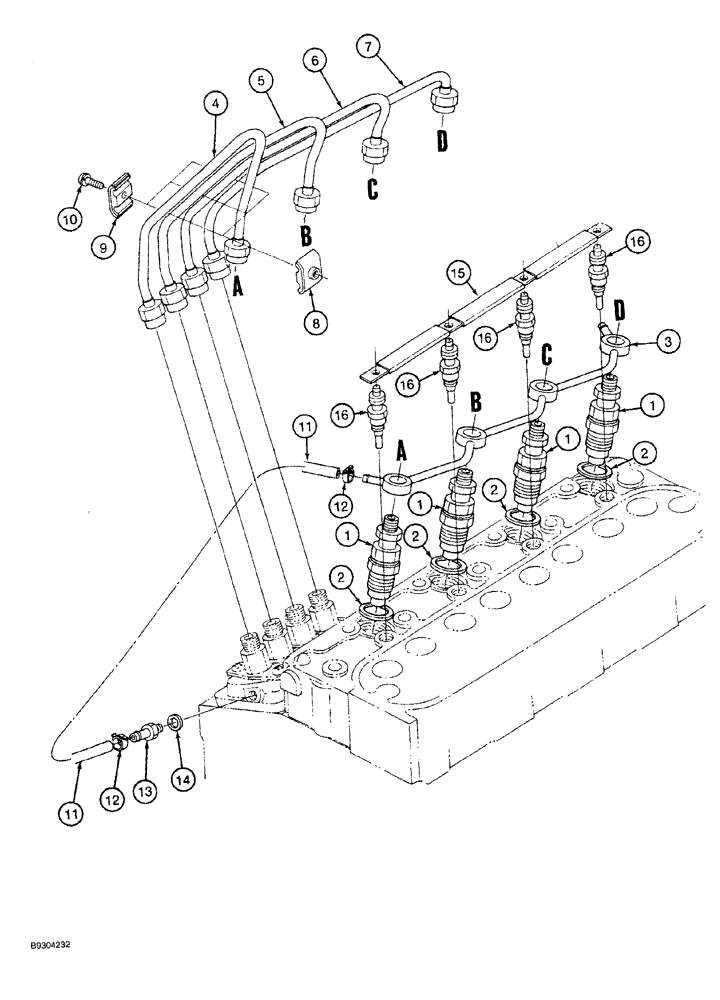

Запчасти Case MAXI-SNEAKER (03-006) - FUEL INJECTION SYSTEM, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

1

125447A1

FUEL SYSTEM INJECTOR

fuel, parts list Figure 03-010

4шт.

2

125448A1

GASKET

nozzle, fuel injector

4шт.

3

125443A1

MANIFOLD

fuel drain

1шт.

4

125449A1

PIPE

fuel injector No. 1

1шт.

Prior to engine S.N. 489916

1шт.

4

125449A2

RIGID TUBE

fuel injector No. 1

1шт.

Engine S.N. 489916 and after

1шт.

5

125451A1

PIPE

fuel injector No. 2

1шт.

Prior to engine S.N. 489916

1шт.

5

125451A2

RIGID TUBE

fuel injector No. 2

1шт.

Engine S.N. 489916 and after

1шт.

6

125453A1

PIPE

fuel injector No. 3

1шт.

Prior to engine S.N. 489916

1шт.

6

125453A2

RIGID TUBE

fuel injector No. 3

1шт.

Engine S.N. 489916 and after

1шт.

7

125455A1

PIPE

fuel injector No. 4

1шт.

Prior to engine S.N. 489916

1шт.

7

125455A2

PIPE

fuel injector No. 4

1шт.

Engine S.N. 489916 and after

1шт.

8

1959393C1

HOSE CLIP

fuel tube

3шт.

9

1959394C1

HOSE CLIP

fuel tube

3шт.

10

1959395C1

SCREW

hex, captive washer, special, with washer, special

3шт.

11

125445A1

PIPE

overflow, Includes: Ref. 12

1шт.

12

125446A1

HOSE CLAMP

overflow tube

2шт.

13

125444A1

SCREEN

ADAPTER overflow tube

1шт.

14

1959403C1

GASKET

special, 6 x 10 x 1 mm

1шт.

15

125458A1

ROPE

STRIP glow plug

1шт.

16

125456A1

GLOW PLUG

4шт.

Prior to engine S.N. 489916

1шт.

16

197424A1

GLOW PLUG

4шт.

Engine S.N. 489916 and after

1шт.

17

197423A1

SEAL

SEAL heat, if used, not shown

4шт.
