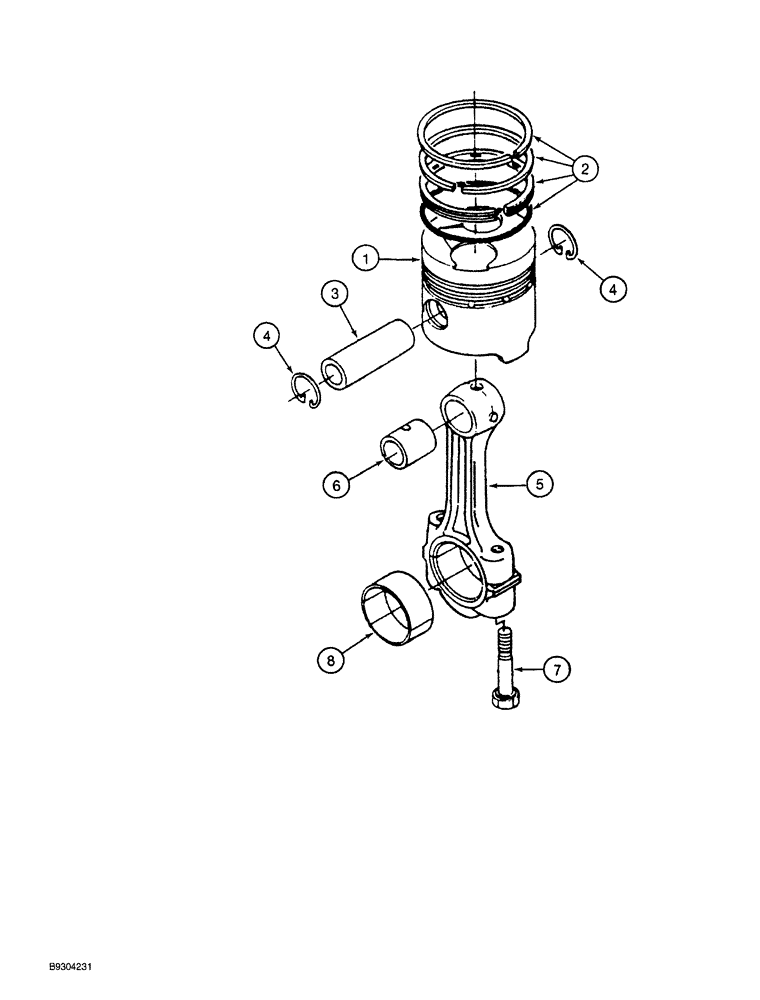

Запчасти Case MAXI-SNEAKER (02-038) - PISTONS AND CONNECTING RODS, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125350A1

PISTON

standard

4шт.

Prior to engine S.N. 489916

1шт.

1

125350A2

PISTON

standard

4шт.

Engine S.N. 489916 and after

1шт.

1

125351A1

PISTON

0.5 mm oversize

4шт.

Prior to engine S.N. 489916

1шт.

1

125351A2

PISTON

0.5 mm oversize

4шт.

Engine S.N. 489916 and after

1шт.

2

125352A1

PISTON RINGS KIT

set, standard

4шт.

2

125353A1

SET OF RINGS

set, 0.5 mm oversize

4шт.

3

125354A1

PIN

piston

4шт.

4

125355A1

CIRCLIP

RING snap, piston pin

8шт.

125356A1

LINK CONROD

ROD ASSEMBLY connecting, Includes: Ref. 5 - 8

4шт.

5

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

6

125357A1

SPECIAL TOOL

connecting rod

1шт.

7

125358A1

BOLT

connecting rod

2шт.

8

125359A1

BEARING ASSY

crankshaft pin, standard

1шт.

8

125360A1

BEARING ASSY

crankshaft pin, 0.2 mm undersize

1шт.

8

125361A1

BEARING ASSY

crankshaft pin, 0.4 mm undersize

1шт.
