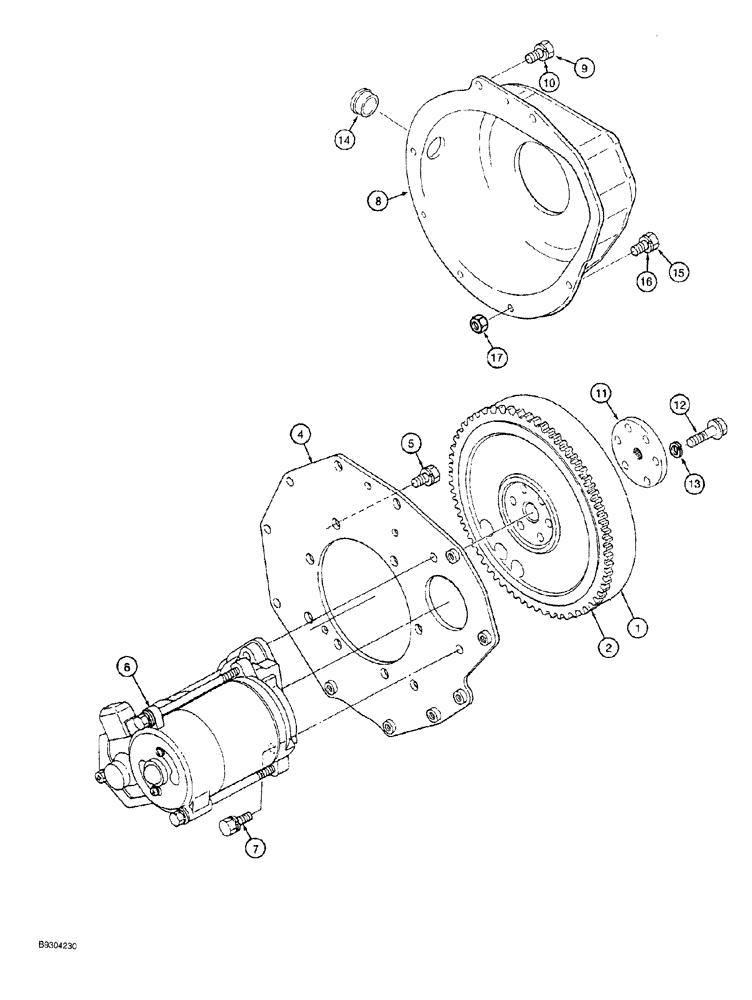

Запчасти Case MAXI-SNEAKER (02-036) - FLYWHEEL AND STARTER MOTOR MOUNTING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125438A1

ENGINE FLYWHEEL

ASSEMBLY crankshaft, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

4

125440A1

PLATE

flywheel cover

1шт.

6

125442A1R

REMAN-STARTER

Remanufactured STARTER 12 volt, OSGR - For N.A. Only

1шт.

5

1959379C1

BOLT

hex, with lock washer, 10 - 1.25 x 25 mm, flywheel plate

8шт.

6

125442A1C

CORE-STARTER

Return Number, STARTER 12 volt, OSGR - For N.A. Only

1шт.

6

125442A1

STARTER MOTOR

ASSEMBLY engine, see Figure 04-004

1шт.

7

126393A1

CAPTIVE WASHER SCREW

BOLT hex, with lockwasher, starter mounting

2шт.

7a

125439A1

BOLT

special, mounting, flywheel to crankshaft, not shown

6шт.

8

110654A2

HOUSING

flywheel

1шт.

Not part of the engine assembly

1шт.

9

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

Not part of the engine assembly

1шт.

10

892-11010

LOCK WASHER,M10

2шт.

Not part of the engine assembly

1шт.

11

110548A1

FLANGE

PLATE drive

1шт.

Not part of the engine assembly

1шт.

12

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

Not part of the engine assembly

1шт.

13

492-11010

LOCK WASHER,#10

6шт.

Not part of the engine assembly

1шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

Not part of the engine assembly

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

Not part of the engine assembly

1шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

Not part of the engine assembly

1шт.

17

825-1408

NUT,M8, Cl 8

1шт.

Not part of the engine assembly

1шт.
