(02-034) - MAIN BEARING HOUSING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (02-034) - MAIN BEARING HOUSING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

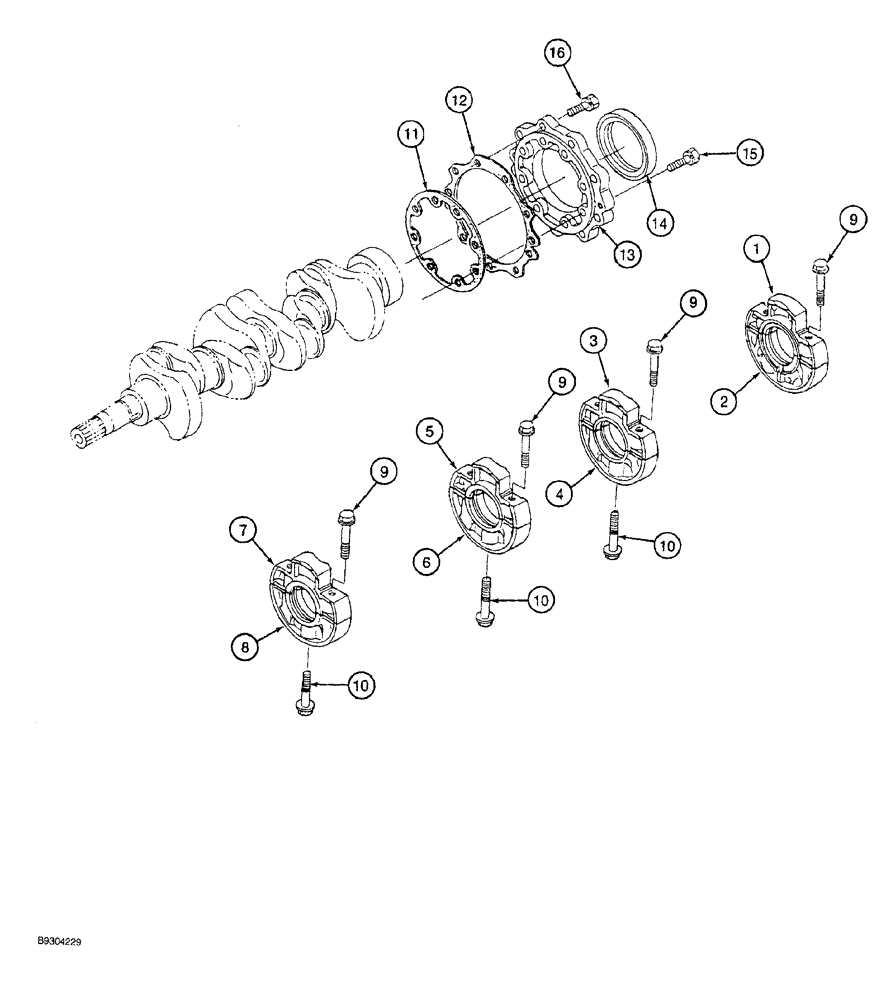

Схема запчастей Case MAXI-SNEAKER - (02-034) - MAIN BEARING HOUSING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE
5
9
10
6
9
1
10
15
12
7
10
9
9
14
3
2
16
11
8
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

125292A1

CYLINDER END CAP

HOUSING ASSEMBLY main bearing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

125301A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSEMBLY main bearing 3, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

125300A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSEMBLY main bearing 2, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

125298A1

HEATED GLASS

HOUSING ASSEMBLY main bearing 1, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING half

1шт.

9

125293A1

BOLT

bearing housing, upper

8шт.

10

125299A1

BOLT

bearing housing, lower

3шт.

11

125294A1

GASKET

bearing housing

1шт.

12

125297A1

OIL SEAL

cover, main bearing housing

1шт.

13

125295A1

COVER

COVER bearing housing

1шт.

14

125296A1

OIL SEAL

oil

1шт.

15

1959216C1

BOLT

hex, with lock washer

8шт.

16

1959215C1

BOLT

hex, with lock washer, bearing housing cover

9шт.
