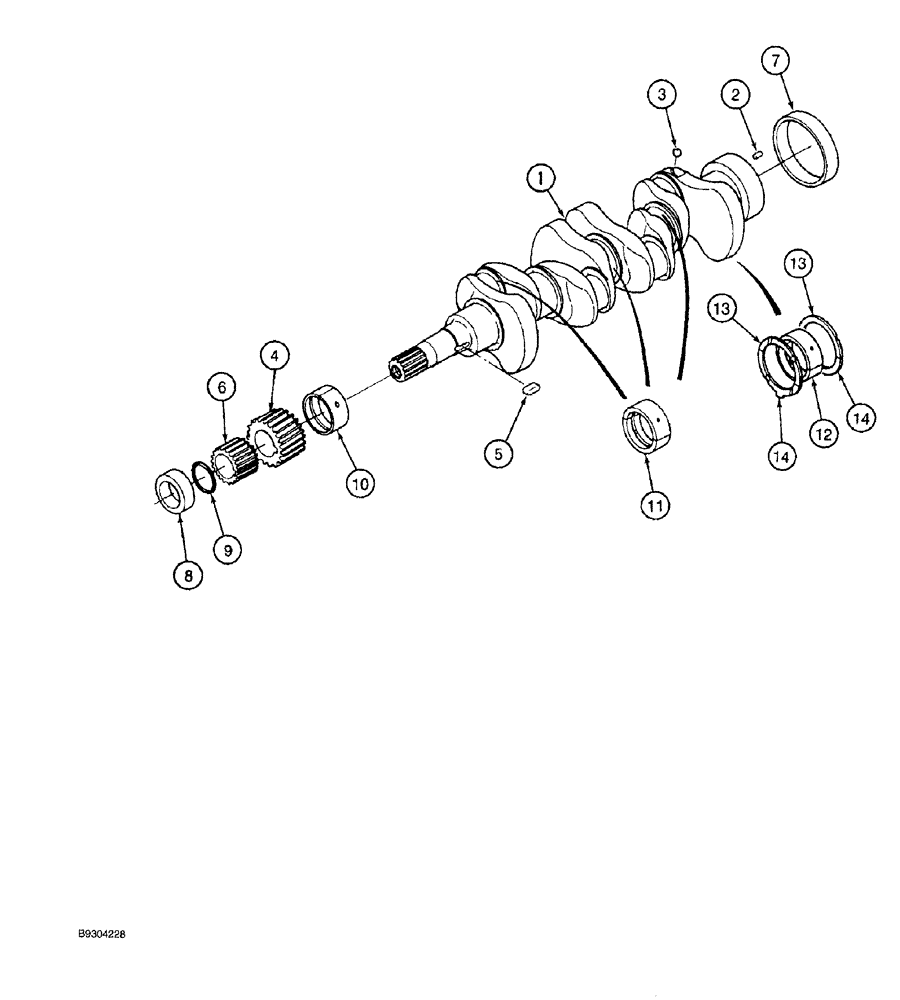

Запчасти Case MAXI-SNEAKER (02-032) - CRANKSHAFT, KUBUTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

200304A1

CRANKSHAFT

ASSEMBLY engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

2

125235A1

PIN

dowel

1шт.

3

125410A1

BALL

crankshaft

1шт.

4

125411A1

GEAR

GEAR crankshaft

1шт.

5

125412A1

KEY

crankshaft

1шт.

6

125414A1

PINION

GEAR oil pump drive

1шт.

7

125415A1

SLEEVE

SLEEVE crankshaft

1шт.

8

125416A1

COLLAR

COLLAR crankshaft

1шт.

9

125417A1

O-RING

crankshaft

1шт.

10

125418A1

CRANKSHAFT BEARING

main, No. 1, standard

1шт.

10

125420A1

CRANKSHAFT BEARING

main, No. 1, 0.20 mm undersize

1шт.

10

125421A1

CRANKSHAFT BEARING

main, No. 1, 0.40 mm undersize

1шт.

11

125422A1

CRANKSHAFT BEARING

main, No. 2, standard

3шт.

11

125423A1

CRANKSHAFT BEARING

main, No. 2, 0.20 mm undersize

3шт.

11

125424A1

CRANKSHAFT BEARING

main, No. 2, 0.40 mm undersize

3шт.

12

125427A1

CRANKSHAFT BEARING

main, No. 3, standard

1шт.

12

125429A1

CRANKSHAFT BEARING

main, No. 3, 0.20 mm undersize

1шт.

12

125430A1

CRANKSHAFT BEARING

main, No. 3, 0.40 mm undersize

1шт.

13

125431A1

THRUST BEARING

PLATE thrust, No. 1 bearing, standard

2шт.

13

125432A1

THRUST BEARING

PLATE thrust, No. 1 bearing, 0.2 mm oversize

2шт.

13

125433A1

THRUST BEARING

PLATE thrust, No. 1 bearing, 0.4 mm oversize

2шт.

14

125434A1

THRUST BEARING

PLATE thrust, No. 2 bearing, standard

2шт.

14

125435A1

THRUST BEARING

PLATE thrust, No. 2 bearing, 0.2 mm oversize

2шт.

14

125437A1

THRUST BEARING

PLATE thrust, No. 2 bearing, 0.4 mm oversize

2шт.
