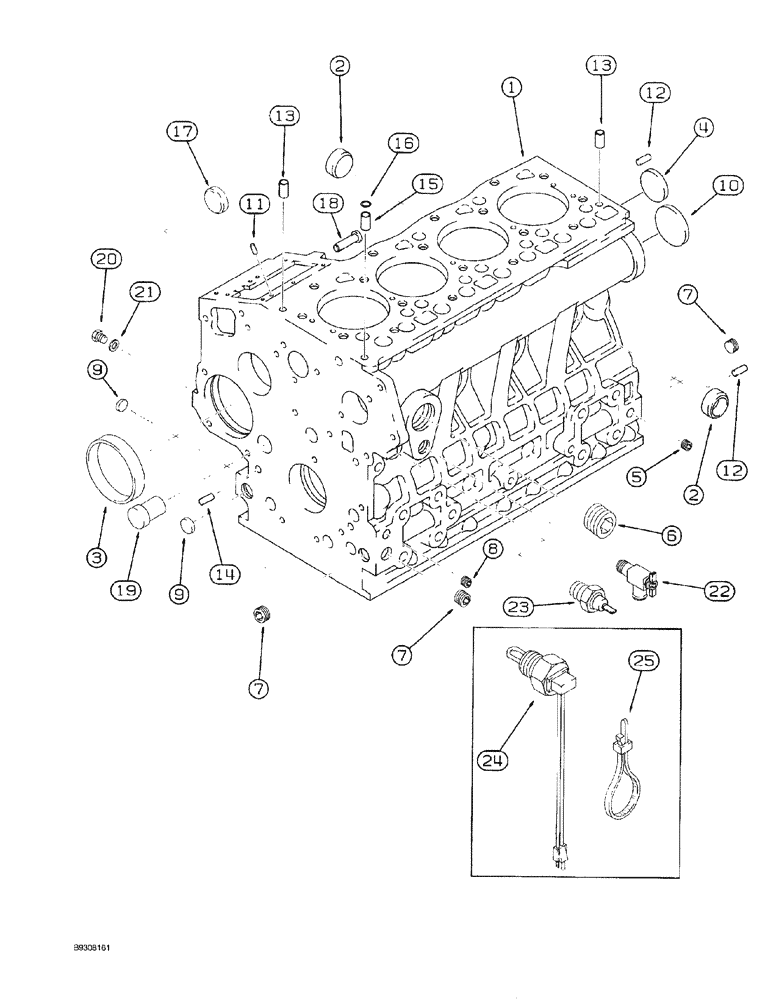

Запчасти Case MAXI-SNEAKER (02-030) - CYLINDER BLOCK ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

200262A1

CYLINDER BLOCK

BLOCK ASSEMBLY cylinder, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

2

125228A1

PLUG

CAP sealing

6шт.

3

125243A1

BUSHING

governor gear

1шт.

4

1959125C1

PLUG

CAP sealing

1шт.

5

1959126C1

PLUG

hex socket

4шт.

6

200266A1

PLUG

hex socket

1шт.

7

125231A1

PLUG

hex socket

3шт.

8

1959127C1

PLUG

hex socket

2шт.

9

200269A1

PLUG

expansion

3шт.

10

125233A1

PLUG

expansion

1шт.

11

125235A1

PIN

dowel

2шт.

12

1959130C1

PIN

dowel

2шт.

13

125237A1

PIN

dowel

2шт.

14

1959131C1

PIN

dowel

2шт.

15

125240A1

PIN

PIN dowel

1шт.

16

1959135C1

O-RING,6.57mm ID x 2.325mm Width

sealing

1шт.

17

125241A1

PLUG

expansion

1шт.

18

1959190C1

PIN

clevis

1шт.

19

125242A1

PLUG

sealing

1шт.

20

125176A1

PLUG

sealing

1шт.

21

1959329C1

WASHER

GASKET plug

1шт.

22

125246A1

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE

1шт.

23

1959159C1

PRESSURE SWITCH

pressure, engine oil

1шт.

24

117637A1

HEATER

engine block

1шт.

Not included with engine assemblies

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, harness, 15 inch

1шт.

Not included with engine assemblies

1шт.

111088A1

ENGINE

ASSEMBLY, Kubota V1505, complete

1шт.

Prior to engine S.N. 489916

1шт.

111088A2

ENGINE

ASSEMBLY, Kubota V1505-B, complete

1шт.

Engine S.N. 489916 and after

1шт.
