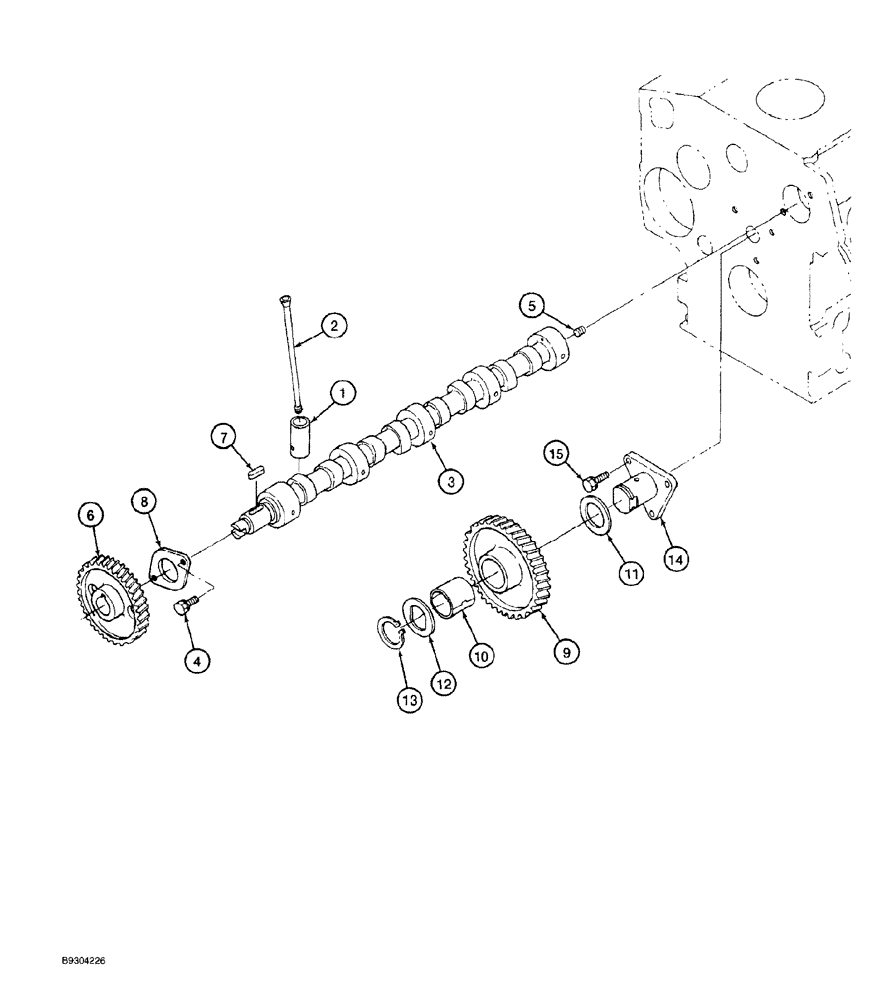

Запчасти Case MAXI-SNEAKER (02-028) - CAMSHAFT, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

1

1959299C1

BUSHING

push rod

8шт.

2

125336A1

SET OF PARTS

ROD push

8шт.

125337A1

CRANKSHAFT

ASSEMBLY engine, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

CAMSHAFT engine

1шт.

4

126132A1

CAPTIVE WASHER SCREW,Hex

BOLT hex, with lock washer

2шт.

5

125339A1

SCREEN

set

1шт.

6

125341A1

GEAR

GEAR camshaft

1шт.

7

125342A1

KEY

feather

1шт.

8

125343A1

STOP

PLATE camshaft

1шт.

125344A1

COMPACTOR WHEEL

GEAR ASSEMBLY idler, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR idler

1шт.

10

125345A1

SPECIAL TOOL

idler gear

1шт.

11

125346A1

COLLAR

COLLAR idler gear, No 1 cylinder

1шт.

12

125347A1

COLLAR

COLLAR idler gear, No 2 cylinder

1шт.

13

125348A1

CIRCLIP

external

1шт.

14

125349A1

SPINDLE

idler gear

1шт.

15

1959319C1

BOLT

hex, special

3шт.
