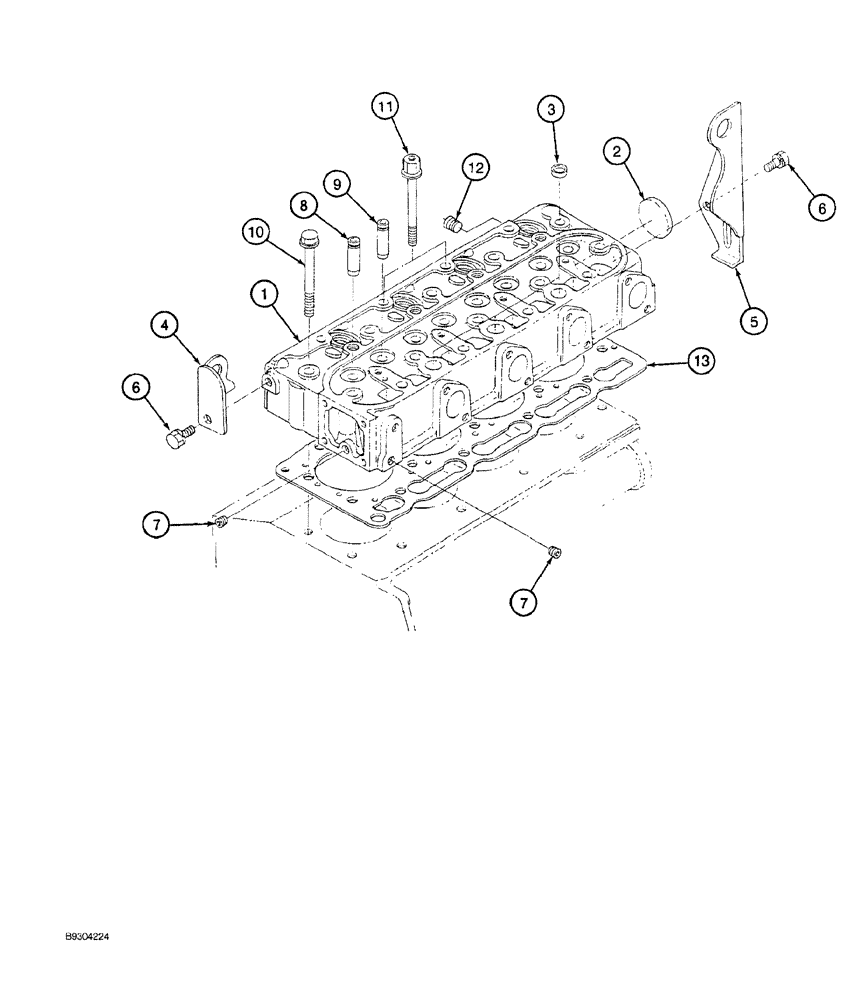

Запчасти Case MAXI-SNEAKER (02-024) - CYLINDER HEAD, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

111088A1

ENGINE

ASSEMBLY, KUBOTA V1505, see Figures 02-012 - 02-038 and Figures 03-006 - 03-020, not shown

1шт.

Prior to engine S.N. 489916

1шт.

111088A2

ENGINE

ASSEMBLY, Kubota V1505-B, see Figures 02-012 - 02-038 and Figures 03-006 - 03-020, not shown

1шт.

Engine S.N. 489916 and after

1шт.

1

125257A1

HEAD (CYLINDER)

ASSEMBLY, no longer available, order the following: 197420A1 cylinder head assembly (1), 125447A2 fuel injector assembly (4), 197423A1 heat seal (4) and 197424A1 glow plug (4), Includes: Ref. 2 and 3

1шт.

Prior to engine S.N. 489916

1шт.

1

197420A1

HEAD (CYLINDER)

ASSEMBLY, Includes: Ref. 2 and 3, also includes items 7 - 9

1шт.

Engine S.N. 489916 and after

1шт.

2

1959124C1

PLUG

CAP sealing, included with 125257A1 and 197420A1 head assemblies

1шт.

3

1959154C1

PLUG

CAP sealing, included with 125257A1 and 197420A1 head assemblies

3шт.

4

125255A1

SUPPORT

BRACKET lifting

1шт.

5

125256A1

SUPPORT

BRACKET lifting

1шт.

6

126123A1

CAPTIVE WASHER SCREW

hex, with lock washer, lifting brackets

2шт.

7

1959126C1

PLUG

hex socket

2шт.

Part of P/N 197420A1 Head Assembly

1шт.

8

125258A1

GUIDE

intake valve

4шт.

Part of P/N 197420A1 Head Assembly

1шт.

9

125259A1

GUIDE

exhaust valve

4шт.

Part of P/N 197420A1 Head Assembly

1шт.

10

125260A1

BOLT,Cyl Hd

cylinder head

16шт.

11

125261A1

BOLT,Cyl Hd

cylinder head

2шт.

12

125262A1

PLUG

cylinder head

1шт.

13

125263A1

CYLINDER HEAD GASKET

cylinder head

1шт.
