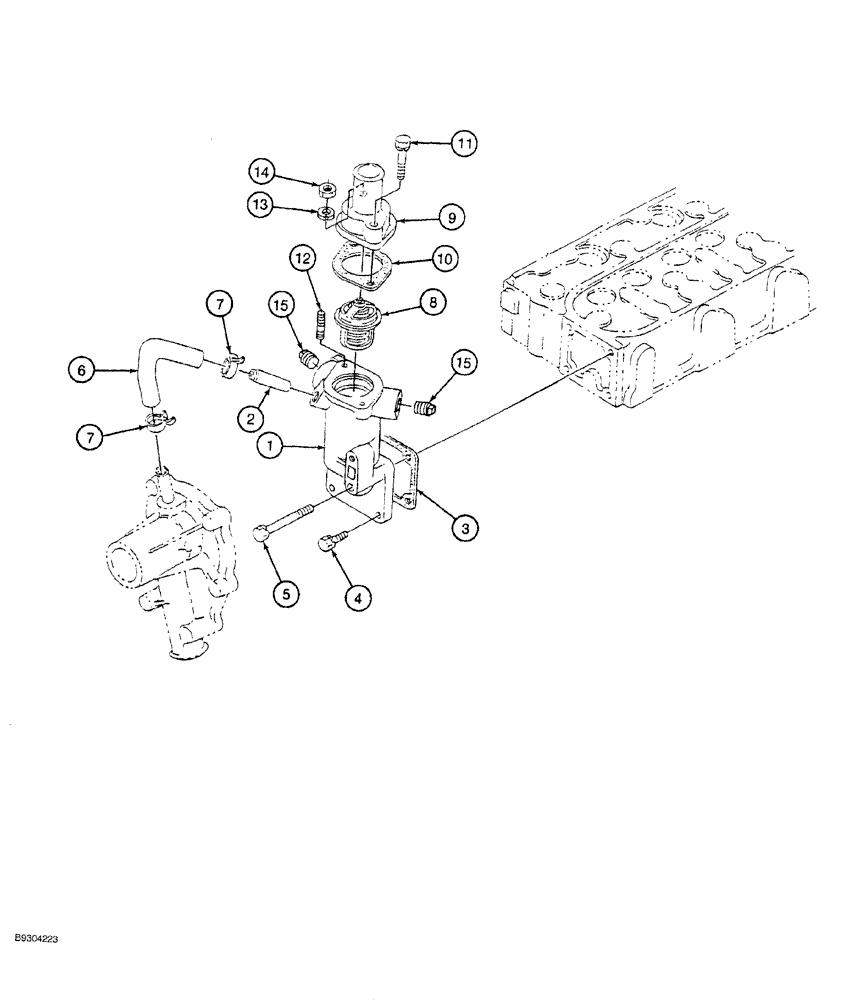

Запчасти Case MAXI-SNEAKER (02-022) - THERMOSTAT HOUSING AND TUBES, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125571A1

BOX

HOUSING thermostat, Includes: Ref. 2

1шт.

Prior to engine S.N. 110327

1шт.

1

382871A1

SHIN

HOUSING thermostat, Includes: Ref. 2

1шт.

Engine S.N. 110327 and after

1шт.

2

125289A1

RIGID TUBE

return, water

1шт.

3

200070A1

GASKET

housing, thermostat

1шт.

4

1959319C1

BOLT

hex, special, thermostat housing to cylinder head

3шт.

5

126127A1

CAPTIVE WASHER SCREW

hex, with lock washer

1шт.

6

125574A1

RIGID TUBE

return, water, thermostat housing to water pump

1шт.

7

125575A1

BAND

tube, water return

2шт.

8

125576A1

THERMOSTAT

engine coolant

1шт.

Prior to engine S.N. 110327

1шт.

8

127128A1

THERMOSTAT

THERMOSTAT water, engine coolant

1шт.

Engine S.N. 110327 and after

1шт.

9

125577A1

COVER

thermostat

1шт.

Prior to engine S.N. 110327

1шт.

9

382873A1

COVER

thermostat

1шт.

Engine S.N. 110327 and after

1шт.

10

200071A1

GASKET

cover, thermostat

1шт.

Prior to engine S.N. 110327

1шт.

10

127130A1

GASKET

cover, thermostat

1шт.

Engine S.N. 110327 and after

1шт.

11

200692A1

BOLT

hex, with lock washer

1шт.

Prior to engine S.N. 110327

1шт.

11

1959494C1

BOLT

hex washer head

1шт.

Engine S.N. 110327 and after

1шт.

12

221649A1

STUD

thermostat cover

1шт.

13

221638A1

SPRING WASHER

spring, special

1шт.

14

1959205C1

NUT

hex, special

1шт.

15

1959447C1

PLUG

square head, thermostat housing

2шт.
