(02-020) - CYLINDER HEAD COVER, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (02-020) - CYLINDER HEAD COVER, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

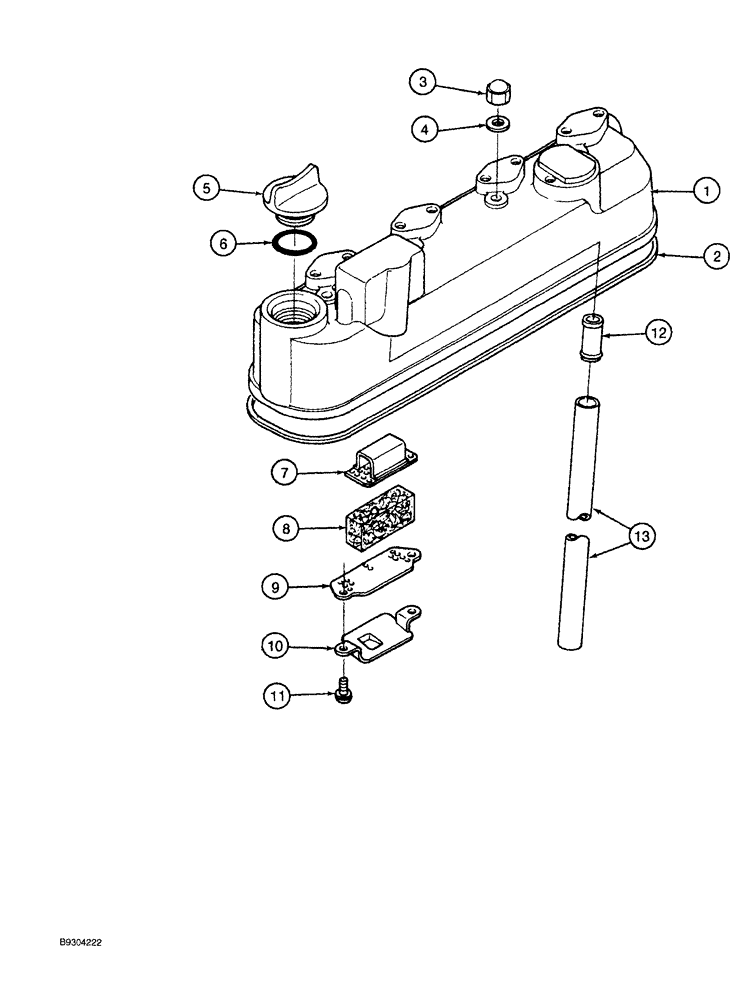

Схема запчастей Case MAXI-SNEAKER - (02-020) - CYLINDER HEAD COVER, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE
6
3
13
9
11
4
10
7
5
8
1
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

125302A1

COVER

cylinder head

1шт.

2

125303A1

GASKET

cover, cylinder head

1шт.

3

125311A1

NUT

cap

4шт.

4

1959234C1

WASHER

GASKET cap nut, 7.3 x 12 x 15 mm

4шт.

5

200395A1

PLUG

CAP oil filler

1шт.

6

1959239C1

O-RING

oil filler cap

1шт.

7

125308A1

IDENTITY PLATE

breather element, upper

1шт.

8

125309A1

ELEVATOR

breather

1шт.

9

125305A1

IDENTITY PLATE

breather element, lower

1шт.

10

125310A1

COVER PLATE

SHIELD breather

1шт.

11

1959249C1

SCREW

breather, special, with washer

2шт.

12

125304A1

HYD CONNECTOR

CONNECTOR, cylinder head cover to breather tube

1шт.

13

125313A1

RIGID TUBE

breather

1шт.
