(02-018) - OIL PAN, KUBOTA V1505 ENGINE, KUBOTA V1505--B ENGINE

Запчасти Case MAXI-SNEAKER (02-018) - OIL PAN, KUBOTA V1505 ENGINE, KUBOTA V1505--B ENGINE (02) - ENGINE

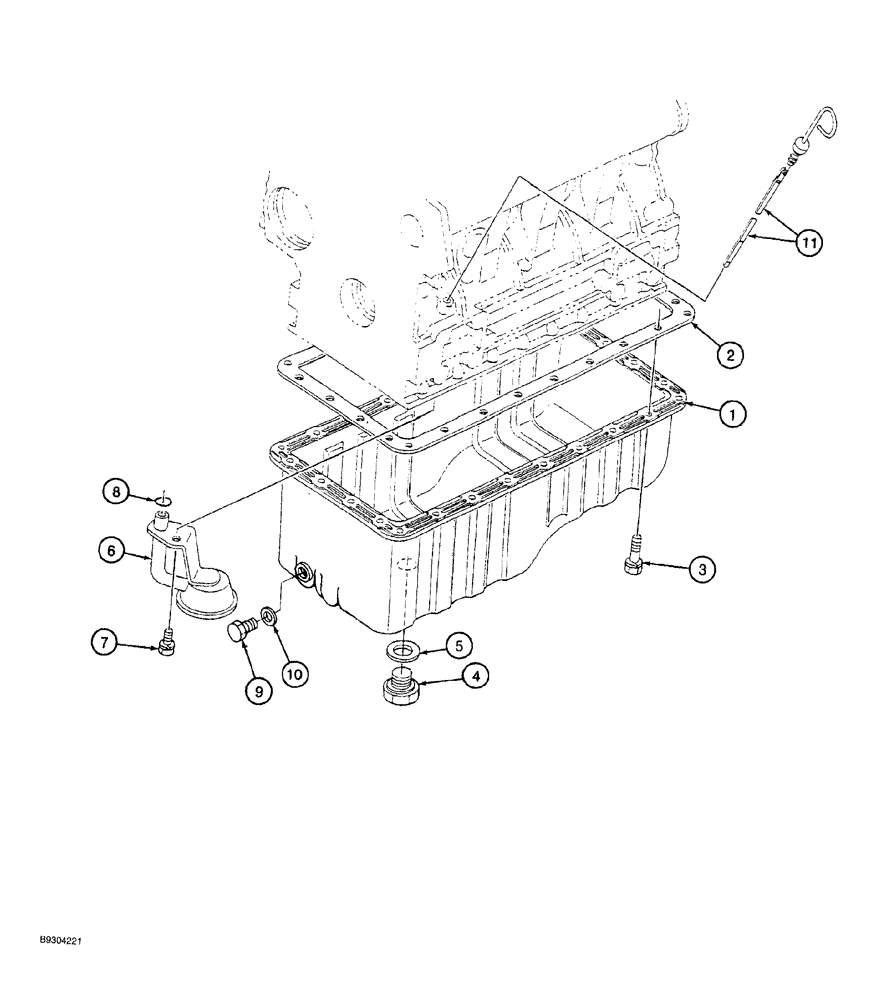

Схема запчастей Case MAXI-SNEAKER - (02-018) - OIL PAN, KUBOTA V1505 ENGINE, KUBOTA V1505--B ENGINE (02) - ENGINE
6
9
5
11
8
3
1
4
2
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

125247A1

ENGINE OIL PAN

1шт.

2

125248A1

OIL PAN GASKET SET

oil pan

1шт.

3

1959477C1

BOLT

hex, with lock washer

26шт.

4

200287A1

PLUG

drain

1шт.

5

125250A1

GASKET

GASKET drain plug

1шт.

6

125251A1

FILTER, ENGINE OIL

FILTER, OIL

1шт.

7

1959164C1

BOLT

special

1шт.

8

125200A1

O-RING

oil filter

1шт.

9

1959149C1

PLUG

drain

1шт.

10

1510933660

GASKET

WASHER flat, special, replaces 1959150C1

1шт.

11

125253A1

DIPSTICK

engine oil level

1шт.
