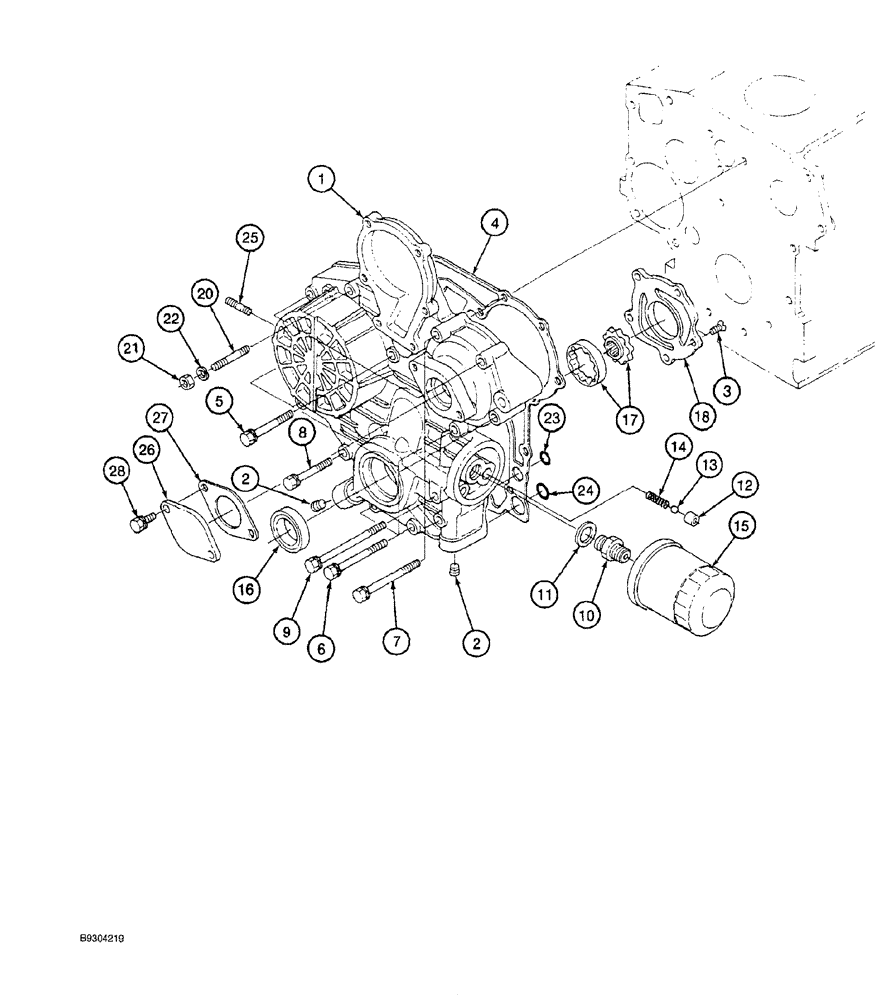

Запчасти Case MAXI-SNEAKER (02-014) - FRONT GEAR COVER, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

COVER gear, front

1шт.

A component of 221646A1 front gear cover assembly

1шт.

2

200400A1

PLUG

cover

2шт.

A component of 221646A1 front gear cover assembly

1шт.

3

125274A1

SCREW,Sl Flat Hd

flat head slotted, special

5шт.

A component of 221646A1 front gear cover assembly

1шт.

4

200065A1

GASKET

front gear cover seal; Replaces 125276A1 seal

1шт.

5

126125A1

CAPTIVE WASHER SCREW

with lock washer

3шт.

6

126126A1

BOLT,Hex

hex, with lock washer

6шт.

7

126127A1

CAPTIVE WASHER SCREW

hex, with lock washer

2шт.

8

125277A1

BOLT,Hex

hex, with lock washer

1шт.

9

125278A1

BOLT,Hex

hex, with lock washer

1шт.

10

1959196C1

FITTING

ADAPTER filter

1шт.

A component of 221646A1 front gear cover assembly

1шт.

11

126124A1

WASHER

flat, special

1шт.

A component of 221646A1 front gear cover assembly

1шт.

12

125269A1

SEAT/SLOT

valve

1шт.

A component of 221646A1 front gear cover assembly

1шт.

13

125270A1

BALL

seat

1шт.

A component of 221646A1 front gear cover assembly

1шт.

14

125268A1

SPRING

valve

1шт.

A component of 221646A1 front gear cover assembly

1шт.

15

125282A1

ENGINE OIL FILTER

engine oil cartridge

1шт.

16

125280A1

OIL SEAL

oil

1шт.

17

125271A1

HYDRAULIC PUMP

oil pump, two parts

1шт.

A component of 221646A1 front gear cover assembly

1шт.

18

125273A1

COVER

oil pump

1шт.

A component of 221646A1 front gear cover assembly

1шт.

20

125279A1

STUD

STUD, front gear cover

1шт.

21

1959205C1

NUT

hex, special

1шт.

22

221638A1

SPRING WASHER

spring

1шт.

23

125281A1

O-RING

front gear cover

2шт.

24

1959201C1

O-RING

front gear cover

2шт.

25

1959319C1

BOLT

hex, special

2шт.

26

125283A1

PLATE

PLATE access, front gear cover

1шт.

27

200072A1

GASKET

access cover plate

1шт.

28

1959319C1

BOLT

hex, special, access cover plate

2шт.
