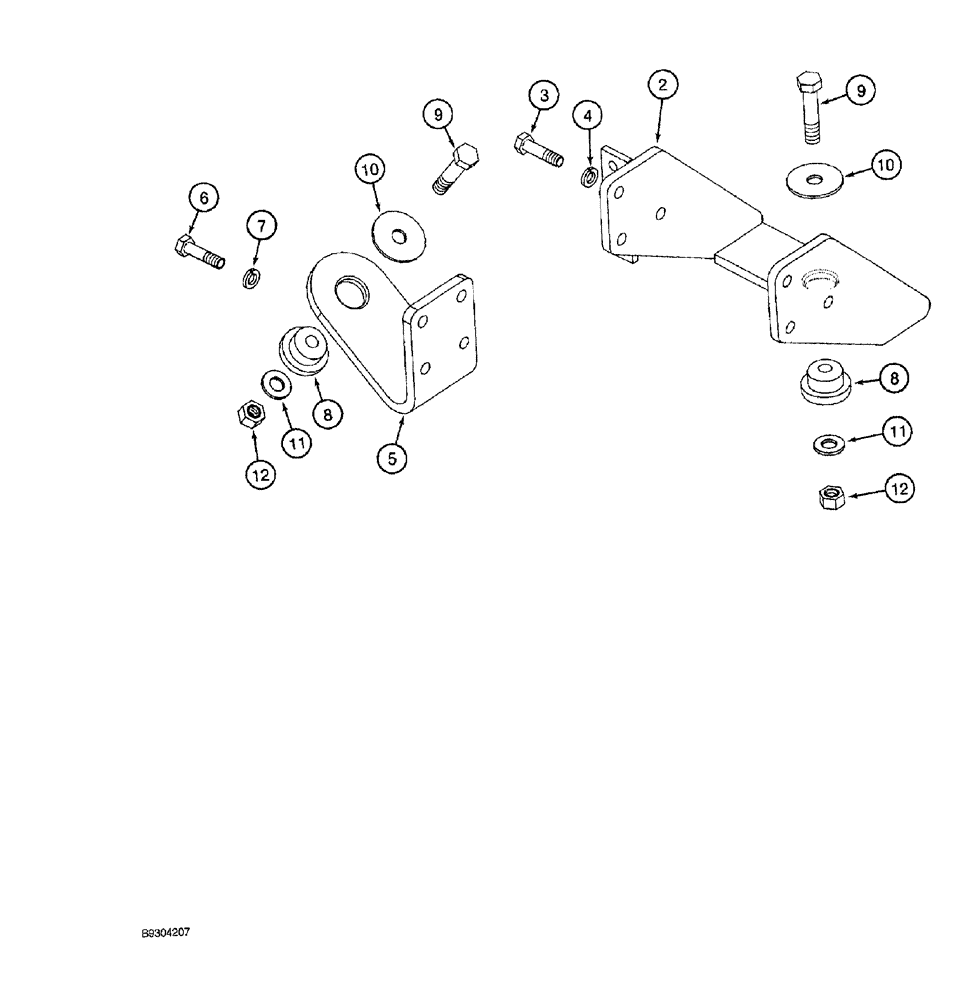

Запчасти Case MAXI-SNEAKER (02-010) - ENGINE MOUNTING (02) - ENGINE

1

111088A1

ENGINE

ASSEMBLY Kubota V1505, see Figures 02-012 - 02-038 and Figures 03-006 - 03-020, not shown, Serial Range: -489916

1шт.

1

111088A2

ENGINE

ASSEMBLY Kubota V1505-B, see Figures 02-012 - 02-038 and Figures 03-006 - 03-020, not shown, Start Serial: 489916

1шт.

2

110649A1

SUPPORT

MOUNT engine, front

1шт.

3

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

4

892-11010

LOCK WASHER,M10

6шт.

5

179370A1

SUPPORT

MOUNT engine, rear

2шт.

6

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

7

892-11010

LOCK WASHER,M10

8шт.

8

H426395

MOUNTING PARTS

engine isolation

3шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

3шт.

10

B15606

WASHER

flat, special

3шт.

11

H274894

WASHER

flat, special

3шт.

12

232-4118

NUT,1/2"-13, GC

3шт.
