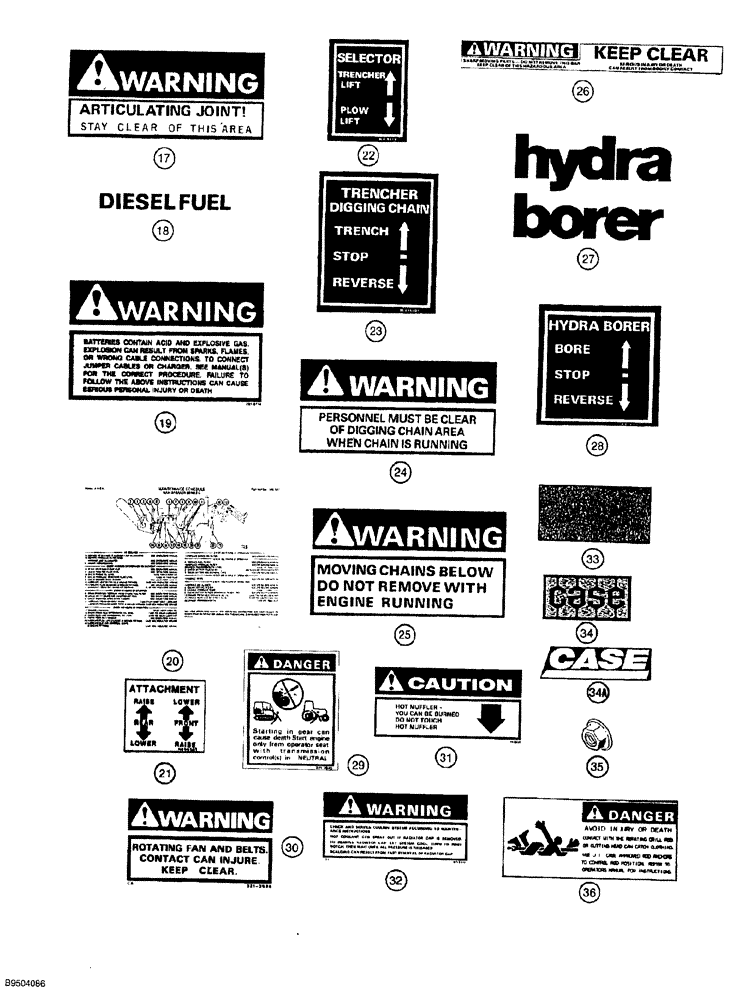

Запчасти Case MAXI-SNEAKER (09-066) - DECALS (09) - CHASSIS/ATTACHMENTS

17

321-3218

DECAL

Warning, articulation joint

2шт.

18

321-230

DECAL

diesel fuel

1шт.

19

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

20

119615A1

DECAL

maintenance schedule

1шт.

21

H434287

DECAL

Attachment, Raise/Lower (Rear), Lower/Raise (Front), used on models with plow and trencher

1шт.

22

H419119

ADHESIVE

DECAL, Selector, Trencher Lift/Plow Lift

1шт.

23

H419101

ADHESIVE

DECAL, Trencher Digging Cham, Trench/Stop/Reverse

1шт.

24

321-3214

DECAL

Warning, personnel must be clear of digging chain

2шт.

25

321-3258

ADHESIVE

DECAL, Warning, moving chains below, on trencher chain cover panel

1шт.

26

321-6687

DECAL

Warning, keep clear, sharp moving parts

2шт.

27

H427880

DECAL

Hydra-Borer

1шт.

28

H419093

DECAL

Hydra-Borer, Bore/Stop/Reverse

1шт.

29

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

30

321-3596

DECAL

Warning, rotating fan and belts

3шт.

31

H438698

DECAL

Caution, hot muffler, you can be burned

1шт.

32

321-6672

DECAL

Warning, check and service cooling system

1шт.

33

H431221

ADHESIVE STRIP

anti-skid, 76 x 152 mm, fenders and steps

4шт.

34

321-4739

EMBLEM

on grille, models with brown trim

1шт.

34a

186989A1

EMBLEM

EMBLEM Case, on grille, models with gray trim

1шт.

35

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type

2шт.

36

124016A1

DECAL

Danger, avoid injury or death

1шт.
