Запчасти Case MAXI-SNEAKER (09-064) - DECALS (09) - CHASSIS/ATTACHMENTS

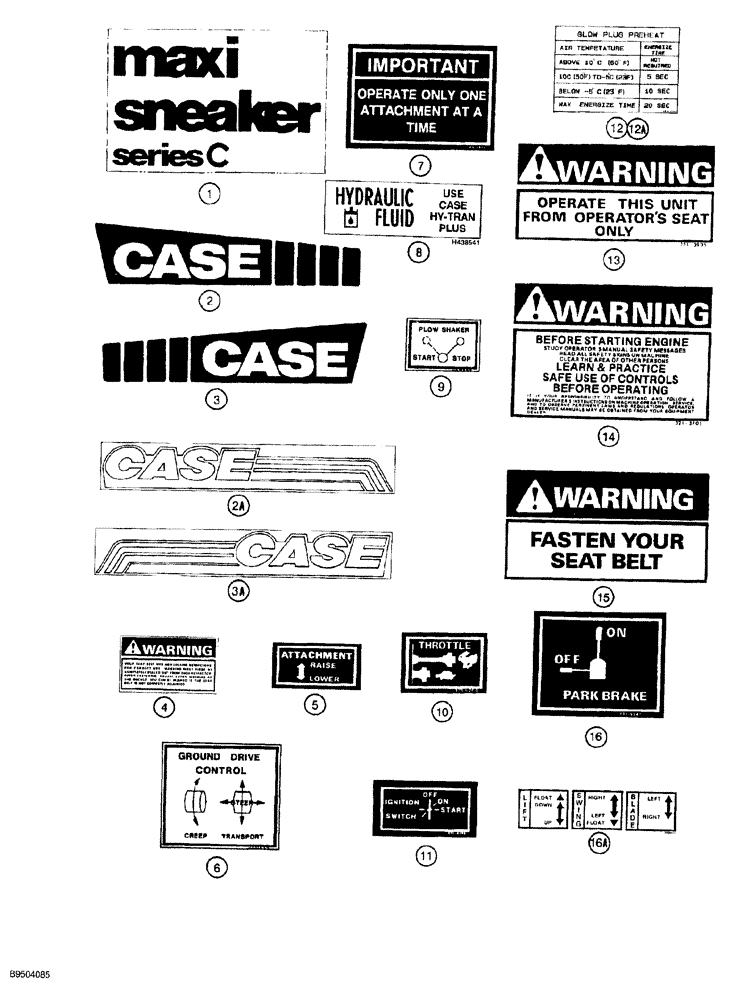

Схема запчастей Case MAXI-SNEAKER - (09-064) - DECALS (09) - CHASSIS/ATTACHMENTS
6
16
7
2
1
15
8
2a
4
10
3a
9
16a
3
13
12a
11
14
5
12

Артикул

Название

Примечание

Количество

1

114511A1

DECAL

maxi sneaker series C, models with brown trim

2шт.

1

179116A1

DECAL

maxi sneaker series C, models with gray trim

2шт.

2

114509A1

DECAL

Case, with treads, right hand, models with brown trim

1шт.

2a

179209A2

DECAL

Case, with stripes, right hand, models with gray trim

1шт.

3

114510A1

DECAL

Case, with treads, left hand, models with brown trim

1шт.

3a

179210A2

DECAL

Case, with stripes, left hand, models with gray trim

1шт.

4

321-6746

DECAL

Warning, your seat belt has non locking retractors

1шт.

5

H249920

DECAL

DECAL, Attachment, Raise and Lower, used on models with plow only

1шт.

6

H431833

DECAL

Ground Drive Control, Creep and Transport

1шт.

7

H419473

ADHESIVE

DECAL, Important, operate only one attachment at a time

1шт.

8

H438541

DECAL

hydraulic fluid, use Case hy-tran plus

1шт.

9

H431841

DECAL

Plow Shaker, Start and Stop

1шт.

10

321-5288

DECAL

throttle

1шт.

11

321-6396

DECAL

ignition switch off,on,start

1шт.

12

122311A1

DECAL

glow plug preheat models with brown trim

1шт.

12a

189257A1

DECAL

glow plug preheat, models with gray trim

1шт.

13

321-3905

DECAL

Warning, operate this unit from operator's seat only

1шт.

14

321-3705

DECAL

Warning, before starting engine

1шт.

15

321-3217

DECAL

Warning, fasten your seat belt

1шт.

16

321-5287

DECAL

park brake, on and foff

1шт.

16a

127447A1

DECAL

plow control pattern, lift and swing, P75 plow

1шт.

Выбрано товаров: 21
