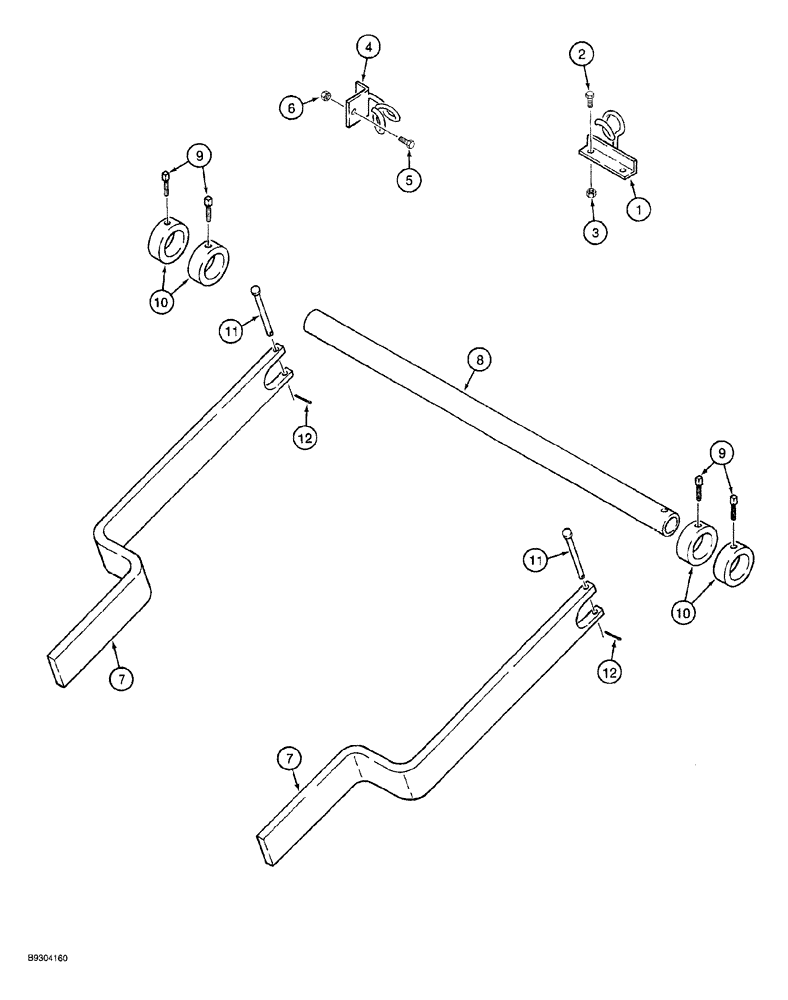

Запчасти Case MAXI-SNEAKER (09-062) - REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

118079A1

GUIDE

cable, front, Serial Range: mounts-hood

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

230-4215

NUT,5/16"-18, GA

2шт.

4

H633081

GUIDE

cable, rear, Serial Range: mounts-ROPS

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

1шт.

7

H347948

ARM

reel carrier

2шт.

8

H350363

PIPE

reel carrier

1шт.

9

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cup point

4шт.

10

H350355

COLLAR

stop

4шт.

11

H230243

CLEVIS COUPLING

PIN, 3/8 x 3-5/8 inch

2шт.

12

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.
