Запчасти Case MAXI-SNEAKER (09-060) - PLOW GEARBOX ASSEMBLY AND MOTOR MOUNTING, P40 PLOW (09) - CHASSIS/ATTACHMENTS

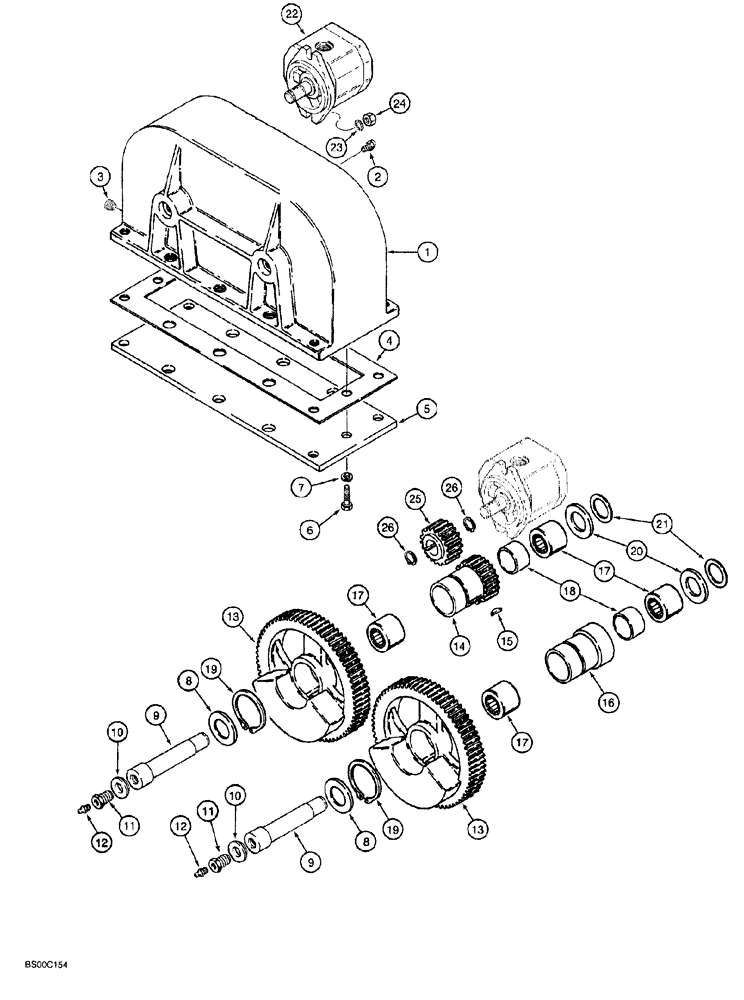

Схема запчастей Case MAXI-SNEAKER - (09-060) - PLOW GEARBOX ASSEMBLY AND MOTOR MOUNTING, P40 PLOW (09) - CHASSIS/ATTACHMENTS
5
1
4
10
12
26
17
14
19
8
6
23
16
13
9
13
15
7
24
3
25
2
17
10
11
11
19
8
12
18
26
17
22
9
21
20

Артикул

Название

Примечание

Количество

H530204

GEAR WHEEL

BOX ASSEMBLY plow, Includes: Ref. 1 - 21

1шт.

1

H113209

CASE

HOUSING gearbox

1шт.

2

152127H1

BREATHER,1/8"-27, Short

gearbox housing, 1/8 inch PT, Replaces: L33264

1шт.

3

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

4

H113266

GASKET

to cover plate

1шт.

5

H113274

PLATE

cover, bottom

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

H159160

WASHER

SHIM, 1.5 mm (1/16 inch) thick

2шт.

9

H436788

PIN

special, 149 mm long, and shaft retaining

2шт.

10

H436789

WASHER

special

2шт.

11

D136218

SCREW

straight, special, grease fitting

2шт.

12

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

13

H113217

GEAR

with counterweight, and driven

2шт.

14

H113225

HUB

SHAFT pinion

1шт.

15

H120550

KEY

square, gear retaining, 5/16 x 59/64 inch

1шт.

16

H113233

HUB

CARRIER driven gear

1шт.

17

H748210

NEEDLE BEARING,Needle, 31.75mm ID x 44.45mm OD x 31.75mm W

needle

4шт.

18

H369496

SPACER

44 x 48 x 28 mm

2шт.

19

103-11225

SNAP RING,#225, Ext

Gear

2шт.

20

H113241

BEARING WASHER

flat, 1/8 inch (3.5 mm) thick

1шт.

21

H357517

BEARING WASHER

SHIM, 0.8 mm (1/32 inch) thick, do not use next to needle bearing

1шт.

22

117652A1

MOTOR

AND GEAR ASSEMBLY plow, parts list Figure 08-032, see Figure 08-028, item 1A for motor mounting bolt

1шт.

23

493-41046

LOCK WASHER,Ext Tooth, 7/16"

external tooth lock, 7/16 inch

2шт.

24

230-4217

LOCK NUT,7/16"-14, GA

hex, self locking, 7/16 inch NC

2шт.

25

H113282

GEAR

drive, included with 117652A1 plow motor assembly.see item 7, Figure 08-032 for motor shaft to drive gear key

1шт.

26

100-1168

SNAP RING,#68, Ext

41/64 inch ID, included with 117652A1 plow motor assembly

2шт.

Выбрано товаров: 27
