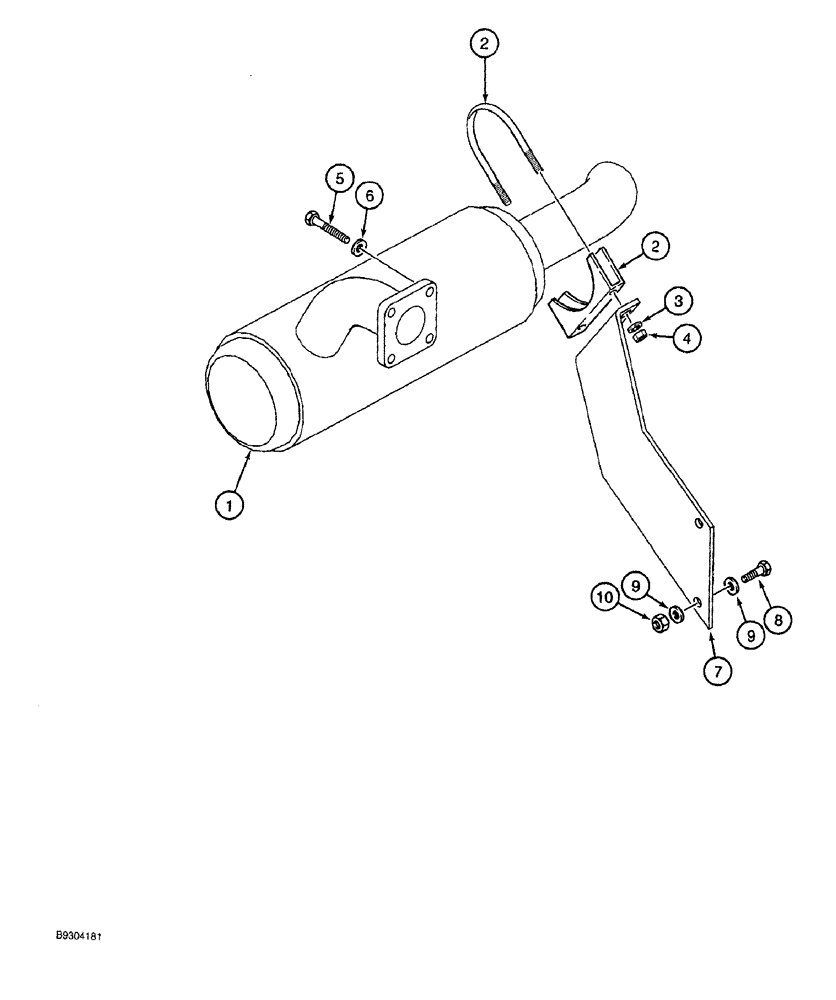

Запчасти Case MAXI-SNEAKER (02-008) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

110891A1

MUFFLER

engine exhaust

1шт.

2

L73301

CLAMP,51mm ID

ASSEMBLY, muffler, includes hardware

1шт.

3

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

4

232-4115

LOCK NUT,5/16"-18, GC

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

111039A1

PLATE

BRACKET muffler

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

10

232-4115

LOCK NUT,5/16"-18, GC

2шт.
