Запчасти Case MAXI-SNEAKER (09-058) - PLOW BLADE BULLET AND MANDREL (09) - CHASSIS/ATTACHMENTS

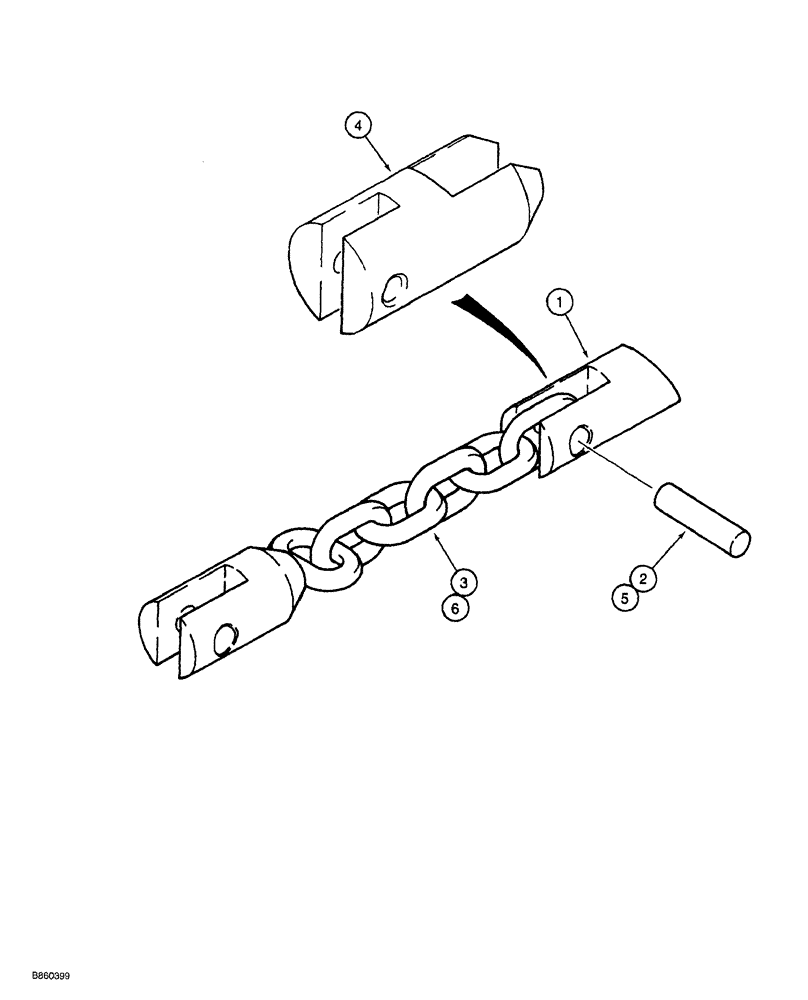

Схема запчастей Case MAXI-SNEAKER - (09-058) - PLOW BLADE BULLET AND MANDREL (09) - CHASSIS/ATTACHMENTS
3
5
4
2
1
6

Артикул

Название

Примечание

Количество

H648881

CHAIN (CE)

KIT bullet and mandrel, 25 mm (1 inch) bullet, includes instruction sheet, Includes: Ref. 1 - 3

1шт.

1

H249862

CLEVIS

BULLET plow, Serial Range: blade,-blade

1шт.

2

H249979

RIVET

to bullet, 3/8 x 1-3/16 inch

1шт.

3

H584391

SLEEVE CYLINDER

MANDREL cable pull

1шт.

H648899

KIT

bullet and mandrel, 38 mm (1-1/2 inch) bullet, includes instruction sheet, Includes: Ref. 4 - 6

1шт.

4

H219386

SPECIAL PIN

BULLET plow, Serial Range: blade,-blade

1шт.

5

H133314

RIVET

to bullet, 3/8 x 11/16 inch

1шт.

6

H538157

ADAPTER

MANDREL cable pull

1шт.

Выбрано товаров: 8
