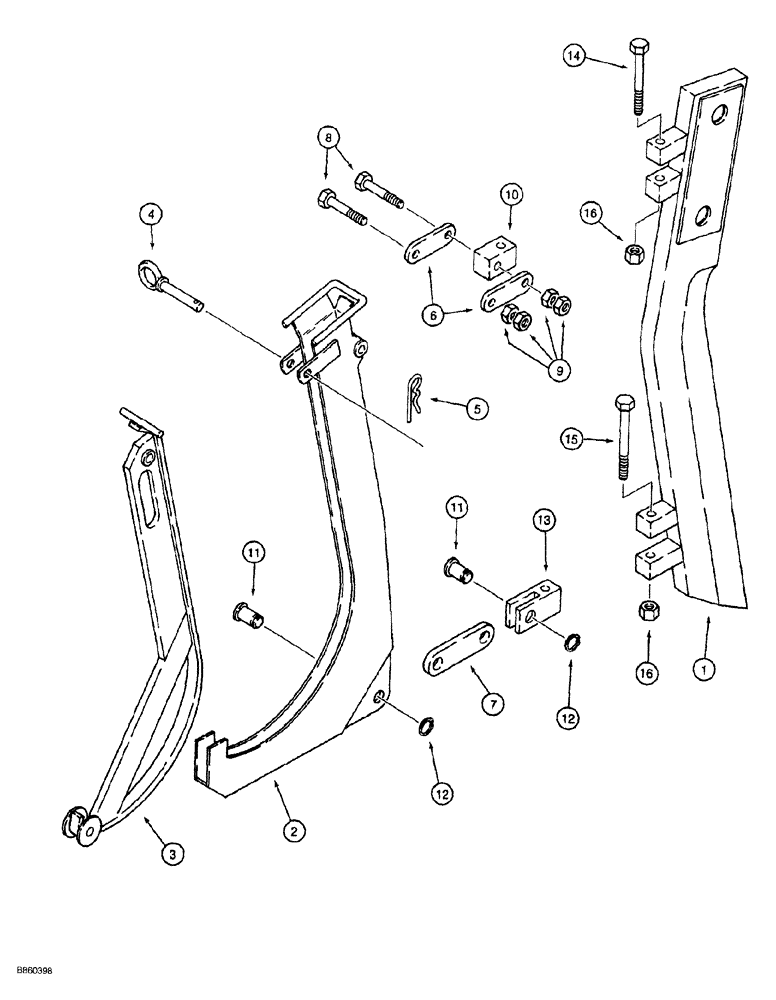

Запчасти Case MAXI-SNEAKER (09-054) - PLOW BLADES AND CHUTES, BENT BLADE, 1 X 18 X 3/4 INCH CLEARANCE (09) - CHASSIS/ATTACHMENTS

H938878

BLADE ASSEMBLY, with chute, 25 (1) wide blade and 457 (18) cover depth x 19 mm (3/4 inch) chute clearance, order from Machinery Price List, Includes: Ref. 1 - 16

1шт.

1

H670406

CHUTE ASSY.

BLADE plow, 18 inch cover depth

1шт.

2

H670414

CHUTE ASSY.

cable

1шт.

3

H669523

DOOR

GATE chute

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

S120261

PIN

hair, gate pin

1шт.

6

H429514

LINK

chute to blade hinge, upper

2шт.

7

H429506

LINK

chute to blade hinge, lower

1шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

9

131-1308

JAM NUT,Jam, 1/2"-13

4шт.

10

H429670

PIVOT

HINGE chute, upper

1шт.

11

H433152

PIN

clevis, to chute and hinge

2шт.

12

100-1675

SNAP RING,#75, Ext

Pin

2шт.

13

H429530

PIVOT

HINGE chute, lower

1шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

15

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

1шт.

16

230-4218

LOCK NUT,1/2"-13, GA

hex, self locking, 1/2 inch NC

2шт.
