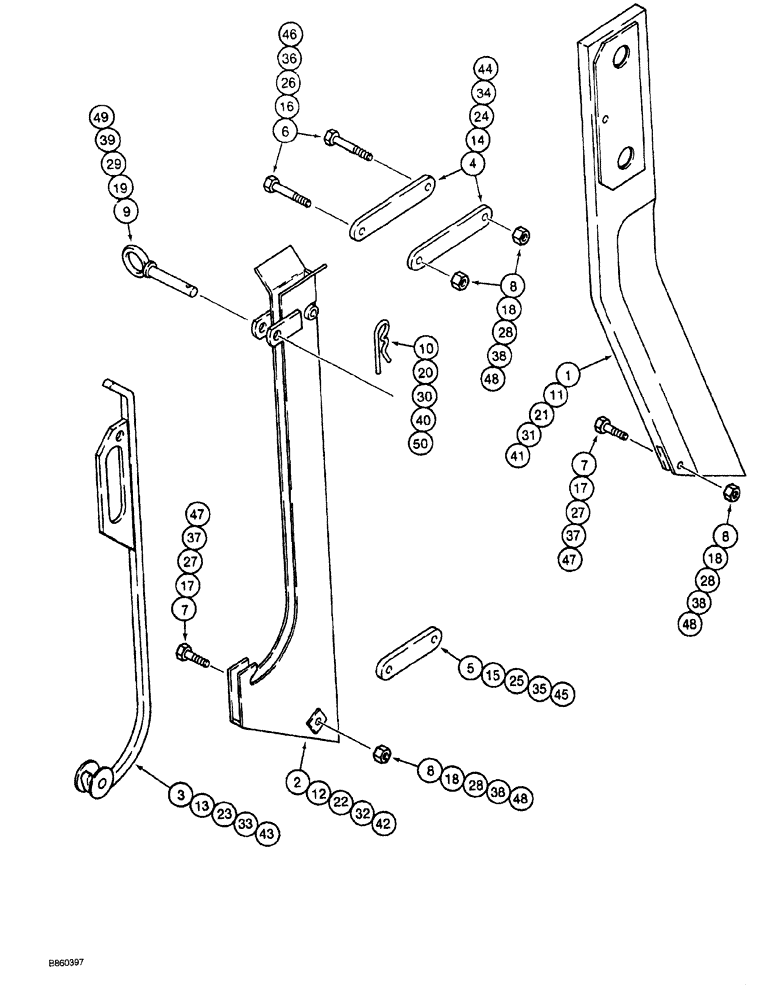

Запчасти Case MAXI-SNEAKER (09-050) - PLOW BLADES AND CHUTES, BENT BLADE, 3/8 - 5/8 INCH CLEARANCE (09) - CHASSIS/ATTACHMENTS

H936336

BLADE ASSEMBLY, with chute,19 (3/4) wide blade x 305 (12) cover depth x 10 mm (3/8 inch) chute clearance, order from Machinery Parts List, Includes: Ref. 1 - 20

1шт.

1

H639542

HALF BLADE

plow, 12 inch cover depth

1шт.

H648717

CHAIN (CE)

CHUTE cable, with attaching parts, Includes: Ref. 2 - 10

1шт.

2

H647305

GUIDE

CHUTE cable

1шт.

3

H647313

CHUTE ASSY.

GATE

1шт.

4

H387563

LINK

chute to blade, upper

2шт.

5

H127258

DRAG LINK

chute to blade, lower

1шт.

6

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8

2шт.

7

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

4шт.

9

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

10

S120261

PIN

hair, gate pin

1шт.

11

H639567

BLADE

plow, 12 inch cover depth

1шт.

H648758

ATTACHMENT

CHUTE ASSEMBLY cable, with attaching parts, Includes: Ref. 12 - 20

1шт.

12

H647347

CHUTE (DOWNWARD)

cable

1шт.

13

H647354

CHUTE ASSY.

GATE

1шт.

14

H387563

LINK

chute to blade, upper

2шт.

15

H127258

DRAG LINK

chute to blade, lower

1шт.

16

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8

2шт.

17

H127357

BOLT

hex, 3/8 NF x 1-5/16 inch, grade 8

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

4шт.

19

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

20

S120261

PIN

hair, gate pin

1шт.

H936351

BLADE ASSEMBLY, with chute, 19 (3/4) wide blade x 457 (18) cover depth x 10 mm (3/8 inch) chute clearance, order from Machinery Parts List, Includes: Ref. 21 - 30

1шт.

21

H639559

HALF BLADE

plow, 18 inch cover depth

1шт.

H648733

CHAIN (CE)

CHUTE cable, with attaching parts, Includes: Ref. 22 - 30

1шт.

22

H647321

CHUTE (DOWNWARD)

cable

1шт.

23

H647339

CHUTE ASSY.

GATE

1шт.

24

H387571

DRAG LINK

chute to blade, upper

2шт.

25

H127258

DRAG LINK

chute to blade, lower

1шт.

26

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8

2шт.

27

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8

2шт.

28

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

4шт.

29

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

30

S120261

PIN

hair, gate pin

1шт.

H936369

BLADE ASSEMBLY, with chute, 25 (1) wide blade x 457 (18) cover depth x 16 mm (5/8 inch) chute clearance, order from Machinery Parts List, Includes: Ref. 31 - 40

1шт.

31

H639575

BLADE

plow, 18 inch cover depth

1шт.

H648774

BAR

CHUTE ASSEMBLY cable, with attaching parts, Includes: Ref. 32 - 40

1шт.

32

H647362

BAR

CHUTE cable

1шт.

33

H647370

DOOR

GATE chute

1шт.

34

H387571

DRAG LINK

chute to blade, upper

2шт.

35

H127258

DRAG LINK

chute to blade, lower

1шт.

36

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8

2шт.

37

H127357

BOLT

hex, 3/8 NF x 1-5/16 inch, grade 8

2шт.

38

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

4шт.

39

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

40

S120261

PIN

hair, gate pin

1шт.

H936377

BLADE ASSEMBLY, with chute, 25 (1) wide blade x 610 (24) cover depth x 16 mm (5/8 inch) chute clearance, order from Machinery Price List, Includes: Ref. 41 - 50

1шт.

41

H639583

BLADE

plow, 24 inch cover depth

1шт.

H648790

CHAIN (AG)

CHUTE ASSEMBLY cable, with attaching parts, Includes: Ref. 42 - 50

1шт.

42

H647388

CHUTE ASSY.

cable

1шт.

43

H647396

DOOR SEAL

GATE chute

1шт.

44

H387589

DRAG LINK

chute to blade, upper

2шт.

45

H127258

DRAG LINK

chute to blade, lower

1шт.

46

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8

2шт.

47

H127357

BOLT

hex, 3/8 NF x 1-5/16 inch, grade 8

2шт.

48

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

4шт.

49

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

50

S120261

PIN

hair, gate pin

1шт.
