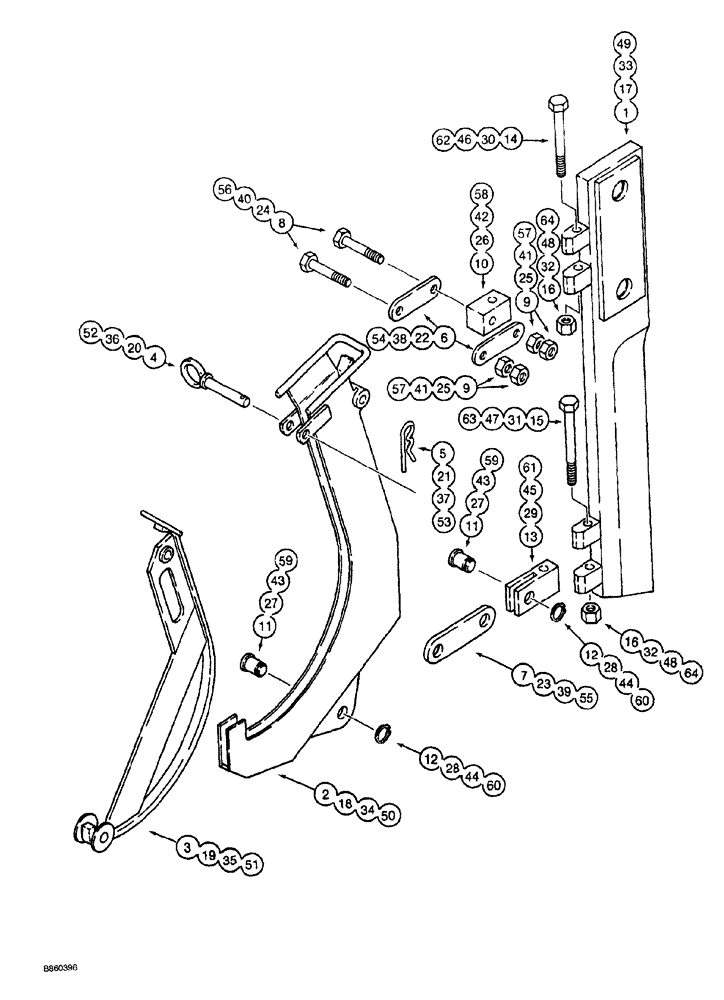

Запчасти Case MAXI-SNEAKER (09-046) - PLOW BLADES AND CHUTES, STRAIGHT BLADE, 3/4 - 1/2 INCH CLEARANCE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
H938837
BLADE ASSEMBLY, with chute, 19 (3/4) wide blade x 305 (12) cover depth x 13 mm (1/2 inch) chute clearance, order from Machinery Price List, Includes: Ref. 1 - 16
1шт.
1
H670323
BLADE
plow, 12 inch cover depth
1шт.
2
H664995
CHUTE ASSY.
cable
1шт.
3
H670299
DOOR
GATE chute
1шт.
4
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
5
S120261
PIN
hair, gate pin
1шт.
6
H429514
LINK
chute to blade hinge, upper
2шт.
7
H420927
LINK
chute to blade hinge, lower
1шт.
8
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
9
131-1308
JAM NUT,Jam, 1/2"-13
4шт.
10
H429670
PIVOT
HINGE chute, upper
1шт.
11
H433755
PIN
clevis, to chute and hinge
2шт.
12
100-1675
SNAP RING,#75, Ext
Pin
2шт.
13
H420901
PIVOT
HINGE chute, lower
1шт.
14
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch
1шт.
15
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
hex, 1/2 NC x 4-1/2 inch
1шт.
16
230-4218
LOCK NUT,1/2"-13, GA
hex, self locking, 1/2 inch NC
2шт.
H938852
BLADE ASSEMBLY, with chute, 1 (25) wide blade x 12 (305) cover depth x 3/4 inch (19 mm) chute clearance, order fro Machinery Price List, Includes: Ref. 17 - 32
1шт.
17
H670489
BLADE
plow, 12 inch cover depth
1шт.
18
H664987
CHUTE ASSY.
cable
1шт.
19
H670307
DOOR
GATE chute
1шт.
20
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
21
S120261
PIN
hair, gate pin
1шт.
22
H429514
LINK
chute to blade hinge, upper
2шт.
23
H429506
LINK
chute to blade hinge, lower
1шт.
24
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
25
131-1308
JAM NUT,Jam, 1/2"-13
4шт.
26
H429670
PIVOT
HINGE chute, upper
1шт.
27
H433152
PIN
clevis, to chute and hinge
2шт.
28
100-1675
SNAP RING,#75, Ext
Pin
2шт.
29
H429530
PIVOT
HINGE chute, lower
1шт.
30
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch
1шт.
31
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
hex, 1/2 NC x 4-1/2 inch
1шт.
32
230-4218
LOCK NUT,1/2"-13, GA
hex, self locking, 1/2 inch NC
2шт.
H938860
BLADE ASSEMBLY, with chute, 19 (3/4) wide blade x 457 (18) cover depth x 13 mm (1/2 inch) chute clearance, order from Machinery Price List, Includes: Ref. 33 - 48
1шт.
33
H670331
BLADE
plow, 18 inch cover depth
1шт.
34
H670364
CHUTE ASSY.
cable
1шт.
35
H670356
DOOR
GATE chute
1шт.
36
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
37
S120261
PIN
hair, gate pin
1шт.
38
H429514
LINK
chute to blade hinge, upper
2шт.
39
H420927
LINK
chute to blade hinge, lower
1шт.
40
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
41
131-1308
JAM NUT,Jam, 1/2"-13
4шт.
42
H429670
PIVOT
HINGE chute, upper
1шт.
43
H433755
PIN
clevis, to chute and hinge
2шт.
44
100-1675
SNAP RING,#75, Ext
Pin
2шт.
45
H420901
PIVOT
HINGE chute, lower
1шт.
46
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch
1шт.
47
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
hex, 1/2 NC x 4-1/2 inch
1шт.
48
230-4218
LOCK NUT,1/2"-13, GA
hex, self locking, 1/2 inch NC
2шт.
H938845
BLADE ASSEMBLY, with chute, 25 (1 ) wide blade x 457 (18) cover depth x 19 mm (3/4 inch) chute clearance, order from Machinery Parts List, Includes: Ref. 49 - 64
1шт.
49
H670505
BLADE
plow, 18 inch cover depth
1шт.
50
H670513
CHUTE ASSY.
cable, 3/4 inch clearance
1шт.
51
H669523
DOOR
GATE chute
1шт.
52
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
53
S120261
PIN
hair, gate pin
1шт.
54
H429514
LINK
chute to blade hinge, upper
2шт.
55
H429506
LINK
chute to blade hinge, lower
1шт.
56
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
57
131-1308
JAM NUT,Jam, 1/2"-13
4шт.
58
H429670
PIVOT
HINGE chute, upper
1шт.
59
H433152
PIN
clevis, to chute and hinge
2шт.
60
100-1675
SNAP RING,#75, Ext
Pin
2шт.
61
H429530
PIVOT
HINGE chute, lower
1шт.
62
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch
1шт.
63
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
hex, 1/2 NC x 4-1/2 inch
1шт.
64
230-4218
LOCK NUT,1/2"-13, GA
hex, self locking, 1/2 inch NC
2шт.
Выбрано товаров: 68
