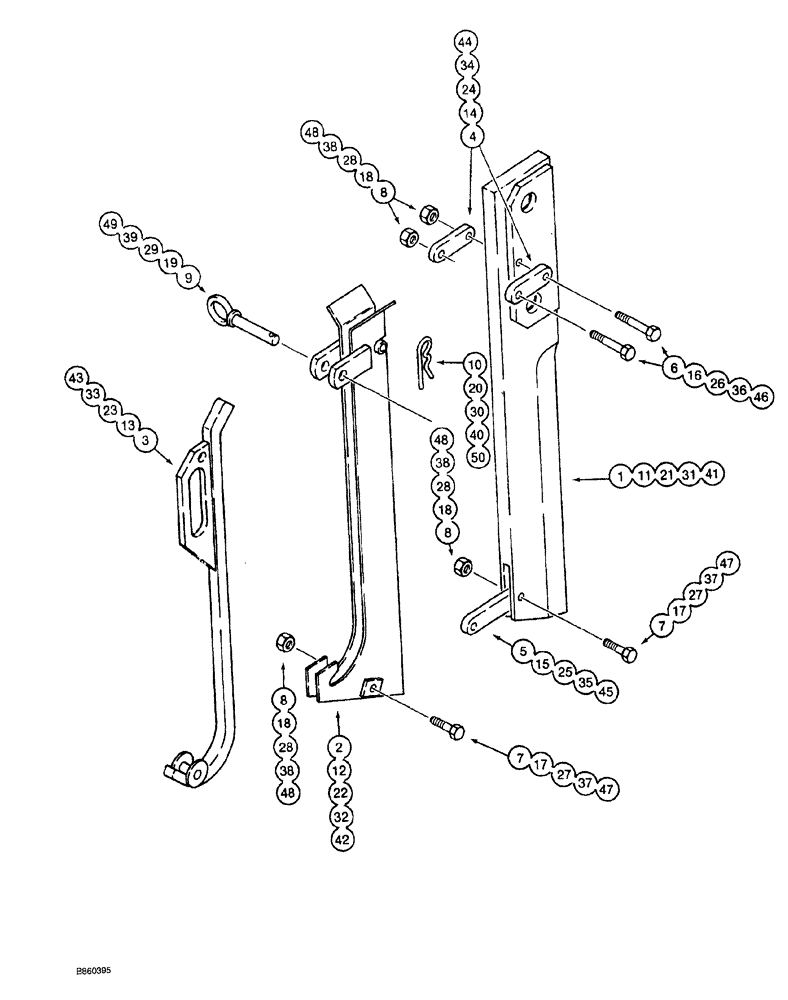

Запчасти Case MAXI-SNEAKER (09-042) - PLOW BLADES AND CHUTES, STRAIGHT BLADE, 3/8 - 5/8 INCH CLEARANCE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
H936286
BLADE ASSEMBLY, with chute, 19 (3/4) wide blade x 305 (12) cover depth x 10 mm (3/8 inch) chute clearance, order from Machinery Prist List, Includes: Ref. 1 - 10
1шт.
1
H639427
HALF BLADE
plow, 12 inch cover depth
1шт.
H648709
CHAIN (CE)
CHUTE, with attaching parts, Includes: Ref. 2 - 10
1шт.
2
H647404
CHUTE (DOWNWARD)
cable
1шт.
3
H647412
CHUTE ASSY.
GATE
1шт.
4
H116756
DRAG LINK
chute to blade, upper
2шт.
5
H127258
DRAG LINK
chute to blade, lower
1шт.
6
H127340
BOLT
hex, 3/8 NF x 2-1/4 inch, grade 8
2шт.
7
328-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8
hex, 3/8 NF x 1-1/4 inch, grade 8
2шт.
8
131-1326
JAM NUT,Jam, 3/8"-24
hex, jam, self locking, 3/8 inch NF
4шт.
9
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
10
S120261
PIN
hair, gate pin
1шт.
H936294
BLADE with chute, 25 (1) wide blade x 305 (12) cover depth x 16 mm (5/8) chute clearance, order from Machinery Price List, Includes: Ref. 11 - 20
1шт.
11
H639393
BLADE
plow, 12 inch cover depth
1шт.
H648741
ATTACHMENT
CHUTE ASSEMBLY, with attaching parts, Includes: Ref. 12 - 20
1шт.
12
H647446
SCRAPER
CHUTE cable
1шт.
13
H647453
CHUTE ASSY.
GATE
1шт.
14
H116756
DRAG LINK
chute to blade, upper
2шт.
15
H127258
DRAG LINK
chute to blade, lower
1шт.
16
H127340
BOLT
hex, 3/8 NF x 2-1/4 inch, grade 8
2шт.
17
H127357
BOLT
hex, 3/8 NF x 1-5/16 inch, grade 8
2шт.
18
131-1326
JAM NUT,Jam, 3/8"-24
hex, jam, self locking, 3/8 inch NF
4шт.
19
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
20
S120261
PIN
hair, gate pin
1шт.
H936302
BLADE ASSEMBLY, with chute, 19 (3/4) wide blade x 457 (18) cover depth x 10 mm (3/8 inch) chute clearance, order from Machinery Price list, Includes: Ref. 21 - 30
1шт.
21
H639435
BLADE
plow, 18 inch cover depth
1шт.
H648725
CHAIN (CE)
CHUTE, with attaching parts, Includes: Ref. 22 - 30
1шт.
22
H647420
CHUTE (DOWNWARD)
cable
1шт.
23
H647438
CHUTE ASSY.
GATE
1шт.
24
H116756
DRAG LINK
chute to blade, upper
2шт.
25
H127258
DRAG LINK
chute to blade, lower
1шт.
26
H127340
BOLT
hex, 3/8 NF x 2-1/4 inch, grade 8
2шт.
27
328-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8
hex, 3/8 NF x 1-1/4 inch, grade 8
2шт.
28
131-1326
JAM NUT,Jam, 3/8"-24
hex, jam, self locking, 3/8 inch NF
4шт.
29
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
30
S120261
PIN
hair, gate pin
1шт.
H936310
BLADE ASSEMBLY, with chute, 25 (1) wide blade x 457 (18) cover depth x 16 mm (5/8 inch) chute clearance, order from Machinery Price List, Includes: Ref. 31 - 40
1шт.
31
H639401
BLADE
18 inch cover depth, 1 (25) x 18 inch (457 mm)
1шт.
H648766
ATTACHMENT
CHUTE ASSEMBLY cable, with attaching parts, Includes: Ref. 32 - 40
1шт.
32
H647461
CHAIN (AG)
CHUTE cable
1шт.
33
H647479
CHUTE ASSY.
GATE
1шт.
34
H116756
DRAG LINK
chute to blade, upper
2шт.
35
H127258
DRAG LINK
chute to blade, lower
1шт.
36
H127340
BOLT
hex, 3/8 NF x 2-1/4 inch, grade 8
2шт.
37
H127357
BOLT
hex, 3/8 NF x 1-5/16 inch, grade 8
2шт.
38
131-1326
JAM NUT,Jam, 3/8"-24
hex, jam, self locking, 3/8 inch NF
4шт.
39
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
40
S120261
PIN
hair, gate pin
1шт.
H936328
BLADE ASSEMBLY, with chute, 25 (1 ) wide blade x 610 (24) cover depth x 16 mm (5/8 inch) chute clearance, order from Machinery Price List, Includes: Ref. 41 - 50
1шт.
41
H639419
BLADE
plow, 24 inch cover depth
1шт.
H648782
BLADE
CHUTE ASSEMBLY cable, with attaching parts, Includes: Ref. 42 - 50
1шт.
42
H647487
CHUTE (DOWNWARD)
cable
1шт.
43
H647495
LARGE PLATE
PLATE, LARGE GATE chute
1шт.
44
H116756
DRAG LINK
chute to blade, upper
2шт.
45
H127258
DRAG LINK
chute to blade, lower
1шт.
46
H127340
BOLT
hex, 3/8 NF x 2-1/4 inch, grade 8
2шт.
47
H127357
BOLT
hex, 3/8 NF x 1-5/16 inch, grade 8
2шт.
48
131-1326
JAM NUT,Jam, 3/8"-24
hex, jam, self locking, 3/8 inch NF
4шт.
49
H537787
AXLE PIN
, Serial Range: gate-chute
1шт.
50
S120261
PIN
hair, gate pin
1шт.
Выбрано товаров: 60
