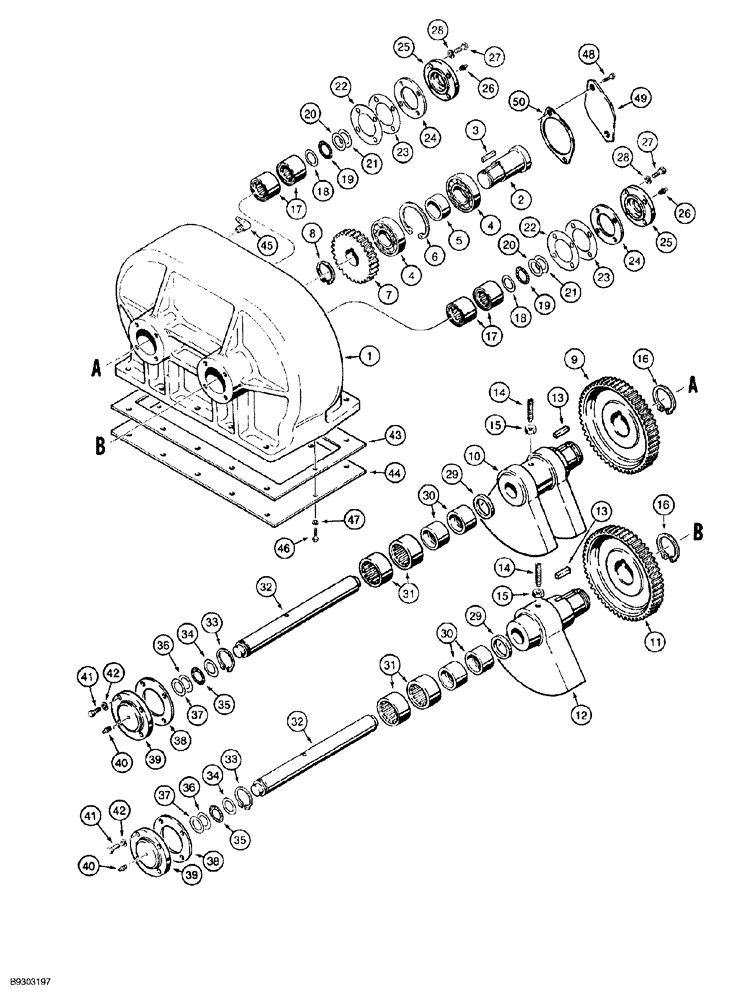

Запчасти Case MAXI-SNEAKER (09-041E) - PLOW GEARBOX ASSEMBLY, H563619, P75 PLOW (09) - CHASSIS/ATTACHMENTS

H563619

BOX

GEAR ASSEMBLY plow, Includes: Ref. 1 - 50

1шт.

1

H205559

CASE

HOUSING gearbox

1шт.

2

H205567

SHAFT

drive, gearbox

1шт.

3

H380030

KEY

square, 1/4 x 1-3/8 inch

1шт.

4

H753194

BEARING

drive shaft

2шт.

5

H189795

SPACER

bearing

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

Brg and shaft

1шт.

7

H189787

GEAR

drive

1шт.

8

100-11150

SNAP RING,#150, Ext

Gear

1шт.

9

H189753

GEAR

driven, counterweight shaft, left hand

1шт.

10

H189514

WEIGHT

COUNTER gearbox, left hand

1шт.

11

H189746

GEAR WHEEL

driven, counterweight shaft, right hand

1шт.

12

H189506

WEIGHT

COUNTER gearbox, right hand

1шт.

13

H380030

KEY

square, 1/4 x 1-3/8 inch

2шт.

14

83-65032

SET SCREW,Hex Soc, 1/2"-13 x 2"

set, hex socket headless, half dog point, 1/2 NC x 2 inch

2шт.

15

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

16

103-11225

SNAP RING,#225, Ext

Gear

2шт.

17

H753145

NEEDLE BEARING

counterweight shaft, front

4шт.

18

G46081

BEARING WASHER

thrust, shaft bearing, 0.81 mm (0.032 inch) thick

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller, Shaft end

2шт.

20

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

thrust, 2.41 mm (0.095 inch) thick

1шт.

21

G46081

BEARING WASHER

thrust, 0.81 mm (0.032 inch) thick

1шт.

22

H189878

SHIM,.005" Thk

(0.13 mm)

1шт.

23

H189886

SHIM,.015" Thk

(0.38 mm)

1шт.

24

H189860

GASKET

89 x 52 x 0.8 mm, front

2шт.

25

135587A1

BEARING CAP,28.6 mm ID x 88.9 mm OD x 19 mm

bearing end, front

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

8шт.

28

492-11031

LOCK WASHER,5/16"

8шт.

29

H189803

SPACER

49 x 39 x 5 mm

2шт.

30

H753160

BEARING CUP

RACE inner

4шт.

31

111980R91

NEEDLE BEARING

counterweight shaft, rear

4шт.

32

H189761

SHAFT

counterweight

2шт.

33

100-11150

SNAP RING,#150, Ext

Shaft

2шт.

34

G46081

BEARING WASHER

thrust, 0.81 mm (0.032 inch) thick

2шт.

35

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller, Shaft end

2шт.

36

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

thrust, 2.41 mm (0.095 inch) thick

1шт.

37

G46081

BEARING WASHER

thrust, 0.81 mm (0.032 inch) thick

1шт.

38

H189852

GASKET

shaft end cover, 111 x 65 x 0.8 mm, rear

2шт.

39

H189811

BEARING CAP

bearing end, rear

2шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

8шт.

42

492-11031

LOCK WASHER,5/16"

8шт.

43

H189910

GASKET

housing bottom, 273 x 483 x 0.8 mm

1шт.

44

H202176

LARGE PLATE

PLATE, LARGE cover, housing bottom

1шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

46

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

47

492-11038

LOCK WASHER,3/8"

2шт.

48

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Discard and use plow motor mounting hardware listed on Figure 09-041C

2шт.

49

H137844

LARGE PLATE

PLATE, LARGE cover, discard to mount plow motor

1шт.

50

H44727

GASKET

motor, 124 x 146 x 0.8 mm

1шт.
