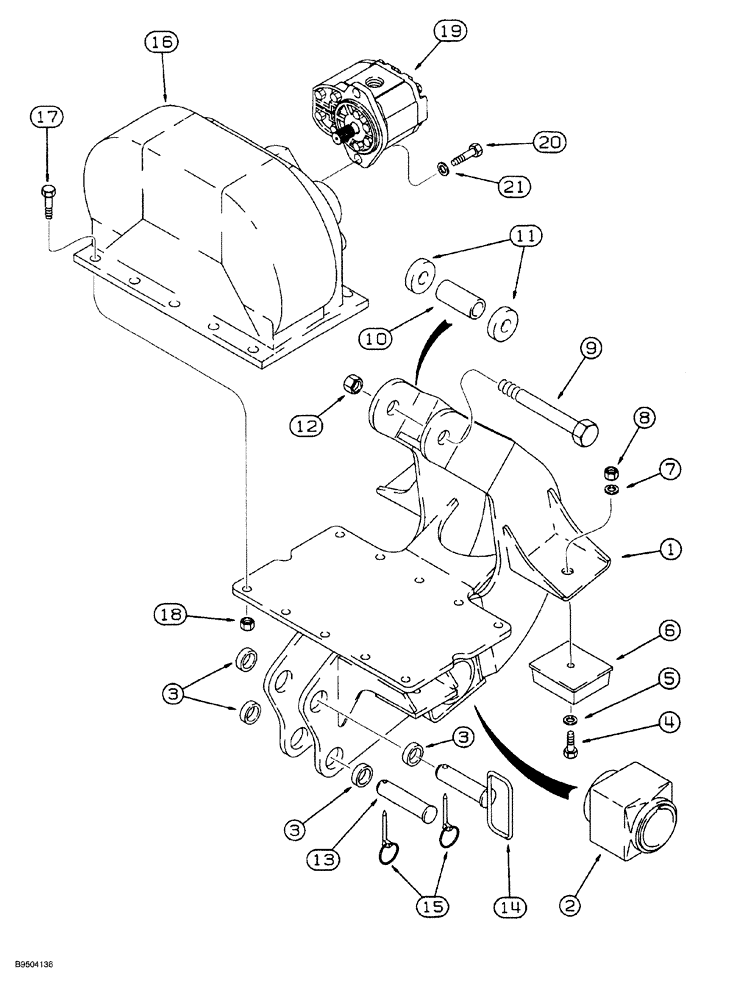

Запчасти Case MAXI-SNEAKER (09-041C) - PLOW MOTOR, GEARBOX AND BLADE MOUNTING, P75 PLOW (09) - CHASSIS/ATTACHMENTS

1

133628A1

FRAME

mounting, plow gearbox, Includes: Ref. 2 and 3

1шт.

2

H230862

SHOCK ABSORBER

MOUNT rubber

2шт.

3

H131102

BUSHING

plow frame

4шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

6

D90990

GUARD

BUMPER rubber, plow stop

4шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

8

232-4116

NUT,3/8"-16, GC

4шт.

9

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

hex, 1 NC x 7 inch

1шт.

10

D90422

BUSHING

SPACER, 38 mm OD x 87 mm long

1шт.

11

139015A1

BUSHING

spacer

2шт.

12

232-41116

LOCK NUT,1"-8, GC

1шт.

13

H79293

AXLE PIN,28.5mm OD x 128.59mm L

clevis, 1-1/8 x 4-7/8 inch long

1шт.

14

H531830

AXLE PIN

with handle, plow blade, 28 x 114 mm

1шт.

15

A30338

PIN

lock

2шт.

16

H563619

BOX

GEAR ASSEMBLY plow, parts list Figure 09-041E

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

10шт.

18

232-4118

NUT,1/2"-13, GC

10шт.

19

142714A1

MOTOR

ASSEMBLY plow, parts list Figure 08-048

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

21

H274894

WASHER

flat, special

2шт.
