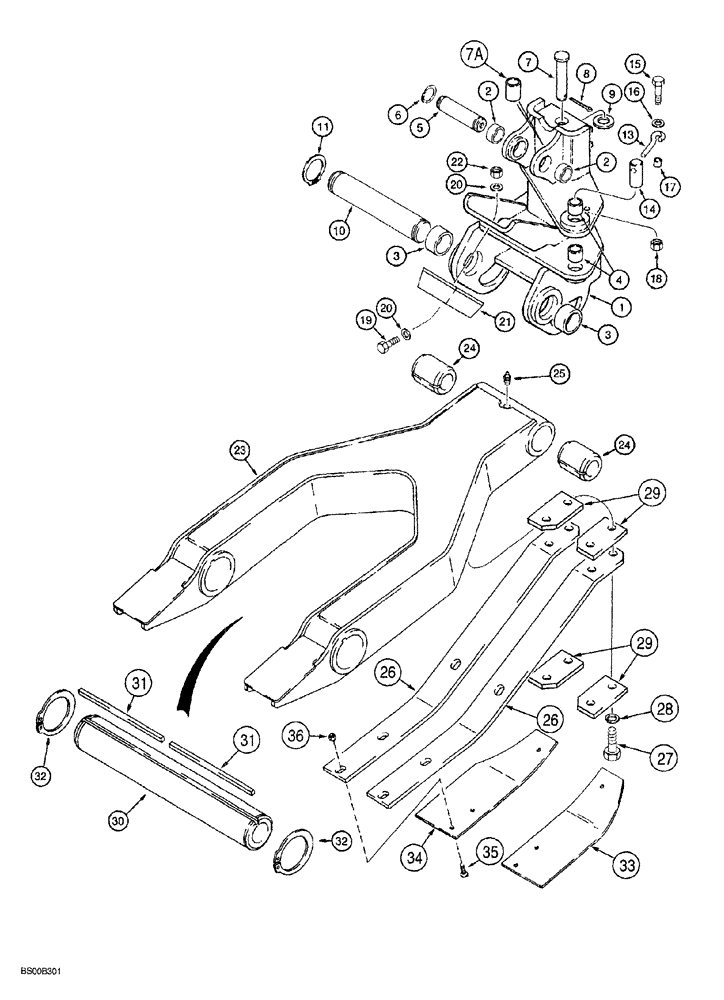

Запчасти Case MAXI-SNEAKER (09-041A) - PLOW SWING TOWER, LIFT ARM AND SKID SHOES, P75 PLOW (09) - CHASSIS/ATTACHMENTS

1

142208A1

PIVOT

TOWER plow swing, Includes: Ref. 2 - 4

1шт.

2

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

upper pivot

2шт.

3

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

lower pivot, 25 mm (1 inch) long

2шт.

4

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

arm, swing cylinder pivot, 25 mm (1 inch) ID

2шт.

5

D32933

PIVOT PIN,31.75mm OD x 127mm L

pivot, swing tower, small

1шт.

6

103-16125

SNAP RING,#125, Ext

2шт.

7

113192A1

PIN

clevis, special

2шт.

7a

382683A1

SPACER

clevis pin, special

1шт.

8

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

9

195-81015

WASHER,1 1/64" x 1 3/4" x .033"

flat, 1-1/64 x 1-3/4 x 1/32 inch

1шт.

10

D45523

PIN,50.8mm OD x 276.35mm L

pivot, swing tower, large, 10-7/8 inch long

1шт.

11

103-16200

SNAP RING,#200, Ext

2шт.

13

H313981

PIN

retaining

2шт.

14

127396A1

PIVOT PIN

2шт.

15

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

16

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

17

H53959

SPACER

13 mm (1/2 inch) long

2шт.

18

232-4115

LOCK NUT,5/16"-18, GC

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

21

D90990

GUARD

BUMPER rubber, plow stop

1шт.

22

232-4116

NUT,3/8"-16, GC

1шт.

23

120729A1

LINK

ARM plow lift, Includes: Ref. 24

1шт.

24

H434904

BUSHING

plow lift arm

2шт.

25

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

Self tap

1шт.

26

127336A1

SPRING

SHOE skid, plow

2шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

29

367436A1

PLATE

skid shoe support

4шт.

30

120745A1

PIN

pivot, rear

1шт.

31

120746A1

KEY

square, plow pivot pin, rear, 9.5 x 250 mm

2шт.

32

103-11300

SNAP RING,#300, Ext

Rear plow pivot pin

2шт.

33

H149666

SHOE (ASSY)

PLATE skid shoe, right hand

1шт.

34

H149674

SHOE (ASSY)

PLATE skid shoe, left hand

1шт.

35

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

hex socket head, 3/8 NF x 1 inch, grade 8

6шт.

36

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self locking, 3/8 inch NF

6шт.
