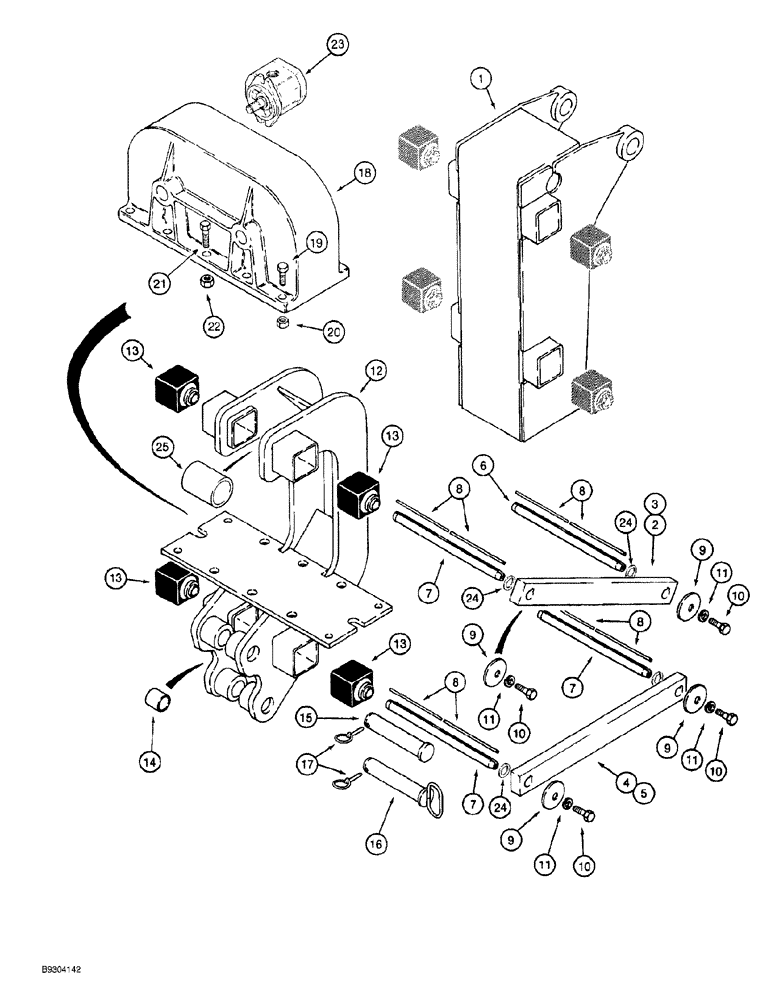

Запчасти Case MAXI-SNEAKER (09-040) - PLOW BLADE MOUNTING FRAME, GEARBOX AND LINKS, P40 PLOW (09) - CHASSIS/ATTACHMENTS

1

H673331

FRAME

ASSEMBLY plow lift, see Figure 09-038

1шт.

2

H421826

GUIDE

LINK lift frame, to blade mounting frame, right hand upper

1шт.

3

H421834

GUIDE

LINK lift frame, to blade mounting frame, left hand upper

1шт.

4

H435952

BAR

LINK lift frame, to blade mounting frame, right hand lower

1шт.

5

H435953

BAR

LINK lift frame, to blade mounting frame, left hand lower

1шт.

6

H421867

SHAFT

link mounting, upper links at lift frame only

1шт.

7

H421867

SHAFT

link mounting

3шт.

8

116373A1

KEY

square, shaft retaining

8шт.

9

H165720

WASHER

flat, special, shaft retaining, 1/2 inch

8шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

12

H614461

FRAME ASSY

blade and gearbox mounting, Includes: Ref. 13 and 14

1шт.

13

H235077

BUSHING

rubber, link attaching

4шт.

14

H418954

BUSHING

blade attaching, 37 x 40 x 51 mm

4шт.

15

H393843

PIN

clevis, blade attaching, upper

1шт.

16

H651000

PIN

blade attaching, lower

1шт.

17

A30338

PIN

lock, blade attaching pin

2шт.

18

H530204

GEAR WHEEL

BOX ASSEMBLY plow, parts list Figure 09-060

1шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Outer mounting holes

4шт.

20

232-4116

NUT,3/8"-16, GC

Outer mounting holes

4шт.

21

413-932

BOLT,Hex, 9/16" - 12 x 2", Gr 5

hex, 9/16 NC x 2 inch, inner mounting holes

6шт.

22

232-4119

LOCK NUT,9/16"-12, GC

Inner mounting holes

6шт.

23

117652A1

MOTOR

AND GEAR ASSEMBLY plow, parts list Figure 08-032, see Figure 09-060. for gearbox drive parts and plow motor mounting

1шт.

24

H436118

SHIM,1.50mm Thk

Plow arm (35.7 ID x 50 OD mm)

1шт.

25

116372A1

SPACER

tubular

4шт.
