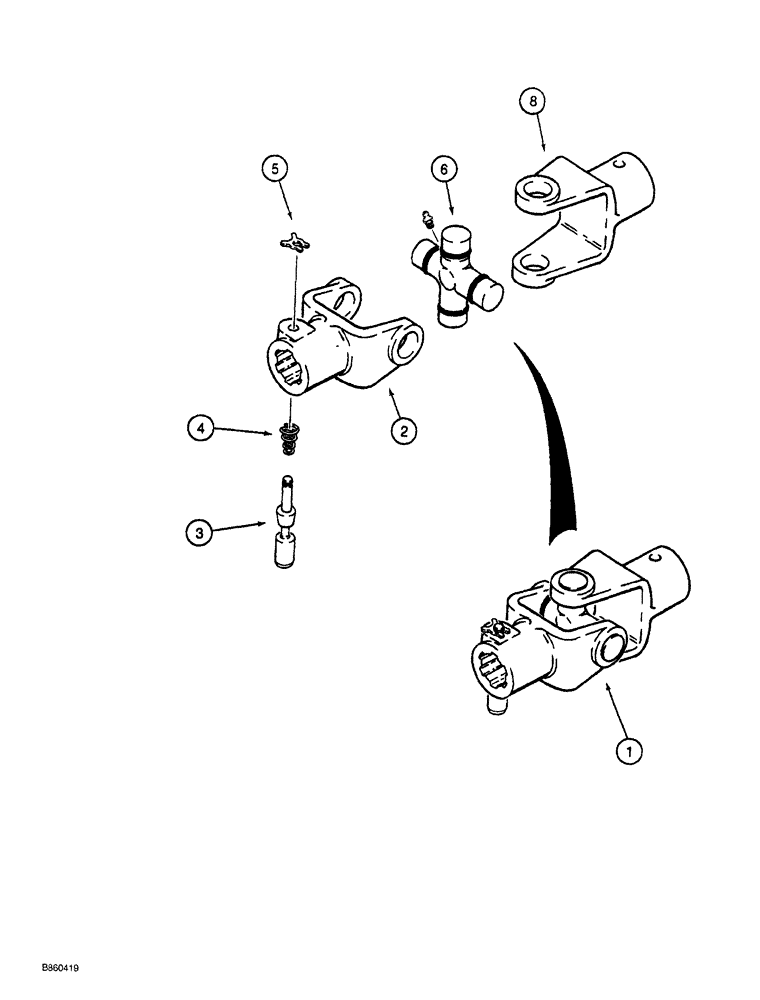

Запчасти Case MAXI-SNEAKER (09-032) - HYDRA-BORER ATTACHMENT UNIVERSAL JOINT (09) - CHASSIS/ATTACHMENTS

1

H511113

JOINT

ASSEMBLY, Hydra-Borer attachment, service with component parts below, Includes: Ref. 2 - 8

1шт.

H71142

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY splined, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE splined

1шт.

H658179

SET OF PARTS

KIT universal joint retaining, with 1-3/4 inch long pin, if used, Includes: Ref. 3 - 5

1шт.

182951A1

KIT

universal joint retaining, with 2-1/4 inch long pin, if used, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PIN retainer

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER special

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap, pin retaining

1шт.

H71167

JOURNAL

CROSS ASSEMBLY universal joint, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS universal joint

1шт.

7

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

1шт.

8

H71159

YOKE

UNIVERSAL JOINT YOKE boring attachments

1шт.
