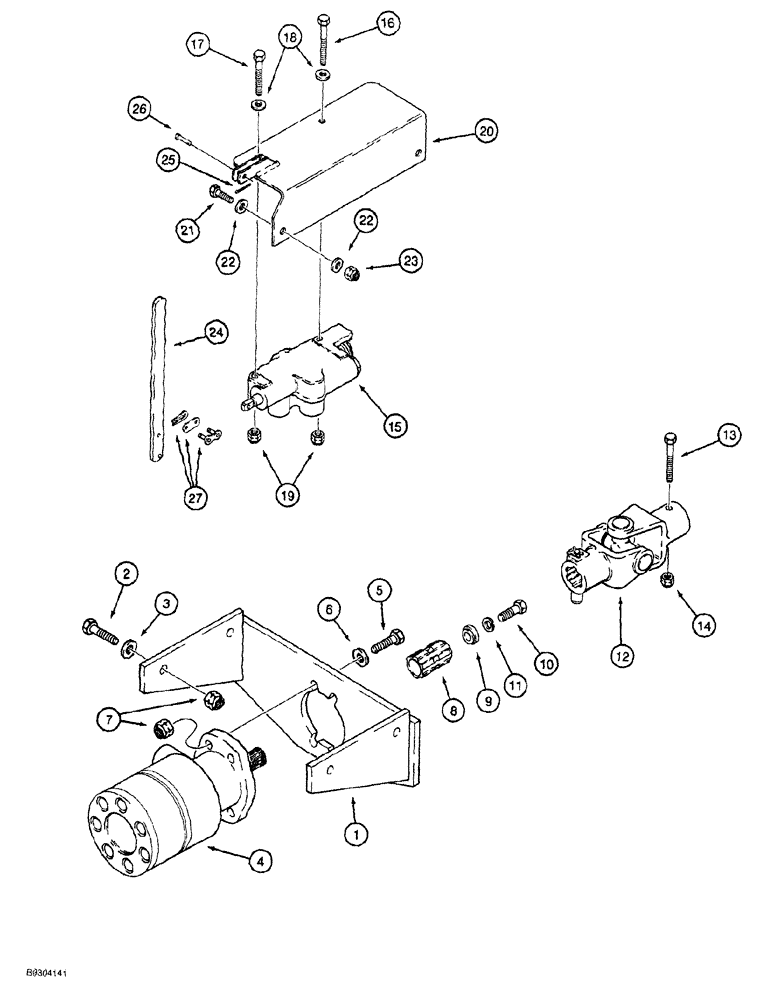

Запчасти Case MAXI-SNEAKER (09-030) - HYDRA-BORER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

115704A1

SUPPORT

MOUNT Hydra-Borer motor

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

H673156

MOTOR, HYDRAULIC

ASSEMBLY Hydra-Borer, parts list Figure 08-026

1шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

7

232-4118

NUT,1/2"-13, GC

8шт.

8

H312314

ADAPTER

splined, motor shaft

1шт.

9

H435886

RETAINER

adapter

1шт.

10

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

hex, 1/2 NF x 1-1/4 inch

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

12

H511113

JOINT

ASSEMBLY Hydra-Borer attachment, Hydra-Borer drive, parts list Figure 09-032

1шт.

13

424-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

hex, 3/8 NC x 2-1/2 inch, grade 2

1шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

107110A1

VALVE

ASSEMBLY control, Hydra-Borer, without detent, parts list Figure 08-024

1шт.

16

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

18

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

19

232-4115

LOCK NUT,5/16"-18, GC

2шт.

20

H664730

SUPPORT

mounting, valve

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

23

232-4116

NUT,3/8"-16, GC

2шт.

24

H377325

LEVER

control, valve control

1шт.

25

432-48

COTTER PIN,1/16" x 1/2"

1шт.

26

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch

1шт.

27

241-1315

LINK, CONNECTING

single pitch, No. 50, 5/8 inch pitch, complete

1шт.
