Запчасти Case MAXI-SNEAKER (09-028) - DIGGING CHAIN ASSEMBLIES, 28,000 POUND FOUR PITCH (09) - CHASSIS/ATTACHMENTS

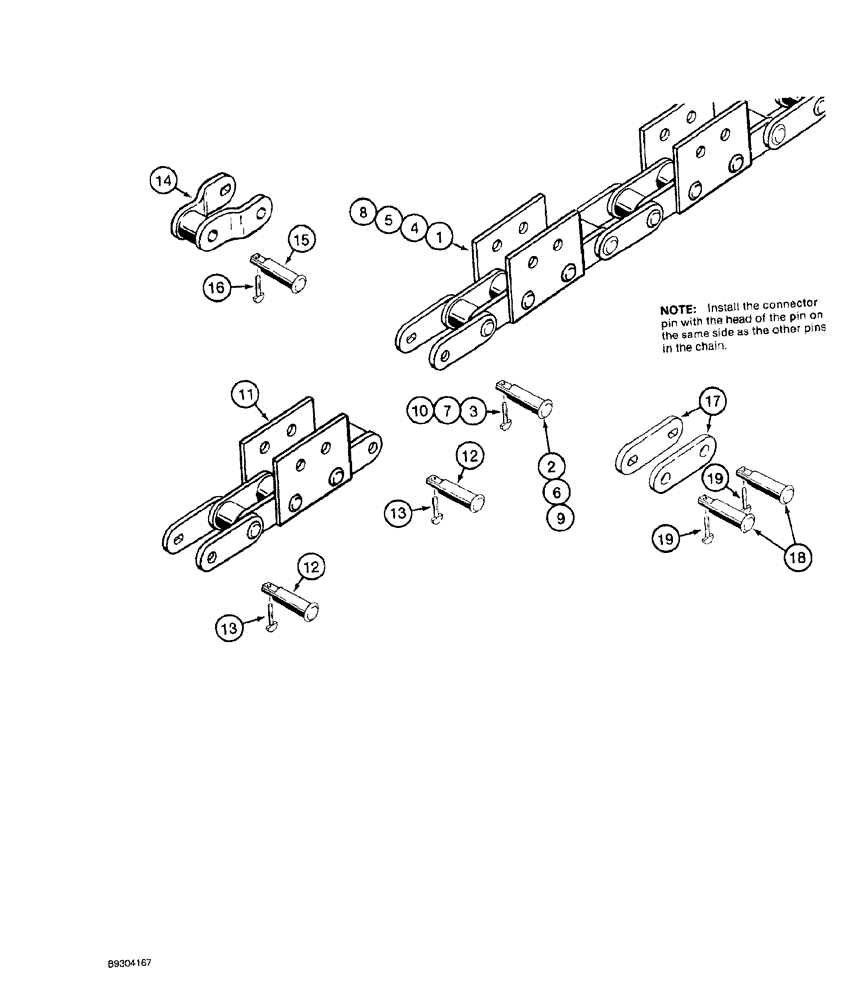

Схема запчастей Case MAXI-SNEAKER - (09-028) - DIGGING CHAIN ASSEMBLIES, 28,000 POUND FOUR PITCH (09) - CHASSIS/ATTACHMENTS
2
15
17
8
6
4
13
5
11
14
19
16
3
19
9
12
18
1
7
10
13
12

Артикул

Название

Примечание

Количество

1

H501791

CHAIN (CE)

digging, 56 pitches, Includes: Ref. 2 and 3

1шт.

2

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

4

H615369

CHAIN (AG)

digging, 52 pitches, Includes: Ref. 6 and 7

1шт.

5

H501809

CHAIN (AG)

ASSEMBLY digging, 20 pitches, Includes: Ref. 6 and 7

1шт.

6

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

7

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

8

H519462

CHAIN (AG)

ASSEMBLY digging, 8 pitches, Includes: Ref. 9 and 10

1шт.

9

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

10

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

11

H502054

CHAIN (CE)

SECTION repair, digging chain, 4 pitches, Includes: Ref. 12 and 13

1шт.

12

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

13

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

14

H59360

HALF-LINK

HALF LINK ASSEMBLY, offset, digging chain, 1 pitch, Includes: Ref. 15 and 16

1шт.

15

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

16

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

17

H504068

DRAG LINK

ASSEMBLY connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 18 and 19

1шт.

18

H30072

CONNECTOR, ELEC

CONNECTOR PIN

2шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

19

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

2шт.

Выбрано товаров: 25
