(09-026) - DIGGING CHAIN ASSEMBLIES, 28,000 POUND TWO PITCH

Запчасти Case MAXI-SNEAKER (09-026) - DIGGING CHAIN ASSEMBLIES, 28,000 POUND TWO PITCH (09) - CHASSIS/ATTACHMENTS

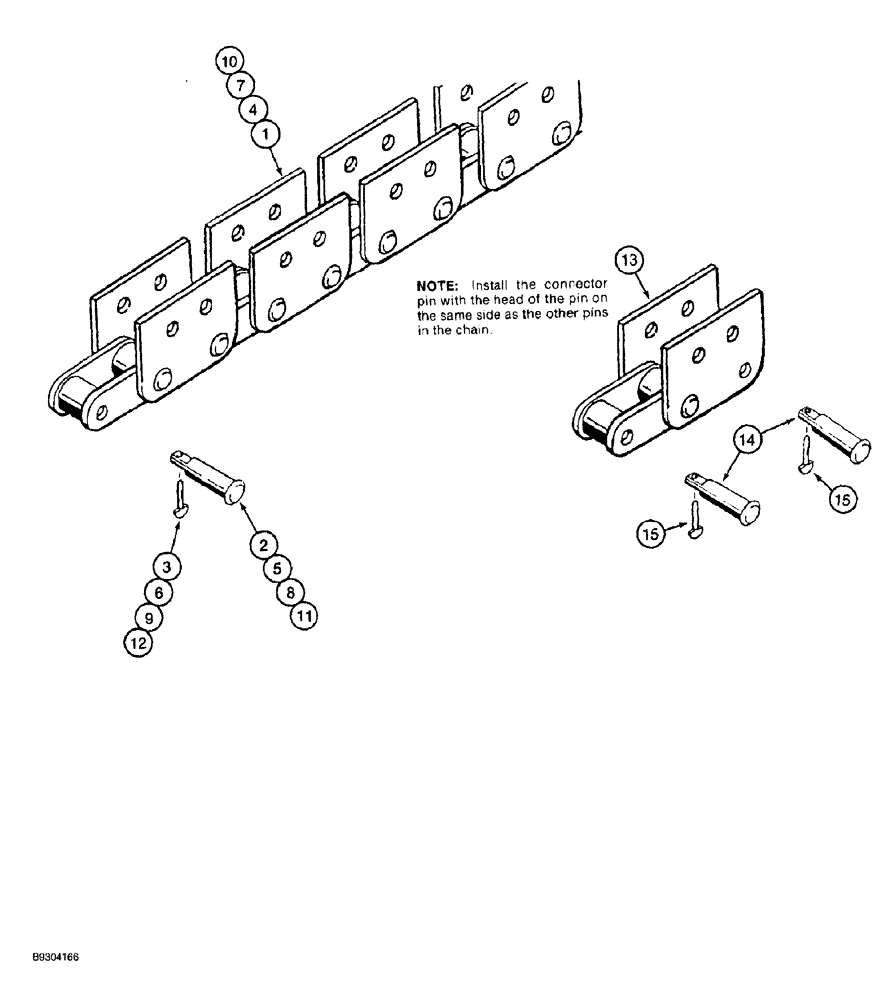

Схема запчастей Case MAXI-SNEAKER - (09-026) - DIGGING CHAIN ASSEMBLIES, 28,000 POUND TWO PITCH (09) - CHASSIS/ATTACHMENTS
15
13
4
8
6
5
11
14
3
7
10
1
15
9
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H673229

CHAIN (CE)

digging, 52 pitches, Includes: Ref. 2 and 3

1шт.

2

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

4

H673230

CHAIN (CE)

digging, 56 pitches, Includes: Ref. 5 and 6

1шт.

5

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

6

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

7

H673231

CHAIN (AG)

ASSEMBLY digging, 20 pitches, Includes: Ref. 8 and 9

1шт.

8

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

10

H673232

CHAIN (AG)

ASSEMBLY digging, 8 pitches, Includes: Ref. 11 and 12

1шт.

11

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

12

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.

13

H673237

CHAIN (CE)

SECTION ASSEMBLY repair, digging chain, 2 pitches, Includes: Ref. 14 and 15

1шт.

14

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

H30072 pin used with Rex chain. The 253215A1 round pin is used with Ballantine chain.

1шт.

15

H85274

SPLIT PIN/SAFETY PIN

retaining, copper

1шт.
