(09-022) - DIGGING TEETH, USED WITH 28,000 POUND TWO PITCH DIGGING CHAIN, 4 INCH AND 6 INCH WIDE CUT

Запчасти Case MAXI-SNEAKER (09-022) - DIGGING TEETH, USED WITH 28,000 POUND TWO PITCH DIGGING CHAIN, 4 INCH AND 6 INCH WIDE CUT (09) - CHASSIS/ATTACHMENTS

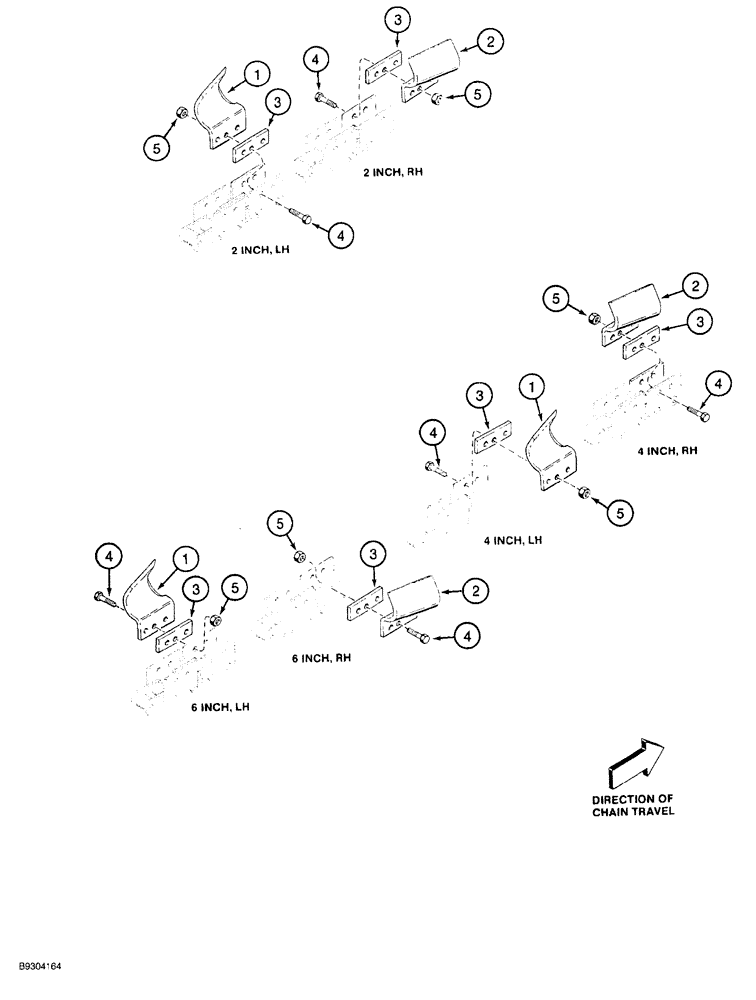

Схема запчастей Case MAXI-SNEAKER - (09-022) - DIGGING TEETH, USED WITH 28,000 POUND TWO PITCH DIGGING CHAIN, 4 INCH AND 6 INCH WIDE CUT (09) - CHASSIS/ATTACHMENTS
4
3
5
5
1
3
2
1
2
5
4
4
5
2
3
4
4
3
3
4
5
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H208363

TOOTH

digging, left hand

18-22шт.

2

H208371

TOOTH

digging, right hand

18-22шт.

3

H208355

SPACER

tooth

36-44шт.

4

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8

72-88шт.

5

232-4616

LOCK NUT,3/8"-24, GC

72-88шт.
