(02-004) - AIR CLEANER AND AIR INTAKE

Запчасти Case MAXI-SNEAKER (02-004) - AIR CLEANER AND AIR INTAKE (02) - ENGINE

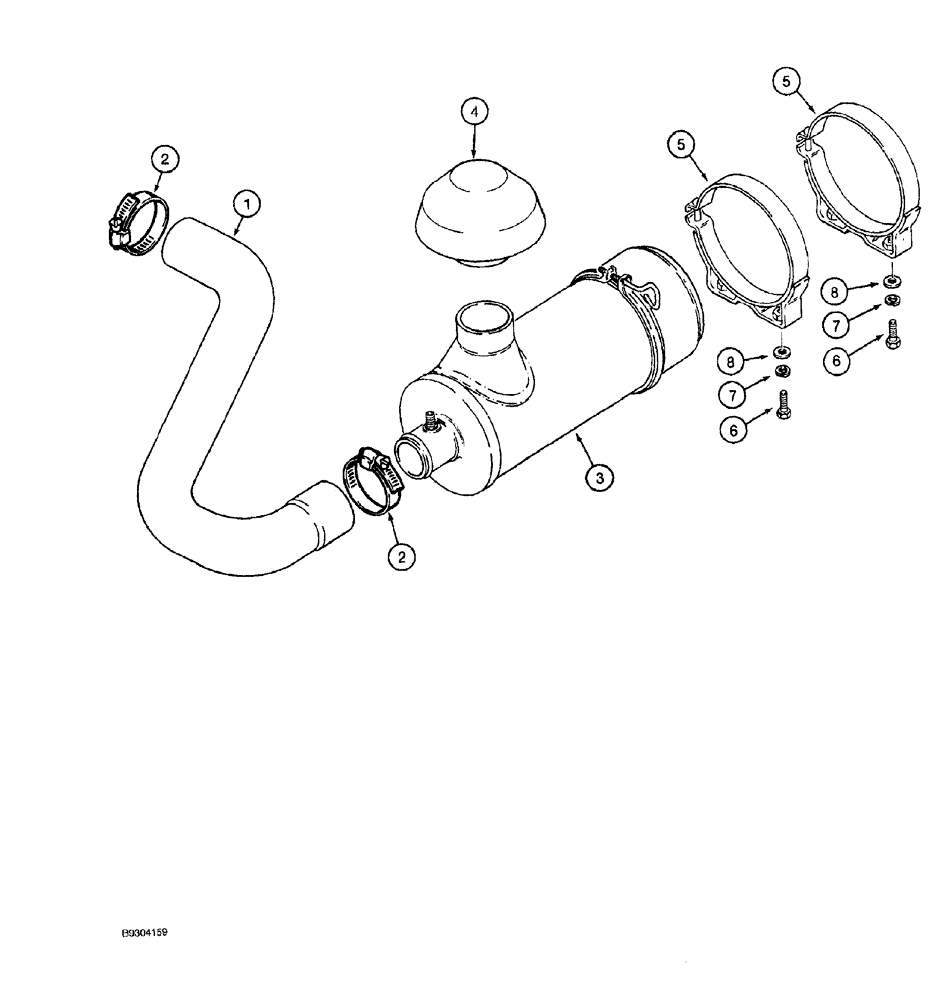

Схема запчастей Case MAXI-SNEAKER - (02-004) - AIR CLEANER AND AIR INTAKE (02) - ENGINE
7
7
2
8
6
4
5
2
8
1
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

110909A1

INTAKE AIR HOSE,44.00 mm ID, 51.00 mm ID x 251.00 mm

intake, air cleaner

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

Adj.

2шт.

3

H668939

AIR CLEANER

ASSEMBLY, see Figure 02-006

1шт.

4

123471A1

CAP

intake, air cleaner

1шт.

5

R41654

COLLAR CLAMP

mounting, air cleaner, includes hardware

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

492-11031

LOCK WASHER,5/16"

4шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

Выбрано товаров: 8
