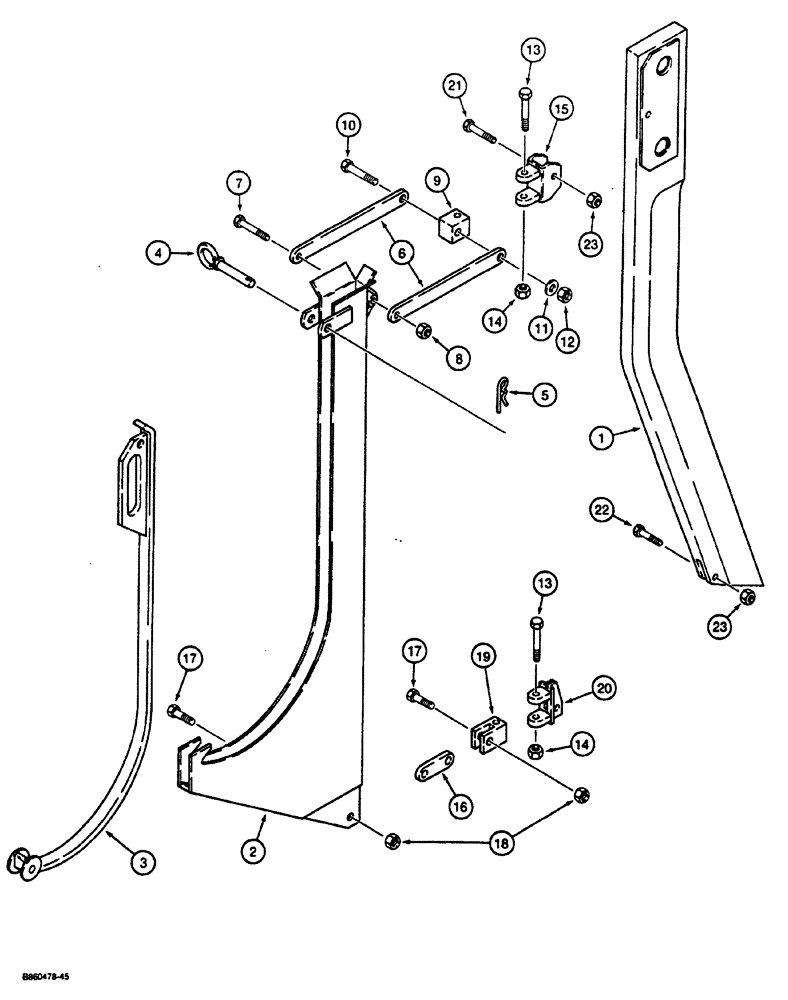

Запчасти Case CASE (9-50) - PLOW BLADES AND CHUTES, BENT BLADE - 1" X 24" X 3/4" CLEARANCE (09) - CHASSIS

H936401

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 24" (610 mm) cover depth x 3/4" (19 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 1 - 23

1шт.

1

H639583

BLADE

1" (25 mm) x 24" (610 mm)

1шт.

H659029

CHUTE ASSY.

with attaching parts, Includes: Ref. 2 - 23

1шт.

2

H658260

CHUTE ASSY.

cable

1шт.

3

H658302

CHUTE (DOWNWARD)

GATE

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

H32292

PIN

hair, gate pin

1шт.

6

H409540

LINK

chute to blade hinge, upper

2шт.

7

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4"

1шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

1шт.

9

H133744

BLOCK

HINGE chute, upper

1шт.

10

H409466

BOLT

hex head, special, 1/2"-20 NF x 2-1/4"

1шт.

11

195-533

WASHER,1/2", SAE

1шт.

12

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, plated, 1/2"-20 NF

1шт.

13

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

14

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

hex, self-locking, plated, 3/8"-16 NC

2шт.

15

H535674

BRACKET

BRACKET blade, hinge mounting, upper

1шт.

16

H409342

LINK

chute to blade hinge, lower

1шт.

17

H409474

BOLT

hex head, special, 1/2"-20 NF x 1-1/2"

2шт.

18

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, plated, 1/2"-20 NF

2шт.

19

H150771

BLOCK

HINGE chute, lower

1шт.

20

H535666

ADAPTER

BRACKET blade, hinge mounting, lower

1шт.

21

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

hex head, plated, 3/8"-24 NF x 2"

1шт.

22

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16"

1шт.

23

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

2шт.
