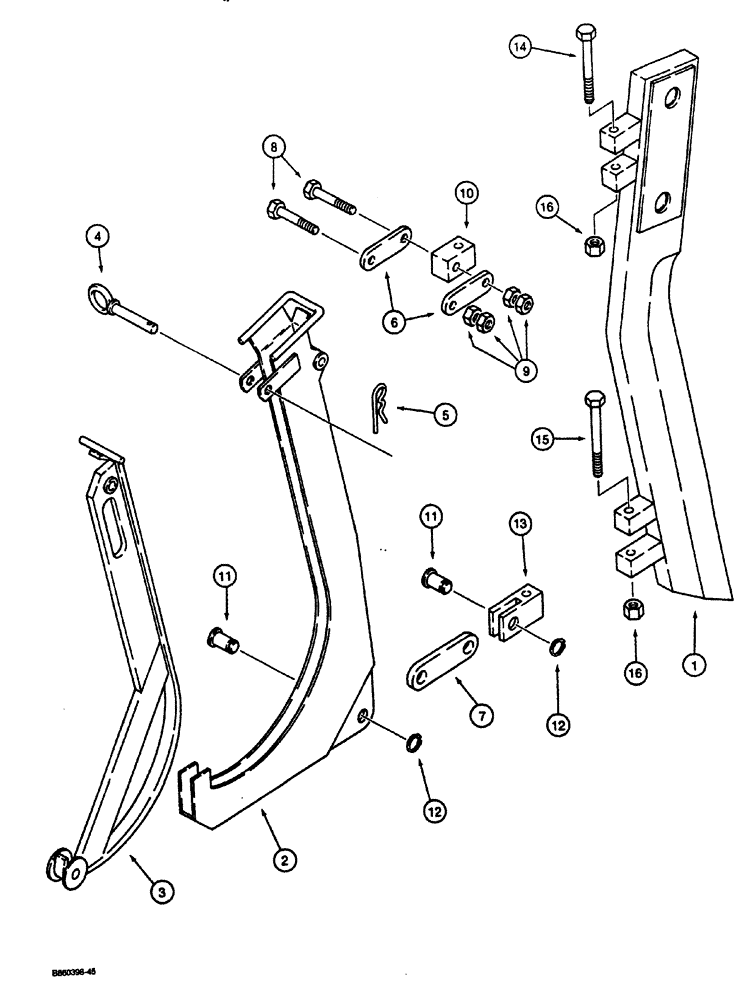

Запчасти Case CASE (9-48) - PLOW BLADES AND CHUTES, BENT BLADE - 1" X 18" X 3/4" CLEARANCE (09) - CHASSIS

H938878

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 18" (457 mm) cover depth x 3/4" (19 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 1 - 16

1шт.

1

H670406

CHUTE ASSY.

BLADE, 1" (25 mm) x 18" (457 mm)

1шт.

2

H670414

CHUTE ASSY.

cable

1шт.

3

H669523

DOOR

GATE chute

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

H32292

PIN

hair, gate pin

1шт.

6

H429514

LINK

chute to blade hinge, upper

2шт.

7

H429506

LINK

chute to blade hinge, lower

1шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex head, plated, 1/2"-13 NC x 2-1/2"

2шт.

9

131-1308

JAM NUT,Jam, 1/2"-13

4шт.

10

H429670

PIVOT

HINGE chute, upper

1шт.

11

H433152

PIN

lower link to chute and hinge

2шт.

12

A33531

SNAP RING,#75, Ext

pin #75, Ext

2шт.

13

H429530

PIVOT

HINGE chute, lower

1шт.

14

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

15

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

hex, self- locking, plated, 1/2"-13 NC

2шт.
