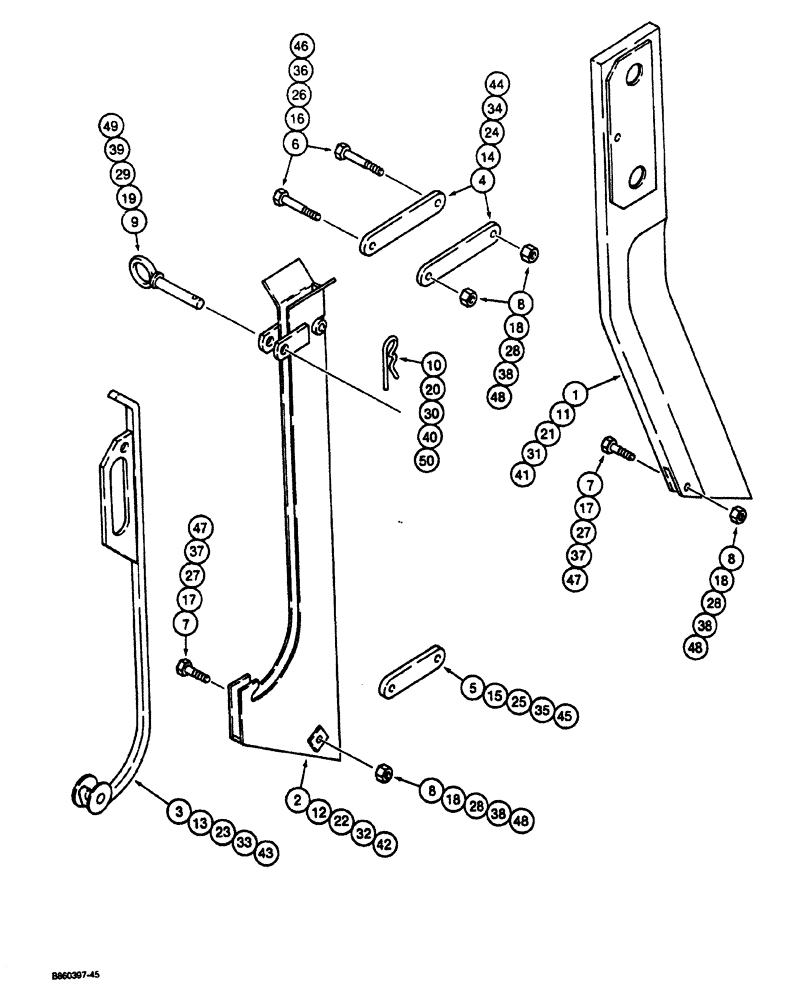

Запчасти Case CASE (9-44) - PLOW BLADES AND CHUTES, BENT BLADE - 3/8" - 5/8" CLEARANCE (09) - CHASSIS

H936336

BLADE AND CHUTE ASSEMBLY, 3/4" (19 mm) wide blade x 12" (305 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 1 - 10

1шт.

1

H639542

HALF BLADE

3/4" (19 mm) x 12" (305 mm)

1шт.

H648717

CHAIN (CE)

CHUTE, with attaching parts, Includes: Ref. 2 - 10

1шт.

2

H647305

GUIDE

CHUTE cable

1шт.

3

H647313

CHUTE ASSY.

GATE

1шт.

4

H387563

LINK

chute to blade, upper

2шт.

5

H127258

DRAG LINK

chute to blade, lower

1шт.

6

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

7

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

9

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

10

H32292

PIN

hair, gate pin

1шт.

H936344

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 12" (305 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 11 - 20

1шт.

11

H639567

BLADE

1" (25 mm) x 12" (305 mm)

1шт.

H648758

ATTACHMENT

CHUTE ASSEMEMBLY, Includes: Ref. 12 - 20

1шт.

12

H647347

CHUTE (DOWNWARD)

cable

1шт.

13

H647354

CHUTE ASSY.

GATE

1шт.

14

H387563

LINK

chute to blade, upper

2шт.

15

H127258

DRAG LINK

chute to blade, lower

1шт.

16

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

17

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

19

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

20

H32292

PIN

hair, gate pin

1шт.

H936351

BLADE AND CHUTE ASSEMBLY, 3/4" (19 mm) wide blade x 18" (457 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 21 - 30

1шт.

21

H639559

HALF BLADE

3/4" (19 mm) x 18" (457 mm)

1шт.

H648733

CHAIN (CE)

CHUTE, with attaching parts, Includes: Ref. 22 - 30

1шт.

22

H647321

CHUTE (DOWNWARD)

cable

1шт.

23

H647339

CHUTE ASSY.

GATE

1шт.

24

H387571

DRAG LINK

chute to blade, upper

2шт.

25

H127258

DRAG LINK

chute to blade, lower

1шт.

26

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

27

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

2шт.

28

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

29

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

30

H32292

PIN

hair, gate pin

1шт.

H936369

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 18" (457 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 31 - 40

1шт.

31

H639575

BLADE

1" (25 mm) x 18" (457 mm)

1шт.

H648774

BAR

CHUTE ASSEMBLY, with attaching parts, Includes: Ref. 32 - 40

1шт.

32

H647362

BAR

CHUTE cable

1шт.

33

H647370

DOOR

GATE chute

1шт.

34

H387571

DRAG LINK

chute to blade, upper

2шт.

35

H127258

DRAG LINK

chute to blade, lower

1шт.

36

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

37

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

38

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

39

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

40

H32292

PIN

hair, gate pin

1шт.

H936377

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 24" (610 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 41 - 50

1шт.

41

H639583

BLADE

1" (25 mm) x 24" (610 mm)

1шт.

H648790

CHAIN (AG)

CHUTE ASSEMBLY, with attaching parts, Includes: Ref. 42 - 50

1шт.

42

H647388

CHUTE ASSY.

cable

1шт.

43

H647396

DOOR SEAL

GATE chute

1шт.

44

H387589

DRAG LINK

chute to blade, upper

2шт.

45

H127258

DRAG LINK

chute to blade, lower

1шт.

46

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

47

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

48

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

49

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

50

H32292

PIN

hair, gate pin

1шт.
