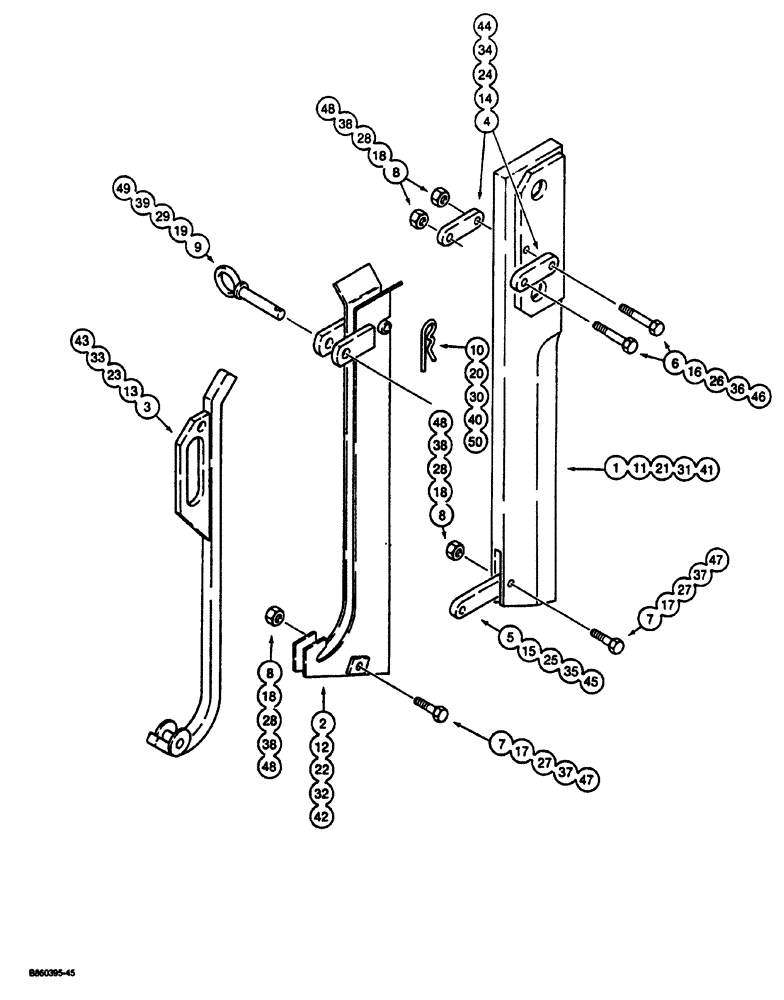

Запчасти Case CASE (9-36) - PLOW BLADES AND CHUTES, STRAIGHT BLADE - 3/8" - 5/8" CLEARANCE (09) - CHASSIS

H936286

BLADE AND CHUTE ASSEMBLY, 3/4" (19 mm) wide blade x 12" (305 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 1 - 10

1шт.

1

H639427

HALF BLADE

3/4" (19 mm) x 12" (305 mm)

1шт.

H648709

CHAIN (CE)

CHUTE, with attaching parts, Includes: Ref. 2 - 10

1шт.

2

H647404

CHUTE (DOWNWARD)

cable

1шт.

3

H647412

CHUTE ASSY.

GATE

1шт.

4

H116756

DRAG LINK

chute to blade, upper

2шт.

5

H127258

DRAG LINK

chute to blade, lower

1шт.

6

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

7

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

9

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

10

H32292

PIN

hair, gate pin

1шт.

H936294

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 12" (305 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 11 - 20

1шт.

11

H639393

BLADE

1" (25 mm) x 12" (305 mm)

1шт.

H648741

ATTACHMENT

CHUTE ASSEMBLY, Includes: Ref. 12 - 20

1шт.

12

H647446

SCRAPER

CHUTE cable

1шт.

13

H647453

CHUTE ASSY.

GATE

1шт.

14

H116756

DRAG LINK

chute to blade, upper

2шт.

15

H127258

DRAG LINK

chute to blade, lower

1шт.

16

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

17

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

19

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

20

H32292

PIN

hair, gate pin

1шт.

H936302

BLADE AND CHUTE ASSEMBLY, 3/4" (19 mm) wide blade x 18" (457 mm) cover depth x 3/8" (9.5 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 21 - 30

1шт.

21

H639435

BLADE

3/4" (19 mm) x 18" (457 mm)

1шт.

H648725

CHAIN (CE)

CHUTE, with attaching parts, Includes: Ref. 22 - 30

1шт.

22

H647420

CHUTE (DOWNWARD)

cable

1шт.

23

H647438

CHUTE ASSY.

GATE

1шт.

24

H116756

DRAG LINK

chute to blade, upper

2шт.

25

H127258

DRAG LINK

chute to blade, lower

1шт.

26

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

27

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

2шт.

28

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

29

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

30

H32292

PIN

hair, gate pin

1шт.

H936310

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 18" (457 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 31 - 40

1шт.

31

H639401

BLADE

1" (25 mm) x 18" (457 mm)

1шт.

H648766

ATTACHMENT

CHUTE ASSEMBLY, Includes: Ref. 32 - 40

1шт.

32

H647461

CHAIN (AG)

CHUTE cable

1шт.

33

H647479

CHUTE ASSY.

GATE

1шт.

34

H116756

DRAG LINK

chute to blade, upper

2шт.

35

H127258

DRAG LINK

chute to blade, lower

1шт.

36

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

37

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

38

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

39

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

40

H32292

PIN

hair, gate pin

1шт.

H936328

BLADE AND CHUTE ASSEMBLY, 1" (25 mm) wide blade x 24" (610 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, order from machinery price list, Includes: Ref. 41 - 50

1шт.

41

H639419

BLADE

1" (25 mm) x 24" (610 mm)

1шт.

H648782

BLADE

CHUTE ASSEMBLY, with attaching parts, Includes: Ref. 42 - 50

1шт.

42

H647487

CHUTE (DOWNWARD)

cable

1шт.

43

H647495

LARGE PLATE

PLATE, LARGE GATE chute

1шт.

44

H116756

DRAG LINK

chute to blade, upper

2шт.

45

H127258

DRAG LINK

chute to blade, lower

1шт.

46

H127340

BOLT

hex head, special, 3/8"-24 NF x 2-1/4", grade 8

2шт.

47

H127357

BOLT

hex head, special, 3/8"-24 NF x 1-5/16", grade 8

2шт.

48

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, plated, 3/8"-24 NF

4шт.

49

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

50

H32292

PIN

hair, gate pin

1шт.
