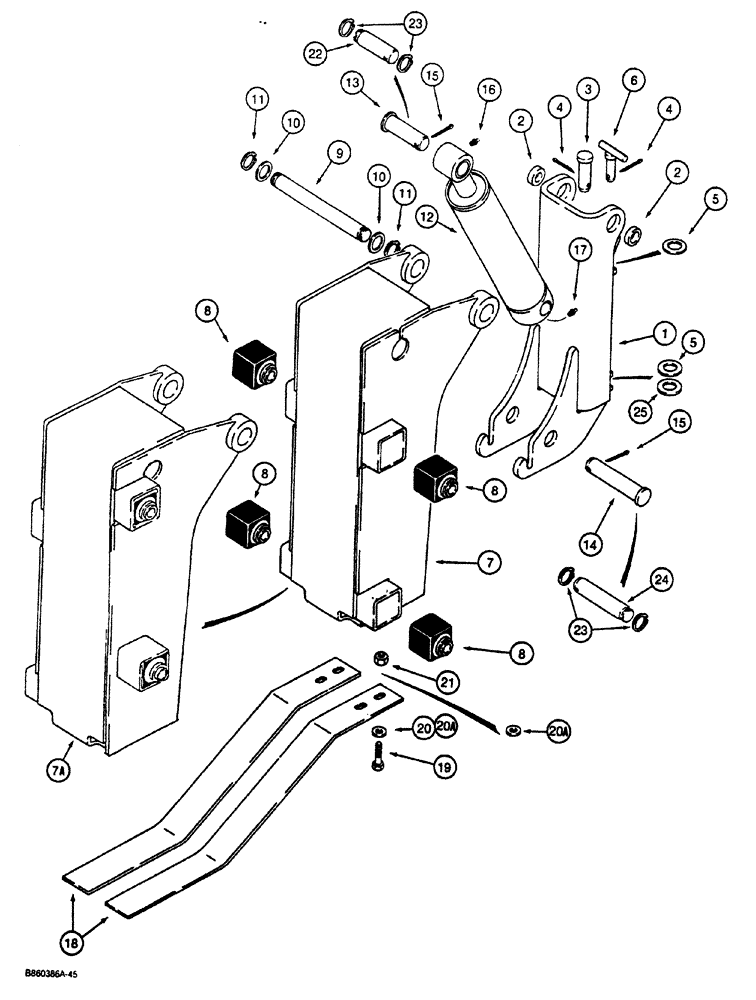

Запчасти Case CASE (9-32) - PLOW PIVOT FRAME, LIFT FRAME, AND CYLINDER (09) - CHASSIS

1

H673327

PIVOT

FRAME ASSEMBLY plow, Replaces: H668376, Includes: Ref. 2

1шт.

2

D34337

BUSHING

lift frame mounting pin

2шт.

3

H65011

AXLE PIN,25.3mm OD x 75.41mm L

clevis, special, pivot frame to main frame

2шт.

4

132-313

COTTER PIN,1/4" x 2"

2шт.

5

195-533

WASHER,1/2", SAE

Use as shim

1шт.

6

H582585

LOCK

PIN pivot frame

1шт.

7

H669085

FRAME ASSY

SPARE PART plow lift, no longer available, order Ref. 7A frame assembly for service

1шт.

7a

H673331

FRAME

ASSEMBLY plow lift, Includes: Ref. 8

1шт.

8

H235077

BUSHING

rubber

4шт.

9

H382457

AXLE PIN

lift frame to pivot frame

1шт.

10

H113241

BEARING WASHER

special, pin retaining

2шт.

11

D26918

SNAP RING,#125, Ext

#125, Ext

2шт.

12

H672060

CYLINDER

ASSEMBLY plow lift, parts list Figure 8-34

1шт.

13

H114975

AXLE PIN

lift cylinder to lift frame, no longer required, order one of Ref. 22 and two of Ref. 23 for service

1шт.

14

H225193

RETAINER

PIN lift cylinder to pivot frame, no longer required, order one of Ref. 24 and two of Ref. 23 for service

1шт.

15

132-351

COTTER PIN,1/4" x 2 1/4"

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Lower

1шт.

18

H436096

SPRING

lift frame, ground leveler, Replaces: H433588

2шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

195-533

WASHER,1/2", SAE

If used

4шт.

20a

H274894

WASHER

flat, 17/32" x 1-5/64" x 9/64", if used

8шт.

21

131-1182

LOCK NUT,1/2"-13, GA

hex, self-locking, plated, 1/2"-13 NC

4шт.

22

H434556

PIN

lift cylinder to lift frame

1шт.

23

D26918

SNAP RING,#125, Ext

#125, Ext

4шт.

24

H434557

PIN

lift cylinder to pivot frame

1шт.

25

195-453

WASHER,1 1/64" x 1 3/4" x .033"

Use as shim

1шт.
