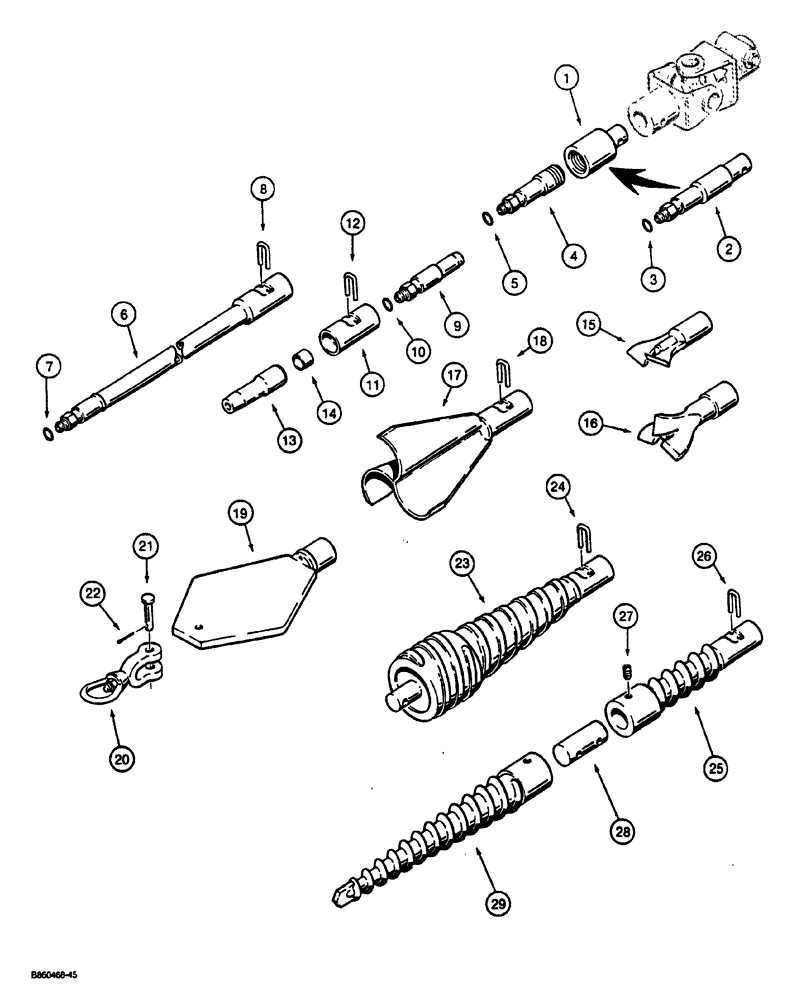

Запчасти Case CASE (9-30) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (09) - CHASSIS

1

H83352

ADAPTER

dry boring, male, 1" NPT, attaches to universal joint

1шт.

2

H646901

ADAPTER

dry boring, quick lock male, attaches to universal joint

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adapter

1шт.

4

H522383

ADAPTER

ADAPTER, 1" NPT male to quick lock male

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adapter

1шт.

6

H672563

EXTENSION

STEM drill, quick lock, 5' long

1шт.

6

H672562

ADAPTER

STEM drill, quick lock, 10' long

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Drill stem

1шт.

8

H94961

STAPLE

CLIP retainer, quick lock

1шт.

9

H434273

NIPPLE, LUBE

NIPPLE COUPLER male, quick lock

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Coupler

1шт.

11

H434272

COUPLING

female, quick lock

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING shaft, O-ring seat, order H672564 coupler assembly

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT stub, order H672564 coupler assembly

1шт.

14

H94961

STAPLE

CLIP retainer, quick lock

1шт.

15

H434271

COUPLING

SHAFT stub

1шт.

16

H434276

COUPLING

BUSHING shaft, O-ring seat

1шт.

17

H518837

BIT

drill, 2", two blade, 1" NPT female

1шт.

17

H518910

BIT

drill, 3", two blade, 1" NPT female

1шт.

18

H519249

BIT

drill, 3", three blade, 1" NPT female

1шт.

19

H522441

REAMER

back, quick lock female, 8"

1шт.

19

H522466

REAMER

back, quick lock female, 12"

1шт.

20

H94961

STAPLE

CLIP retainer, quick lock

1шт.

21

H519504

REAMER

fish plate, 4"

1шт.

21

H519652

REAMER

fish plate, 6"

1шт.

21

H528497

REAMER

fish plate, 8"

1шт.

22

H88195

FASTENER

SWIVEL reamer

1шт.

23

H32284

AXLE PIN

clevis, special, 3/8" x 1-3/4" long

1шт.

24

132-310

COTTER PIN,1/8" x 1"

1шт.

25

H522409

REAMER

compaction, quick lock female, 3-3/4"

1шт.

26

H94961

STAPLE

CLIP retainer, quick lock

1шт.

27

H522433

BIT

compaction, quick lock female, 2"

1шт.

28

H94961

STAPLE

CLIP retainer, quick lock

1шт.

29

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

hex socket head, 3/8"-16 NC x 1-3/4"

2шт.

30

H85233

COUPLING

bit

1шт.

31

H84988

BIT

compaction, end, 2"

1шт.
