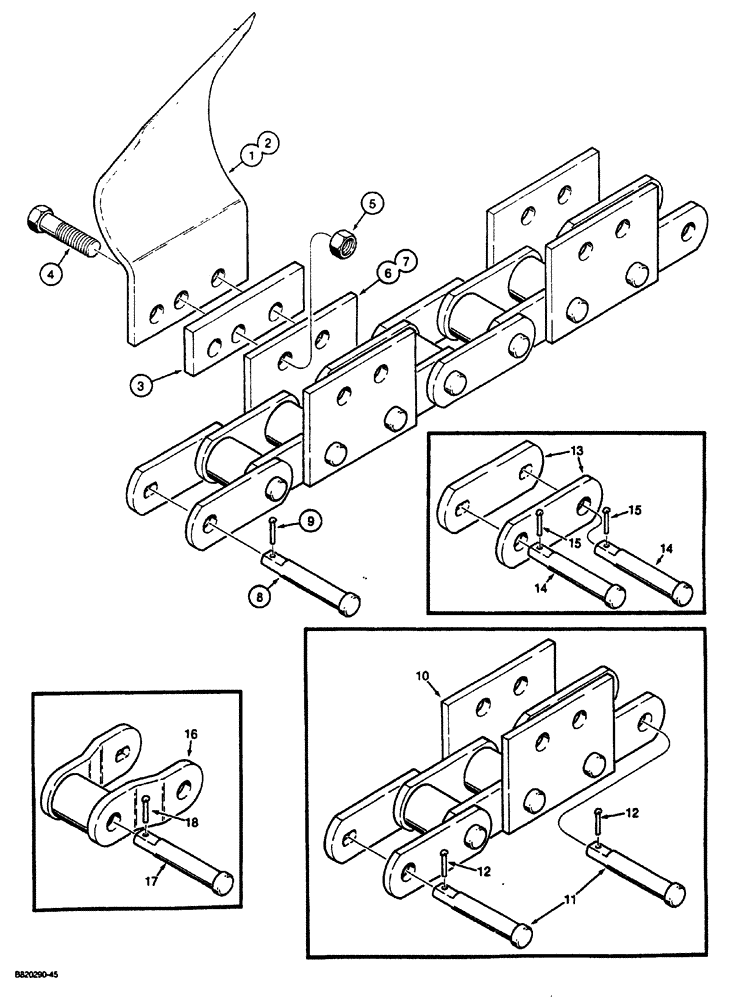

Запчасти Case CASE (9-22) - DIGGING TEETH AND CHAIN (09) - CHASSIS

1

H208363

TOOTH

digging, left-hand

7-9шт.

2

H208371

TOOTH

digging, right-hand

7-9шт.

3

H208355

SPACER

tooth

14-18шт.

4

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

28-36шт.

5

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

28-36шт.

6

H501791

CHAIN (CE)

digging, 56 pitches, Includes: Ref. 8 and 9, used alone on 24" boom, for 36" boom also order two Ref. 7 chain assemblies

1шт.

7

H519462

CHAIN (AG)

ASSEMBLY digging, 8 pitches, Includes: Ref. 8 and 9, two used with Ref. 6 chain assembly for 36" boom

2шт.

8

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

retaining, copper, interchangeable with P/N 132-334 cotter pin, shown below

1шт.

10

H502054

CHAIN (CE)

SECTION repair, 4 pitches, Includes: Ref. 11 and 12

1шт.

11

H30072

CONNECTOR, ELEC

CONNECTOR PIN

2шт.

12

H85274

SPLIT PIN/SAFETY PIN

retaining, copper, interchangeable with P/N 132-334 cotter pin, shown below

2шт.

13

H504068

DRAG LINK

ASSEMBLY connector, digging chain, Includes: Ref. 14 and 15

1шт.

14

H30072

CONNECTOR, ELEC

CONNECTOR PIN

2шт.

15

H85274

SPLIT PIN/SAFETY PIN

retaining, copper, interchangeable with P/N 132-334 cotter pin, shown below

2шт.

16

H59360

HALF-LINK

HALF LINK ASSEMBLY offset, digging chain, Includes: Ref. 17 and 18

1шт.

17

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

18

H85274

SPLIT PIN/SAFETY PIN

retaining, copper, interchangeable with P/N 132-334 cotter pin, shown below

1шт.

132-334

COTTER PIN,1/8" x 3/4"

Interchangeable with H85274 retaining pin, if used

1шт.
