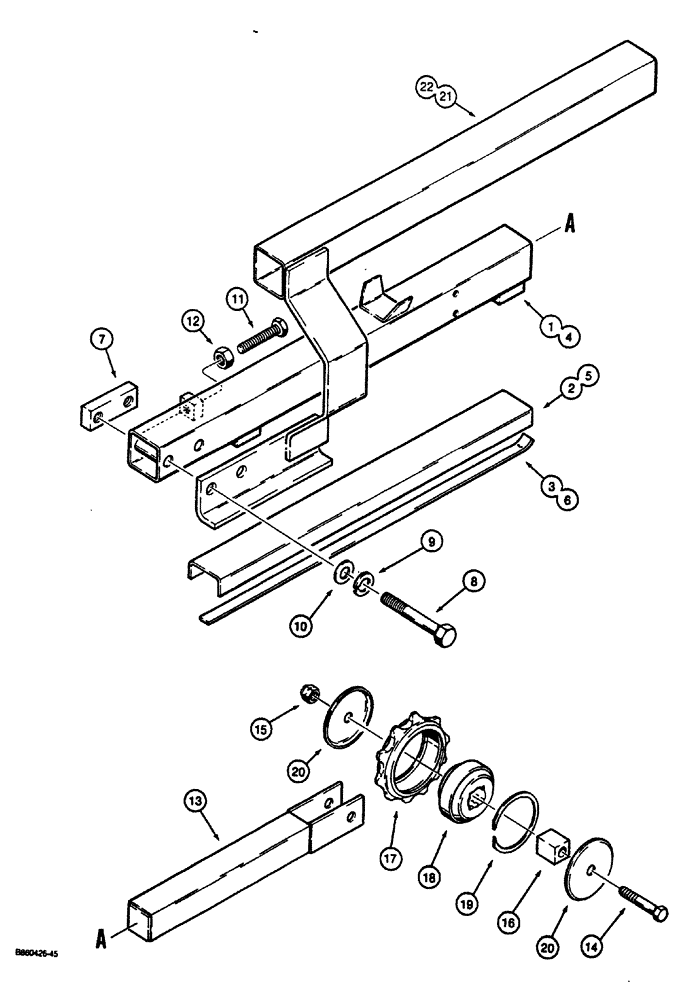

Запчасти Case CASE (9-18) - TRENCHER CHANNEL BOOM AND MOUNTING (09) - CHASSIS

1

H616086

BOOM

SPARE PART ASSEMBLY channel type, 12" (305 mm), if used, Includes: Ref. 2 and 3

1шт.

2

H315523

GUIDE

CHANNEL lower, weld on

1шт.

3

H315515

GUIDE

PLATE wear, weld to lower channel

1шт.

4

H613075

BOOM

ASSEMBLY channel type, 24" (610 mm), if used, Includes: Ref. 5 and 6

1шт.

5

H308585

GUIDE

CHANNEL lower, weld on

1шт.

6

H309401

GUIDE

PLATE wear, weld to lower channel

1шт.

7

H306191

PLATE ASSY.

lock

1шт.

8

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

2шт.

10

195-541

WASHER,5/8", SAE

2шт.

11

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

special adjusting, 1/2"-13 NC x 3-3/4"

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

13

H613083

END ASSY.

channel boom, weld on

1шт.

14

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

15

131-1130

LOCK NUT,5/8"-11, GA

1шт.

16

H232645

BUSHING

square

1шт.

17

H33563

DRIVE SPROCKET

end

1шт.

18

H747139

BALL BEARING

sprocket

1шт.

19

H33837

RING

retaining, sprocket bearing

1шт.

20

H350785

WASHER

special

2шт.

21

REF

INSTRUCTION

GUARD digging chain, used with 24" (610 mm) boom assembly, machinery item, order form machinery price list

1шт.

22

REF

INSTRUCTION

GUARD digging chain, used with 36" (914 mm) boom assembly, machinery item, order from machinery price list

1шт.
