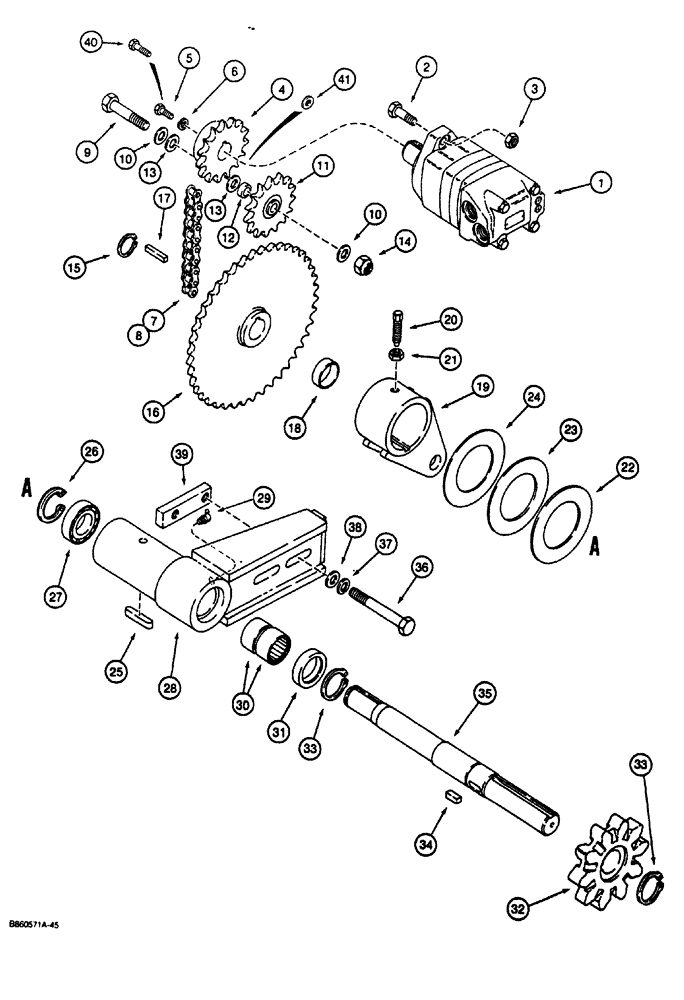

Запчасти Case CASE (9-16) - TRENCHER DRIVE LINE MOUNTING (09) - CHASSIS

1

H660373

MOTOR, HYDRAULIC

ASSEMBLY trencher drive, parts list Figure 8-14

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

hex, self-locking, plated, 1/2"-13 NC

2шт.

4

H660217

DRIVE SPROCKET

motor

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

1шт.

6

192-21

LOCK WASHER,3/8"

1шт.

7

H758862

CHAIN (AG)

ASSEMBLY trencher drive, Includes: Ref. 8

1шт.

8

D83132

LINK

connecting, chain

1шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

10

195-108

WASHER,5/8"

flat, plated, 5/8"

2шт.

11

H747386

DRIVE SPROCKET

idler

1шт.

12

H114140

SPACER

idler sprocket

1шт.

13

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

2шт.

14

131-1130

LOCK NUT,5/8"-11, GA

1шт.

15

A7409

SNAP RING,#137, Ext

digging chain drive sprocket #137, Ext

1шт.

16

H415554

DRIVE SPROCKET

digging chain

1шт.

17

H415604

KEY

, Serial Range: sprocket-shaft

1шт.

18

H415562

SPACER

sprocket

1шт.

19

H413492

ARM

CRANK boom

1шт.

20

H33746

SET SCREW,1/2" - 20 x 2 1/4"

set, boom crank

1шт.

21

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

22

H260943

SHIM,.135" Thk

Crank (3.416 mm)

1шт.

23

H260950

SHIM,.060" Thk

Crank (1.519 mm)

1шт.

24

H261834

SHIM,.030" Thk

Crank (0.762 mm)

1шт.

25

H413625

KEY

, Serial Range: crank-boom

1шт.

26

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

1шт.

27

38742

BALL BEARING

boom

1шт.

28

H413419

ARM

BRACKET mounting, boom pivot

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

30

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

boom

2шт.

31

H758854

OIL SEAL

boom

1шт.

32

H404004

DRIVE SPROCKET

idler, digging chain

1шт.

33

R13338

SNAP RING,#150, Ext

idler sprocket to shaft #150, Ext

2шт.

34

H404012

KEY

idler, Serial Range: sprocket-shaft

1шт.

35

H407528

SHAFT

trencher drive

1шт.

36

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

37

192-25

LOCK WASHER,5/8"

2шт.

38

195-541

WASHER,5/8", SAE

2шт.

39

H306191

PLATE ASSY.

lock

1шт.

40

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used

1шт.

41

195-525

WASHER,3/8", SAE

Used with Ref. 40 bolt only, if used

1шт.
