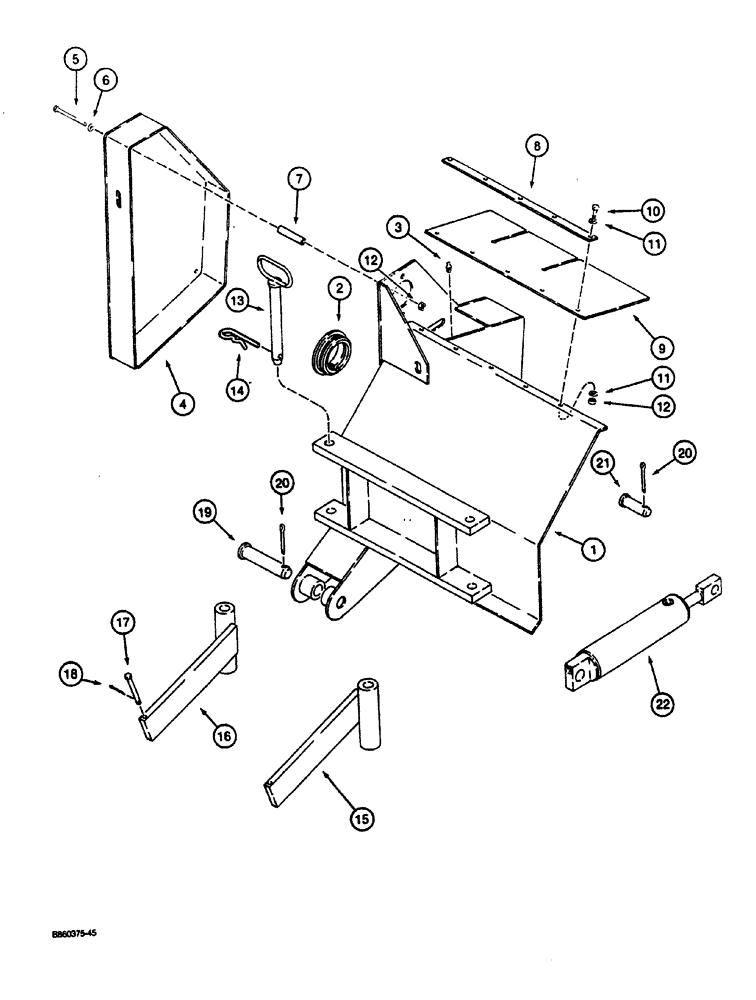

Запчасти Case CASE (9-14) - TRENCHER FRAME AND MOUNTING (09) - CHASSIS

1

H660142

CHASSIS

FRAME trencher, Includes: Ref. 2 and 3

1шт.

2

H413294

BUSHING

Frame

2шт.

3

219-3

LUBE NIPPLE,1/8" - 27 NPTF

grease, special short, 1/8" NPT

2шт.

4

H660191

COVER

chain

1шт.

5

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

6

195-521

WASHER,5/16", SAE

3шт.

7

H413302

SPACER

bolt

3шт.

8

H314237

STRIP

STRAP dirt flap

1шт.

9

H426718

FLAP

dirt deflector

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

11

195-521

WASHER,5/16", SAE

10шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

6шт.

13

H660209

PIN

mounting

2шт.

14

A70250

PIN

hair, mounting pin

2шт.

15

H660175

ARM

mounting

1шт.

16

H660183

ARM

mounting

1шт.

17

H230243

CLEVIS COUPLING

PIN, 3/8" x 3-5/8" long

2шт.

18

132-334

COTTER PIN,1/8" x 3/4"

2шт.

19

H257048

PIN,28.5mm OD x 146.05mm L

mounting, cylinder head end

1шт.

20

132-307

COTTER PIN,1/4" x 1 3/4"

2шт.

21

H65011

AXLE PIN,25.3mm OD x 75.41mm L

clevis, special

1шт.

22

H504076

CYLINDER BLOCK

ASSEMBLY trencher boom lift, parts list Figure 8-16

1шт.
