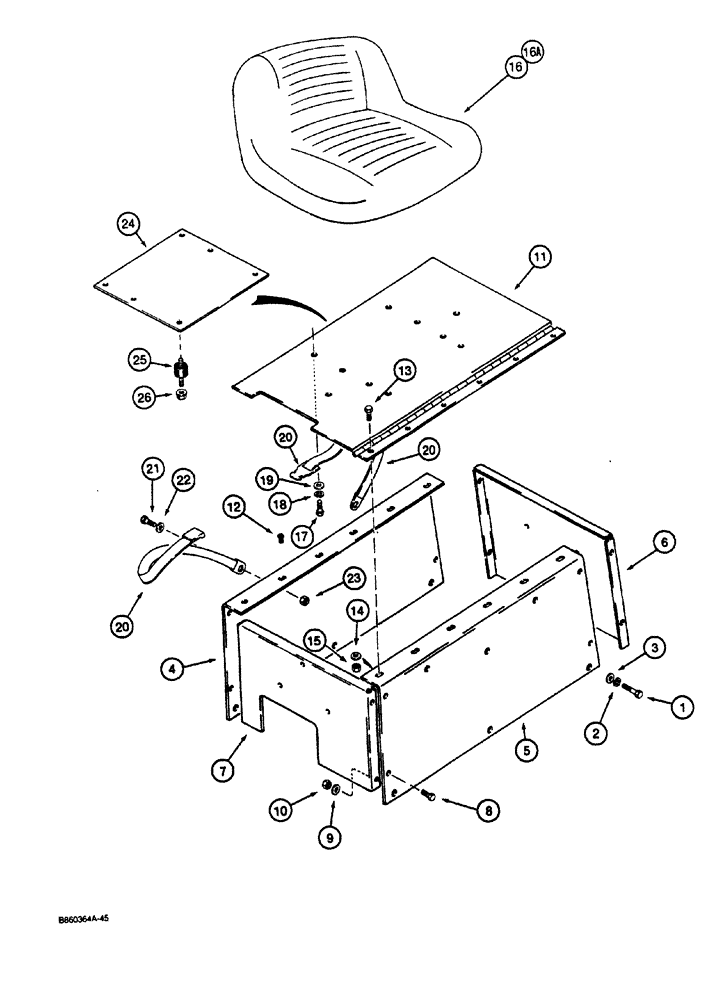

Запчасти Case CASE (9-08) - SEAT AND SEAT MOUNTING (09) - CHASSIS

1

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

3

H426775

WASHER

flat, hardened, plated

6шт.

4

H629485

PANEL, SIDE

SPARE PART left

1шт.

5

H629493

PANEL, SIDE

SPARE PART right

1шт.

6

H431791

PANEL

SPARE PART front cover

1шт.

7

H431734

PANEL

rear cover

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9

195-521

WASHER,5/16", SAE

8шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

8шт.

11

H671115

PLATE

seat mounting

1шт.

12

H66522

BUMPER

rubber, hood

4шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

14

195-518

WASHER,1/4", SAE

6шт.

15

131-1180

LOCK NUT,1/4"-20, GA

6шт.

16

H429316

SEAT

ASSEMBLY operators, parts list Figure 9-10, used on models, Serial Range: -JAF0023186

1шт.

16a

H436146

SEAT

ASSEMBLY operators, parts list Figure 9-10, used on models with, Start Serial: JAF0023186

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2-4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2-4шт.

19

195-521

WASHER,5/16", SAE

2-4шт.

20

D75997

SAFETY BELT ,1.80" W

1шт.

21

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

22

195-105

WASHER,7/16"

flat, plated, 7/16"

2шт.

23

131-1170

LOCK NUT,7/16"-20, GA

2шт.

24

H436119

LARGE PLATE

PLATE, LARGE adapter, seat mounting, used on models with, Serial Range: JAF0003587-JAF0023186

1шт.

25

H359216

MOUNTING PARTS

vibration, seat mounting, rubber, used on models with, Start Serial: JAF0003587

4шт.

26

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" NC

4шт.
