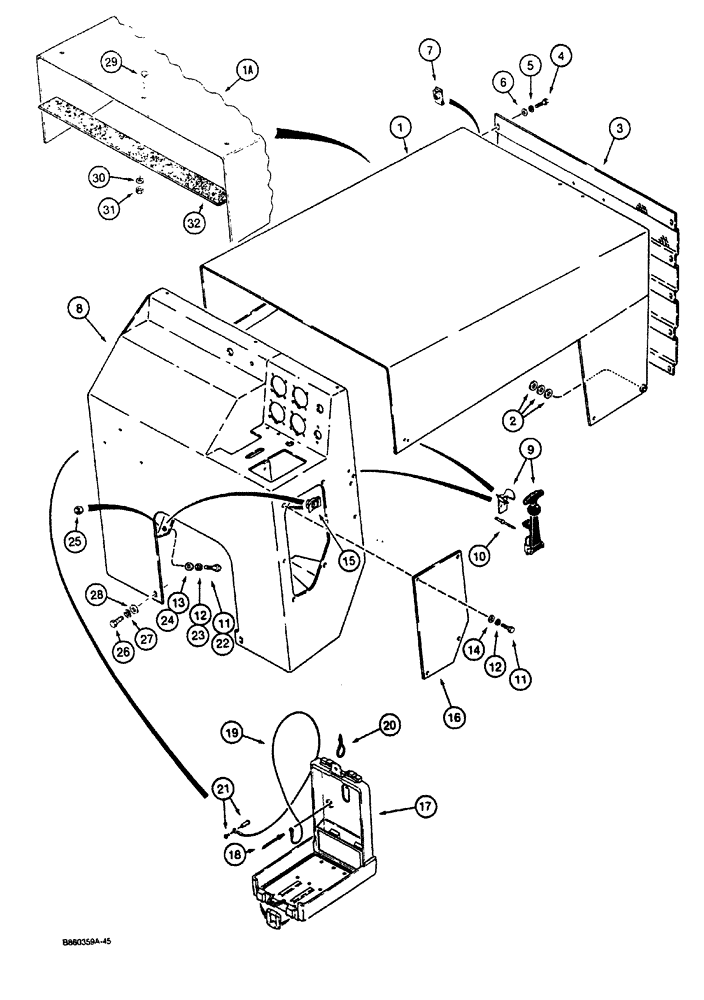

Запчасти Case CASE (9-06) - HOOD, GRILLE, AND CONSOLE (09) - CHASSIS

1

H665307

HOOD ASSY.

SPARE PART tractor, used on models, no longer available, order Ref. 1A hood listed below and Ref. 11A bracket on Figure 9-02 for service, Serial Range: -JAF0023305

1шт.

1a

H672988

HOOD ASSY.

tractor, used on models with, Start Serial: JAF0023305

1шт.

2

195-533

WASHER,1/2", SAE

Used with Ref. 1 hood only

6шт.

3

H422402

GRILLE

SCREEN

1шт.

4

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

10шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

10шт.

6

195-518

WASHER,1/4", SAE

10шт.

7

131-631

SPRING NUT,U, Ret, 1/4"-20

U, 1/4" NC

10шт.

8

H665489

CONSOLE

SPARE PART ASSEMBLY tractor

1шт.

9

H628263

LATCH ASSY.

hood

2шт.

10

151-558

RIVET,Pop, 3/16" x .450"

pop, 3/16" x 1/2"

8шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4-8шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4-8шт.

13

H426775

WASHER

flat, hardened, plated

4шт.

14

195-521

WASHER,5/16", SAE

4шт.

15

H346650

NUT

U console cover

4-8шт.

16

H433799

COVER

PANEL console

1шт.

17

R46464

CASE

BOX operators manual

1шт.

18

151-522

RIVET,Pop, 3/16" x .575"

3шт.

19

R46465

CABLE,36mm L

CORD manual retaining

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, manual box

1шт.

21

R46463

SCREW,0.18" x 0.75"

POST manual retaining, 3/16" x 3/4" long

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32" x 13/16" x 3/32"

4шт.

25

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, flange type, special locking, 3/8" NC

4шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

H274894

WASHER

flat, 17/32" x 1-5/64"

2шт.

29

111-118

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

Used with Ref. 1A hood only

3шт.

30

195-518

WASHER,1/4", SAE

(9/32" x 5/8" x 1/16"), Used with Ref. 1A hood only

3шт.

31

131-1180

LOCK NUT,1/4"-20, GA

Used with Ref. 1A hood only

3шт.

32

H435284

SEAL

rubber, hood, used on models with, Start Serial: JAF0023305

1шт.
