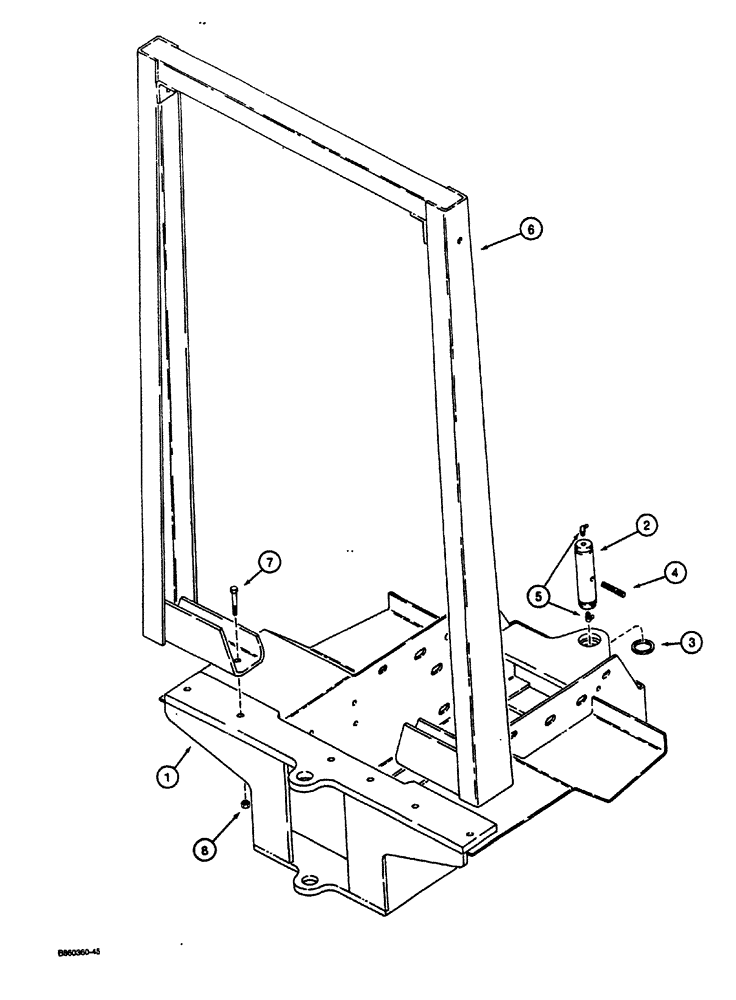

Запчасти Case CASE (9-04) - REAR FRAME AND ROPS CANOPY (09) - CHASSIS

1

H668434

FRAME

SPARE PART rear

1шт.

2

H371054

PIVOT PIN

1шт.

3

H257915

SHIM,0.813mm Thk

(.031"), Pivot pin

1шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

2шт.

6

REF

INSTRUCTION

CANOPY, ROPS, machinery item, see Figure 2 for ordering

1шт.

7

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

8

131-1153

LOCK NUT,1/2"-13, GC

4шт.
