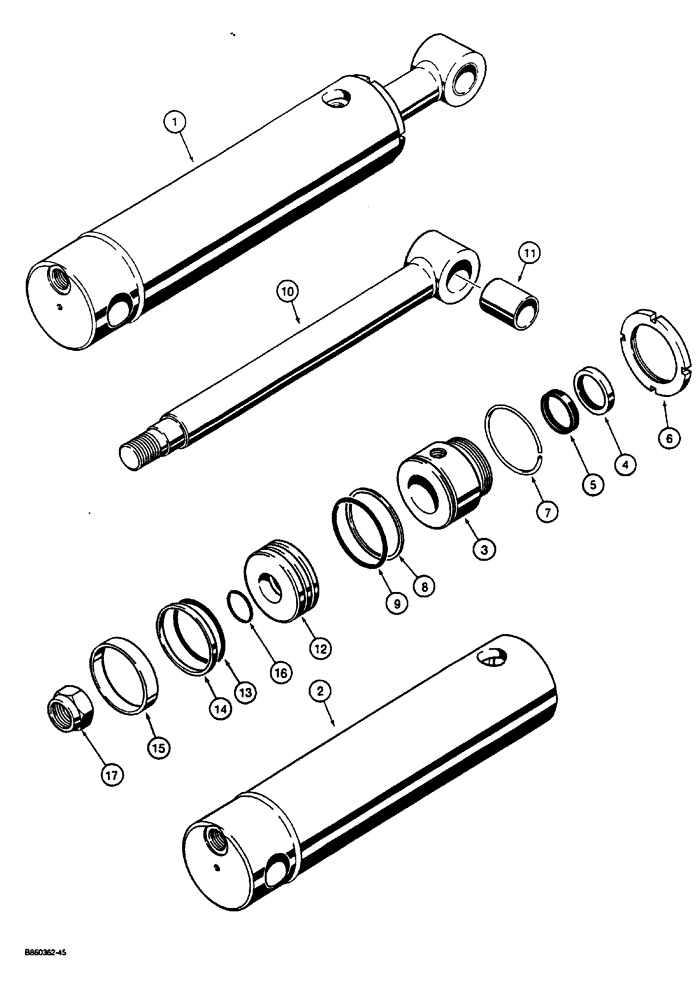

Запчасти Case CASE (8-34) - PLOW LIFT CYLINDER (08) - HYDRAULICS

1

H672060

CYLINDER

ASSEMBLY plow lift, 3" (76 mm) ID x 8" (203 mm) stroke, Cessna No. 41300-NBL, Includes: Ref. 2 - 17

1шт.

2

N13659

JACK BODY

TUBE cylinder

1шт.

3

H120360

BEARING

GLAND cylinder

1шт.

4

A41785

WIPER SEAL

rod

1шт.

Part of Seal Kit P/N N13662

1шт.

5

H220558

SEAL

rod

1шт.

Part of Seal Kit P/N N13662

1шт.

6

H745794

BEARING LOCK NUT

NUT gland locking, special

1шт.

7

H52761

RING

retaining, gland

1шт.

Part of Seal Kit P/N N13662

1шт.

8

H745760

WASHER

RING backup, gland O-ring, outer

1шт.

Part of Seal Kit P/N N13662

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

gland, outer

1шт.

Part of Seal Kit P/N N13662

1шт.

10

N13660

STEM

piston

1шт.

11

H220624

RING

BUSHING rod eye

1шт.

12

N13661

PISTON

cylinder

1шт.

13

N13688

O-RING,2.609" ID x 2.887" OD x 0.139"

piston seal, outer

2шт.

Part of Seal Kit P/N N13662

1шт.

14

H120188

RING

SEAL piston, outer

2шт.

Part of Seal Kit P/N N13662

1шт.

15

H252833

RING

wear, piston

1шт.

Part of Seal Kit P/N N13662

1шт.

16

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

piston seal, inner

1шт.

Part of Seal Kit P/N N13662

1шт.

17

131-1141

LOCK NUT,1 1/8" - 12, Gr A

hex, plated, 1-1/8"-12 NF

1шт.

N13662

SEAL ASSY.

KIT, Includes: Ref. 4, 5, 7, 8, 9, 13, 14, 15 and 16

1шт.
