Запчасти Case CASE (8-32) - PLOW MOTOR (08) - HYDRAULICS

H672064

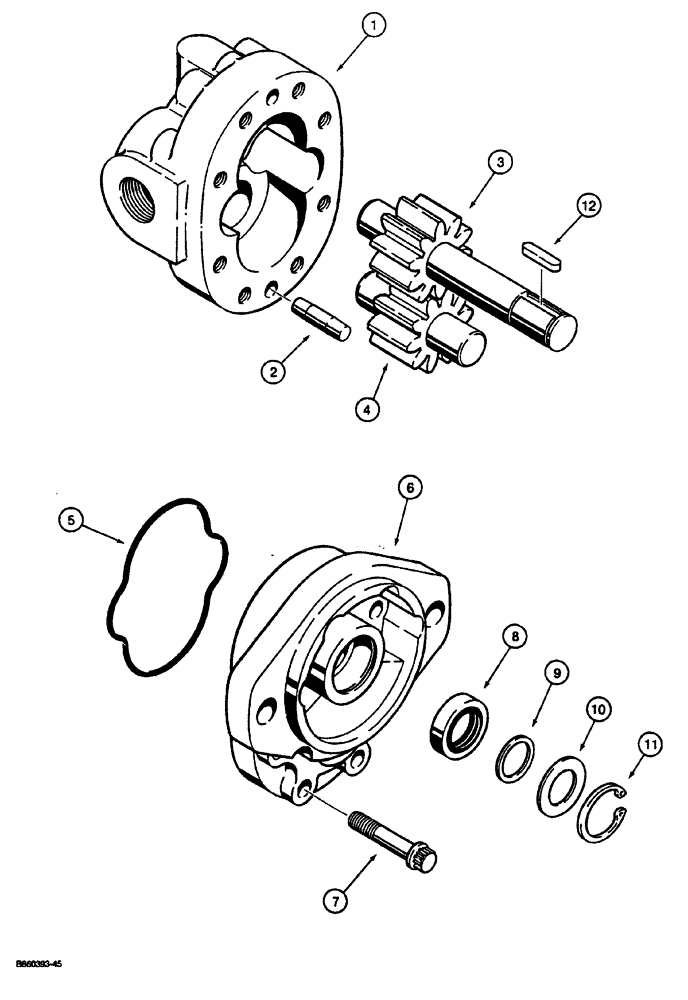

MOTOR, HYDRAULIC

ASSEMBLY plow, Cessna No. 21307-RAA, Includes: Ref. 1 - 12

1шт.

1

N13692

HOUSING

port end

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

dowel, housing

2шт.

3

H660266

SHAFT

GEAR drive

1шт.

4

H656645

GEAR, IDLER

GEAR,IDLE driven

1шт.

5

R20165

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

housing seal

1шт.

6

H656660

FRONT PLATE

HOUSING output shaft end

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

ferry head, 5/16"-18 NC x 1-1/2", grade 8

8шт.

8

N13691

SEAL

shaft, output

1шт.

9

H418004

WASHER

backup

1шт.

10

H94490

WASHER

special

1шт.

11

A36277

SNAP RING,1.125", Int, #112

Seal

1шт.

12

H413575

KEY

drive shaft

1шт.
