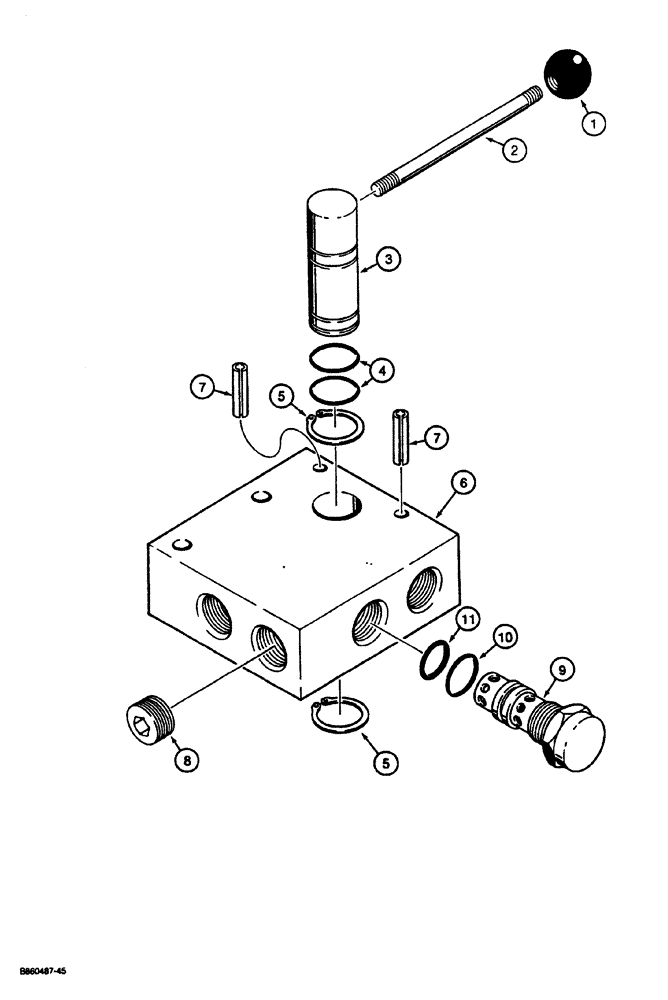

Запчасти Case CASE (8-30) - PLOW CONTROL VALVE (08) - HYDRAULICS

H669168

VALVE

ASSEMBLY control, plow, Hyspeco No. SR-10-20A, Includes: Ref. 1 - 11

1шт.

1

H249839

KNOB

handle

1шт.

2

H249847

HANDLE

valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

4

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

spool seal, Replaces: F62114

2шт.

5

F62020

SNAP RING,#125, Ext

spool, replaces B18206 #125, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

2шт.

8

221-841

PLUG

hex socket head, 1/4" NPT

1шт.

9

H584326

VALVE

relief, control valve

1шт.

10

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

relief valve, large

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

relief valve, small

1шт.
