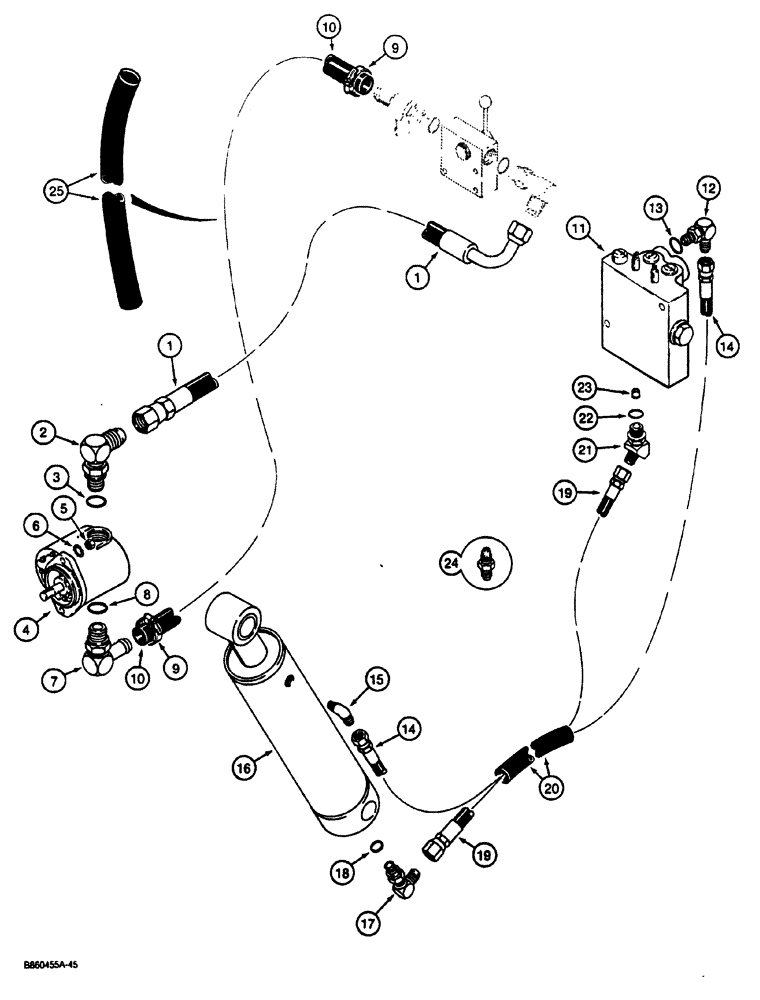

Запчасти Case CASE (8-28) - PLOW HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H256461

HOSE

motor to valve, 33" (838 mm) long

1шт.

2

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW adjustable, 90 degree, Includes: Ref. 3

1шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

4

H672064

MOTOR, HYDRAULIC

ASSEMBLY plow, parts list Figure 8-32

1шт.

5

131-1129

LOCK NUT,7/16"-14, GA

hex, self-locking, plated, 7/16"-14 NC

2шт.

6

193-97

LOCK WASHER,Ext Tooth, 7/16"

2шт.

7

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

stem, adjustable, 90 degree, Includes: Ref. 8

1шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

stem fitting

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

2шт.

10

REF

INSTRUCTION

HOSE plow motor to valve, 3/4" (19 mm) ID x 38" (965 mm) long, cut from H379214 bulk hose, see below

1шт.

11

H656454

VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 5-16

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, Includes Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

14

H433052

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R2

Valve to lift cylinder, 72" (1825 mm) long

1шт.

For plow lift circuit when used with trencher

1шт.

15

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree

1шт.

16

H672060

CYLINDER

ASSEMBLY plow lift, parts list Figure 8-34

1шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 18

1шт.

19

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

Lift Cylinder Head End to Control Valve

1шт.

For plow lift circuit when used with trencher

1шт.

20

H434724

LOOM

SLEEVE hose protector

1шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj., Incl. Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

23

H757815

PORT

RESTRICTOR, "B", plow lift control valve

1шт.

24

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, used to connect Ref. 14 and 19 when plow lift cylinder is not installed

1шт.

25

D131814

SLEEVE

hose protector

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 10

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Elbow

1шт.
